Industrial Gigabit RJ45 Connector 1 Port with LED 180° Vertical Plug

Min. bestelaantal :	1

Plaats van herkomst:	Guangdong, China	Modelnummer:	DGKYD511Q030AC1A8D057

Gedetailleerde informatie
Type:	RJ45	Geslacht:	Vrouwelijk
LED -kleur:	Geel & Groen	Been:	Gouden plating 6U/15U/30U/50U
Woningmateriaal:	PBT-Polyester	Filter:	Met Filter
Klikken:	Omhoog	Aantal poorten:	1 poort
Zet Stijl op:	Door gat	Prestatiessnelheid:	10/100/1000 BASE-T
Opties voor het op de grond zetten:	Comité Grond en PCB-Grond	Terminals per Haven:	8
Schild materiaal:	Koperlegering preplated met Nikkel	Contactparende plating:	Goud 6u Plating
Contactbasismateriaal:	Fosforbrons
Markeren:	Industrial Gigabit RJ45 connector , RJ45 vertical plug with LED , Single port RJ45 connector

Productomschrijving

1x1 Port Industrial Gigabit Shielded RJ45 Connector with LED, 180° Vertical Plug - Communication Socket

High-performance industrial-grade RJ45 connector featuring shielded design, LED indicators, and 180° vertical plug configuration for reliable communication in demanding environments.

Product Specifications

Specification	Details
Part Number	DGKYD511Q030AC1A8D057
Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China
Certification	IATF16949/ISO9001/ISO14001/CE/UL/FCC/Reach/RoHS
Product Type	Connector-Modular
Connector Style	Jack
Jack Type	RJ45
Connector Type	Connector Assembly
Latch Style	Standard
Latch	Up
Filter	With Filter
LED Option	With LED
LED Color	Yellow & Green
Panel Stops	With Panel Stops
Shielded	YES
Applies To	Printed Circuit Board
Performance Speed	10/100/1000 BASE-T
Grounding Options	Panel Ground and PCB Ground
Port Configuration	Single ports
Number of Positions	10
Jack Configuration	1*1
Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel
PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 6u plating
Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel
PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit
Board Lock	With/Without Board Lock
Housing Material	PBT Polyester
Housing Color	Black
Housing Material Temperature	Standard
UL Flammability Rating	UL 94V-0

Product Images

label:

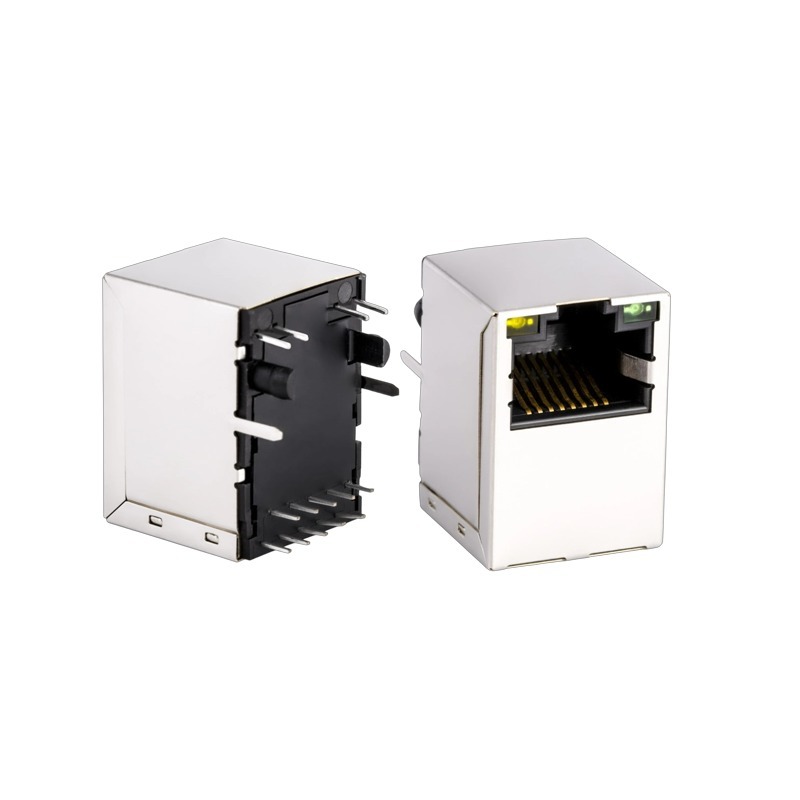

Industrial Gigabit RJ45 Connector 1 Port with LED 180° Vertical Plug

Industrial Gigabit RJ45 connector

RJ45 vertical plug with LED

Single port RJ45 connector
