RJ11 Ethernet port connector 5228 4P4C ear less all plastic DGKYD52281144IWA1DB4078
Contact Persoon : Nicole Zhuo
Telefoonnummer : +86 18925835585
WhatsApp : +8613538542087
| Minimum Order Quantity : | 1 piece | Prijs : | Please contact us to get the latest price. |
|---|---|---|---|
| Packaging Details : | Tray in Carton | Delivery Time : | 10 days |
| Payment Terms : | T/T, D/P, D/A, L/C, Western Union, MoneyGram | Supply Ability : | 100K pcs/day |
| Place of Origin: | DongGuan of China | Merknaam: | DGKYD |
|---|---|---|---|
| Certificering: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | Model Number: | DGKYD52A1188AB1A6D1Y1143 |
|
Gedetailleerde informatie |
|||
| Modular Jack & Plug Interface Type: | RJ45 without transformer | Port Configuration: | Single |
|---|---|---|---|
| Connector Style: | Jack | Gender: | Female |
| Beschermd: | Geen | Housing Material : | LCP Polyester |
| Status Indicator: | Yes | Voice Control: | Google Assistant, Amazon Alexa |
| Display Size: | 52 inches | Kleur: | Zwart |
| Category: | Phone Jacks | Material: | LCP |
| Termination: | DIP | Operation Temperature: | -40°C~+85°C |
| Ethernet: | No | Insetion Type: | Direct insertion |
| Type: | RJ45 | ||
Productomschrijving

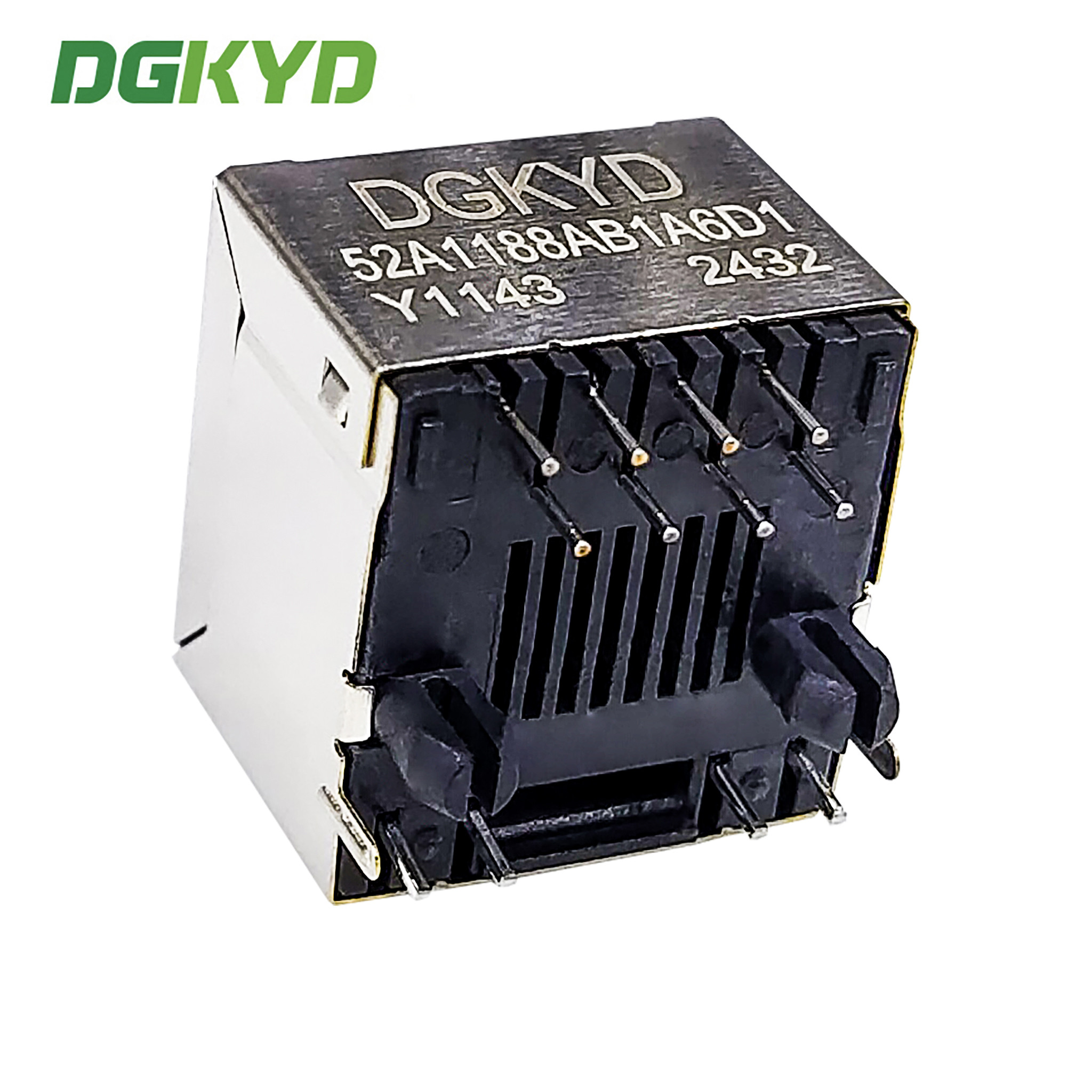

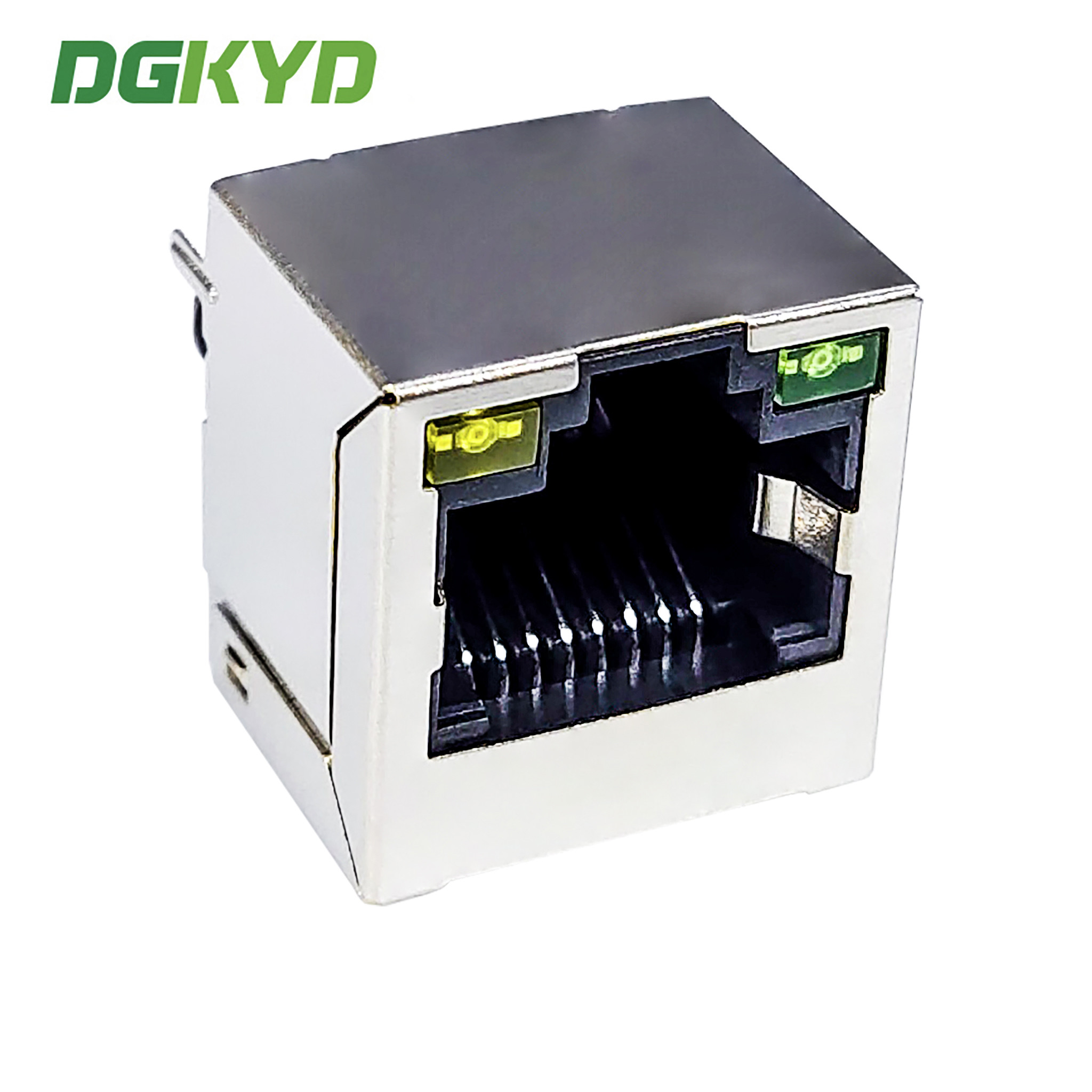

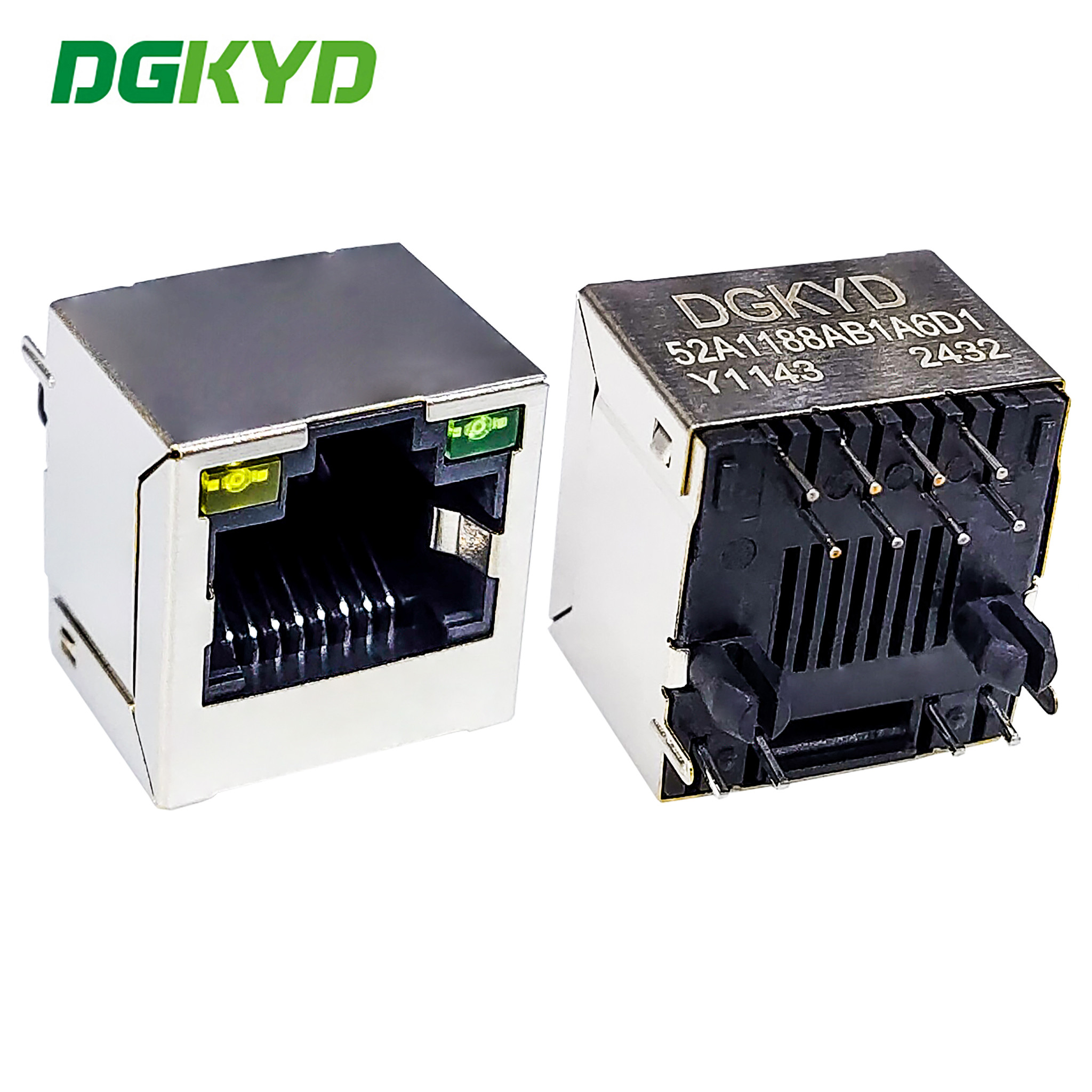

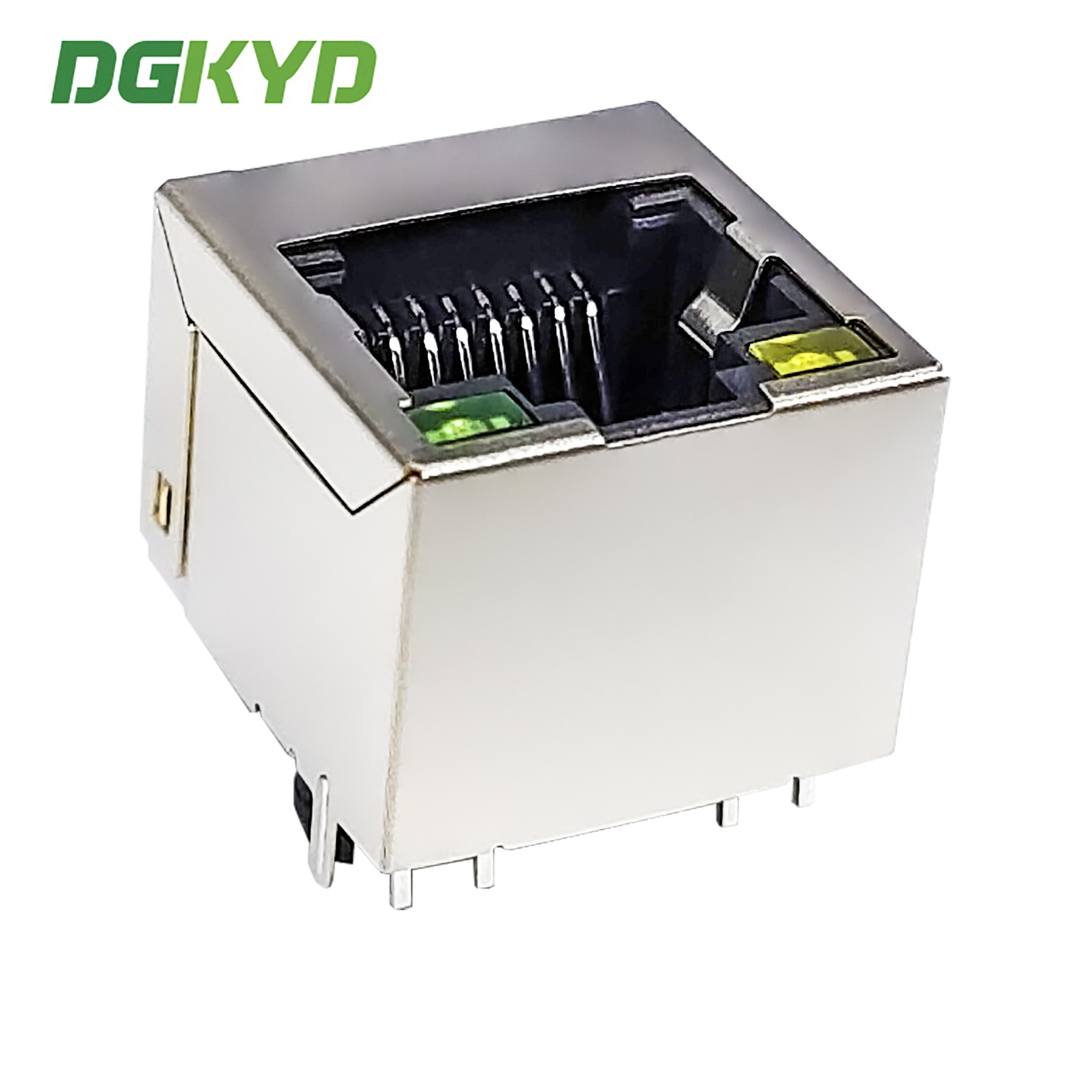

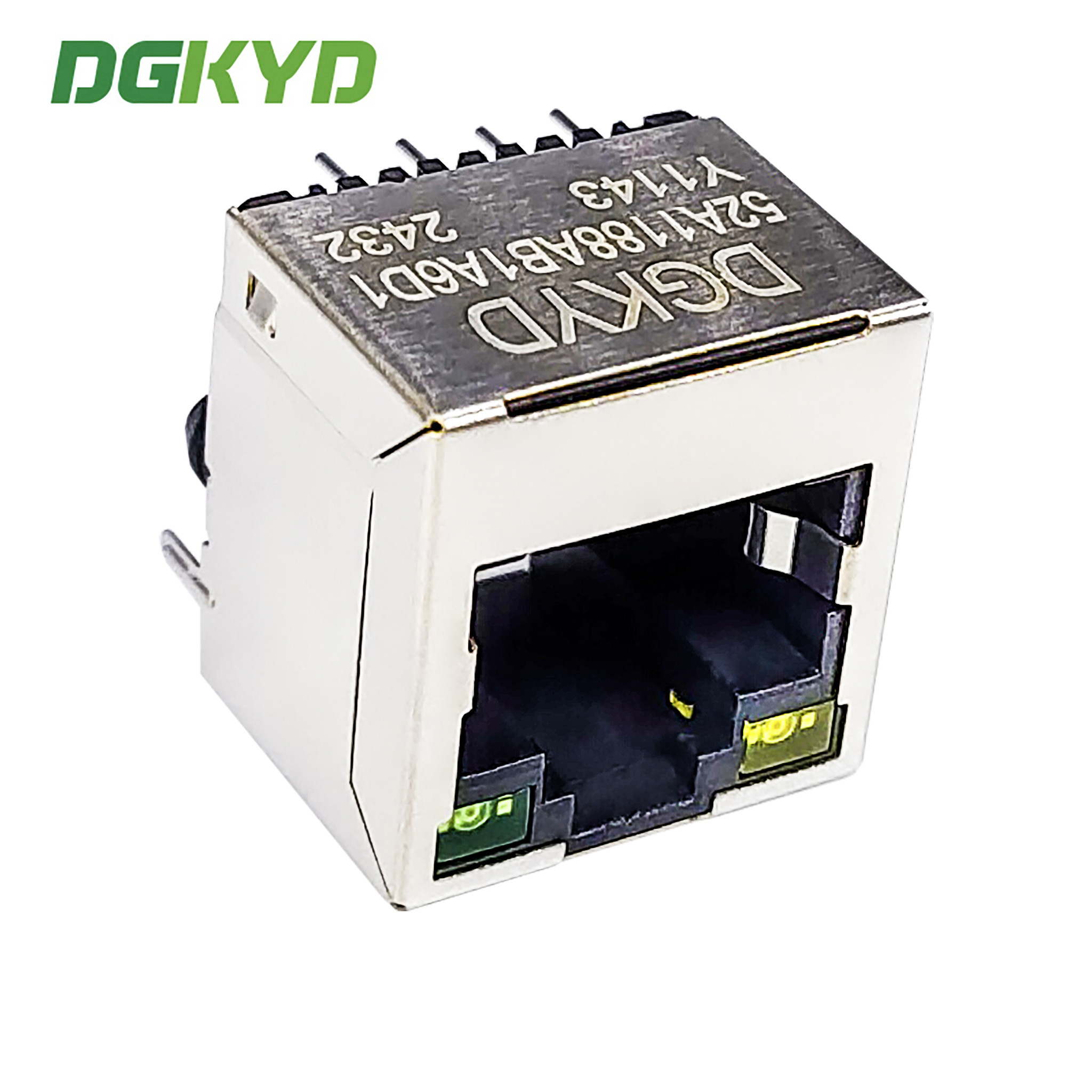

RJ45 without transformer network port socket 8P8C with LED direct insertion vertical RJ45 DGKYD52A1188AB1A6D1Y1143
Product Specification Document
Our strengths:
Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet
Type: RJ45 built in magnetics
Working frequency: high frequency characteristic: filtering, anti-interference
Working temperature: - 40 ℃ - 85 ℃
Storage temperature: - 40 ℃ - 85 ℃
Lead free soldering: wave soldering height up to 265 ℃
Parameters
| Part Number | DGKYD52A1188AB1A6D1Y1143 | Brand | DGKYD/OEM/ODM |
| Place of Origin | Guangdong of China | Certification | RoHS/CE/FCC/CE/ISO9001/ISO14001 |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | TAB-UP |
| Filter | Without Filter | LED Option | With LED |
| LED Color | Yellow/Green | Panel Stops | With Panel Stops |
| Shielded | Yes | Applies To | Printed Circuit Board |
| Performance Speed | 10/100/1000 BASE-T/TX | Suitable for welding type | Reflowsolding(Alternative). |
| Port Configuration | Single Ports | Number of Positions | 8 |
| Jack Configuration | 1X1 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating Material | Gold G/Fu | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
| Housing Material | LCP Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
FAQ:
1. Q: Are you trading company or manufacture?
A: We are manufacture. Welcome to our factory.
2. Q: What about your lead time?
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.
3. Q: Can you provide samples? Are they free?
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.
4. Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
