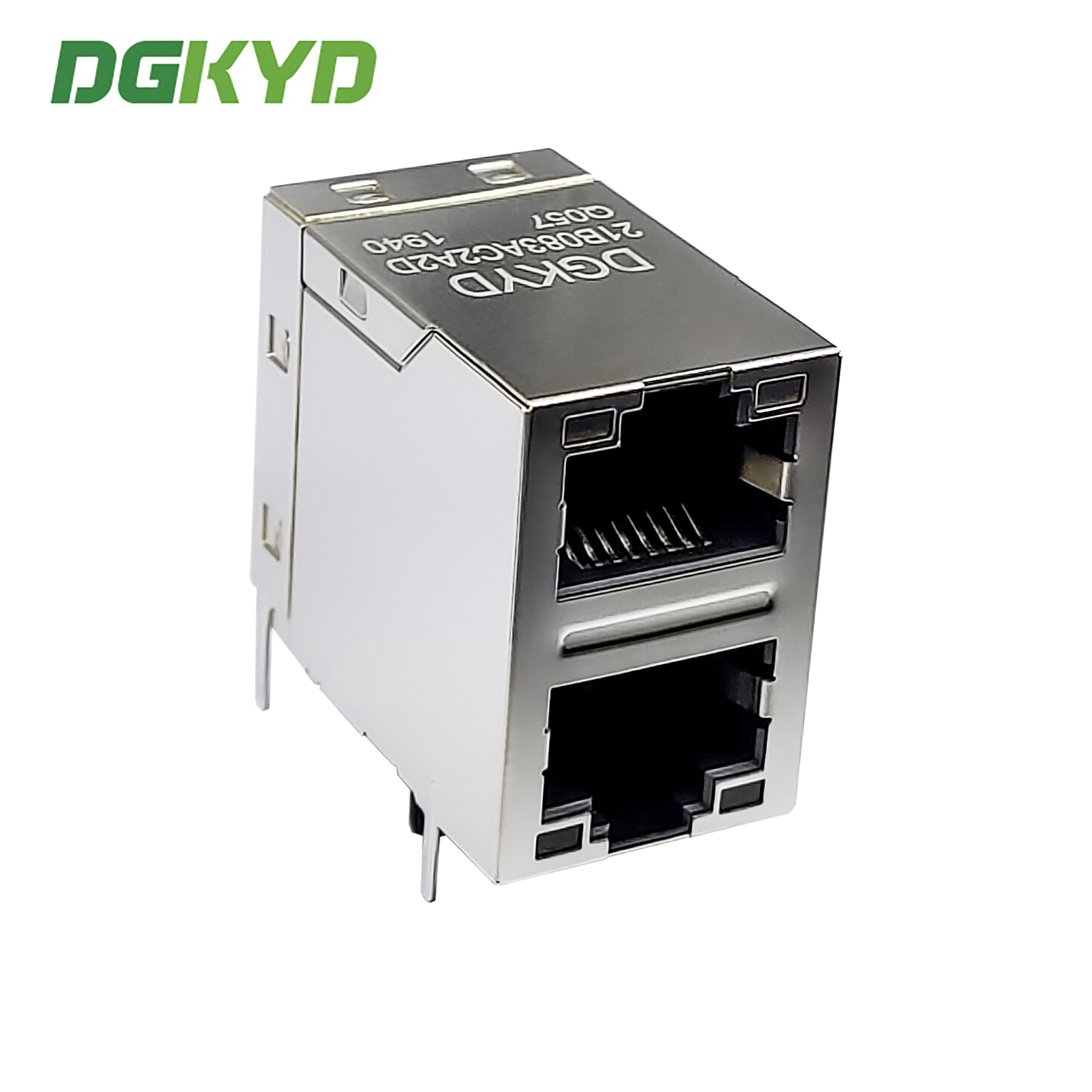

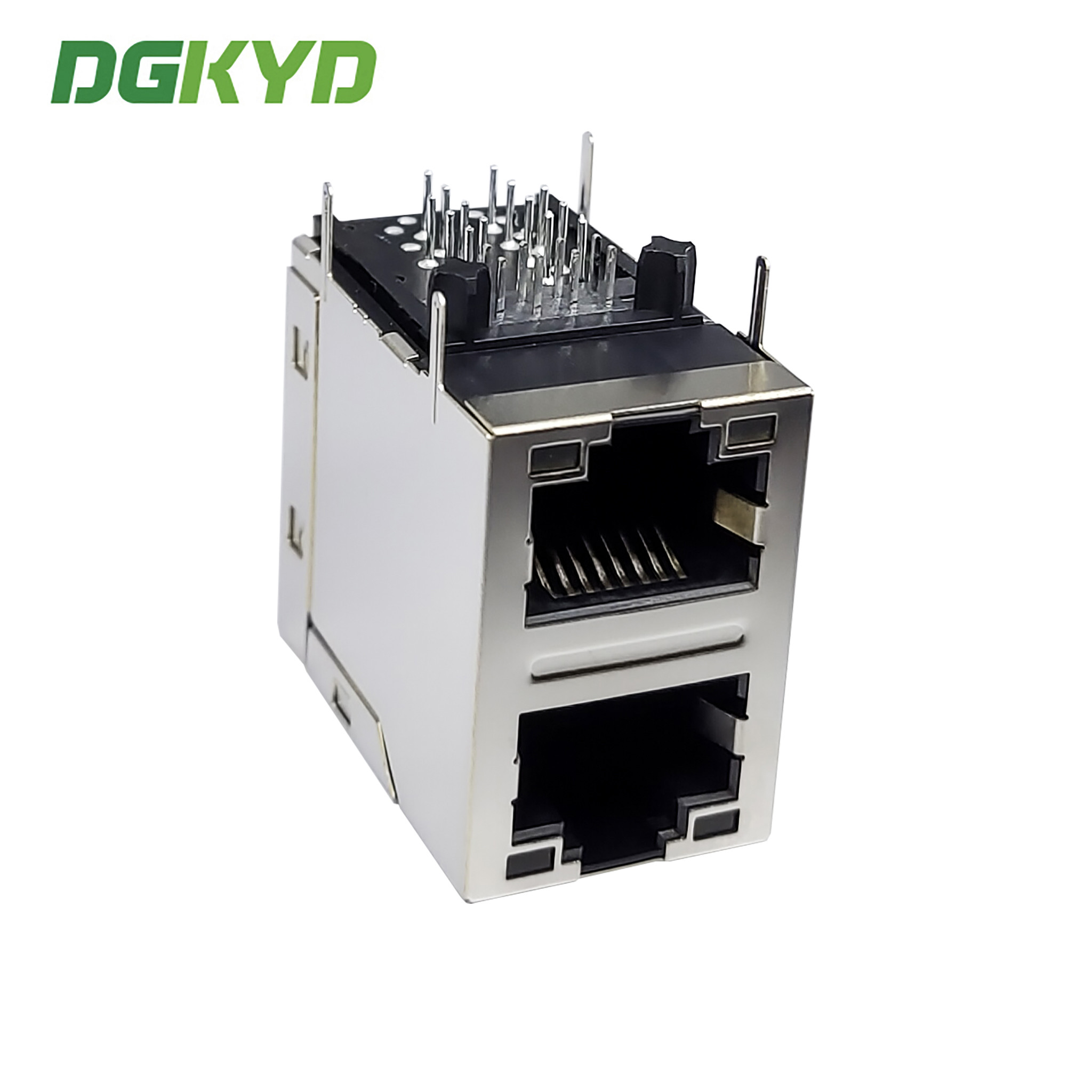

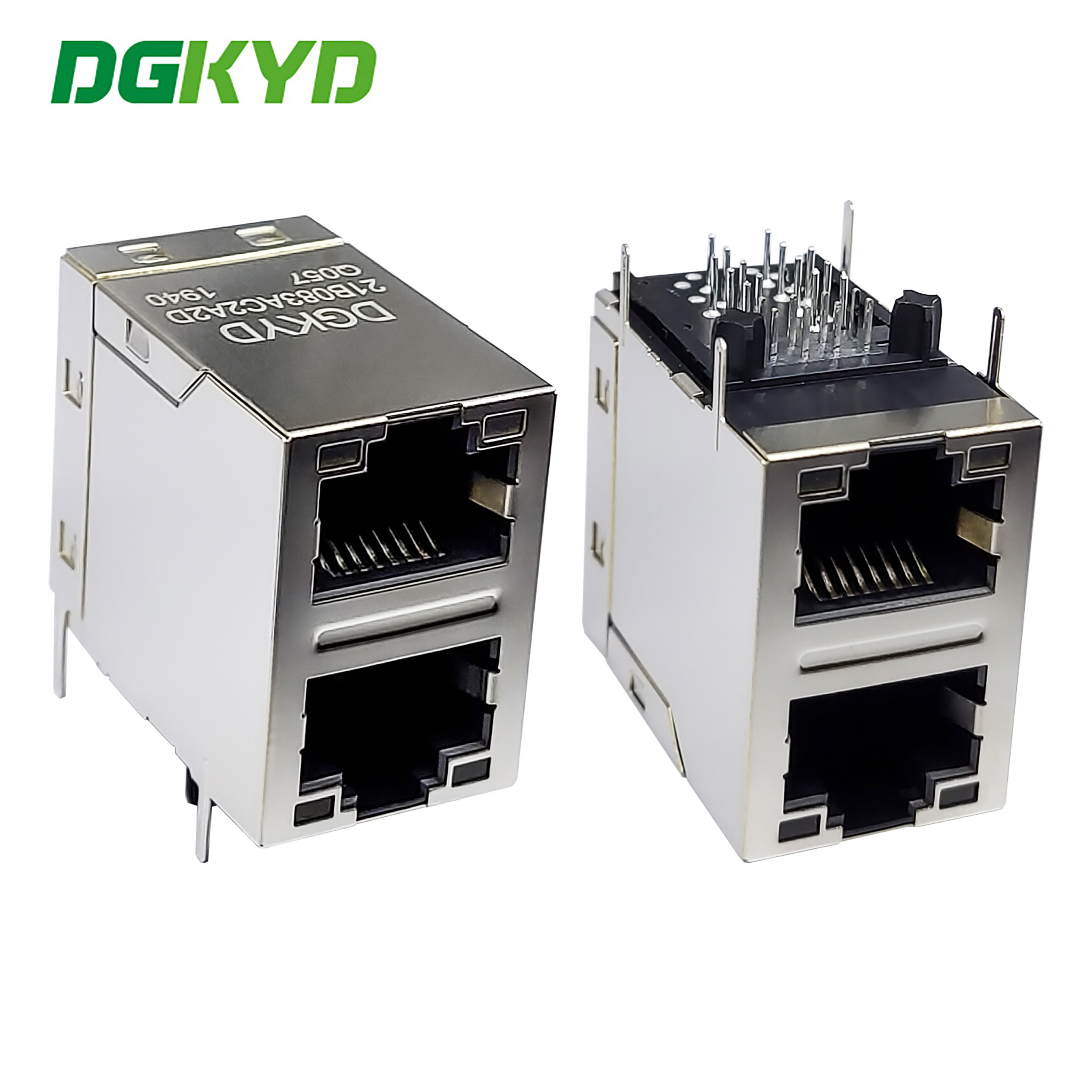

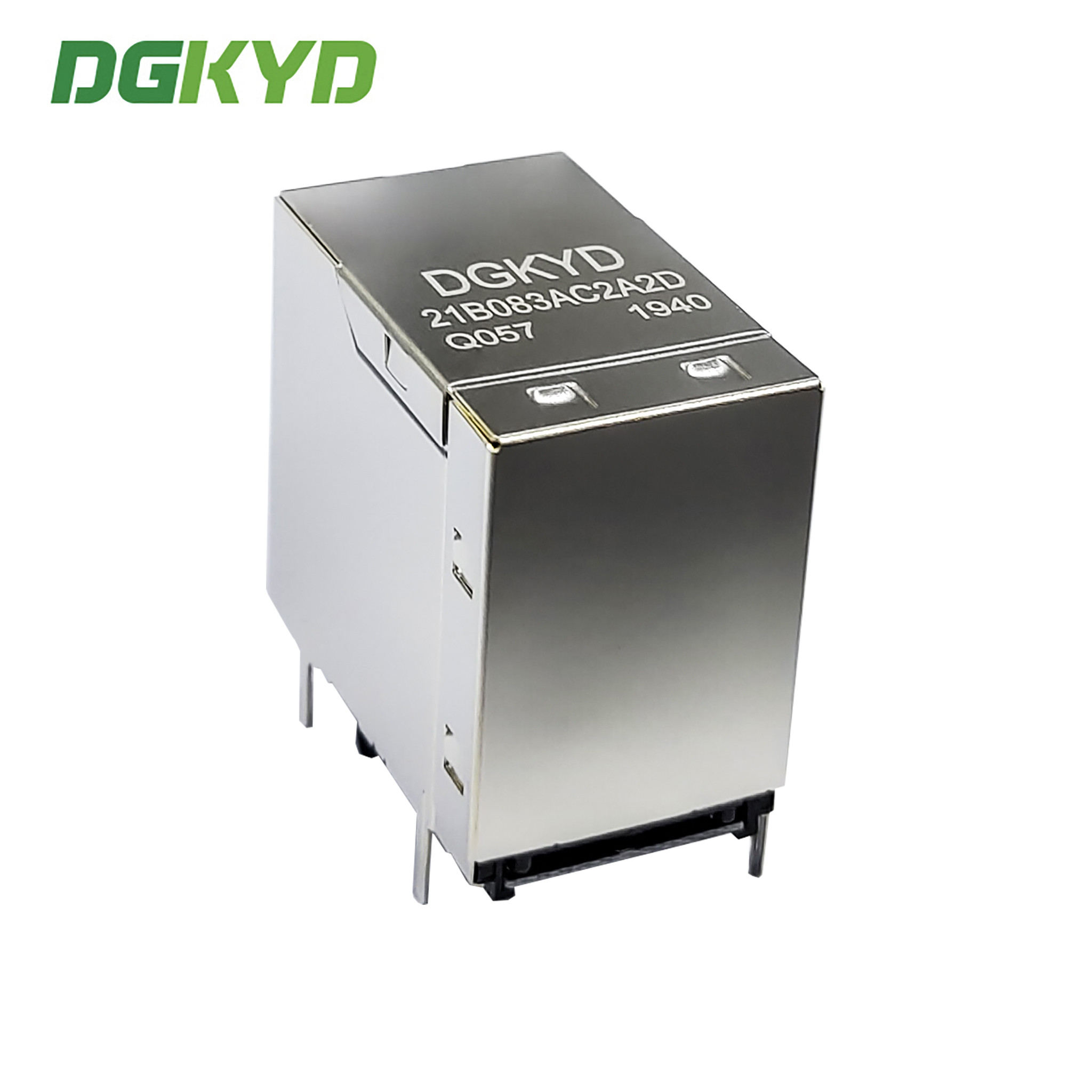

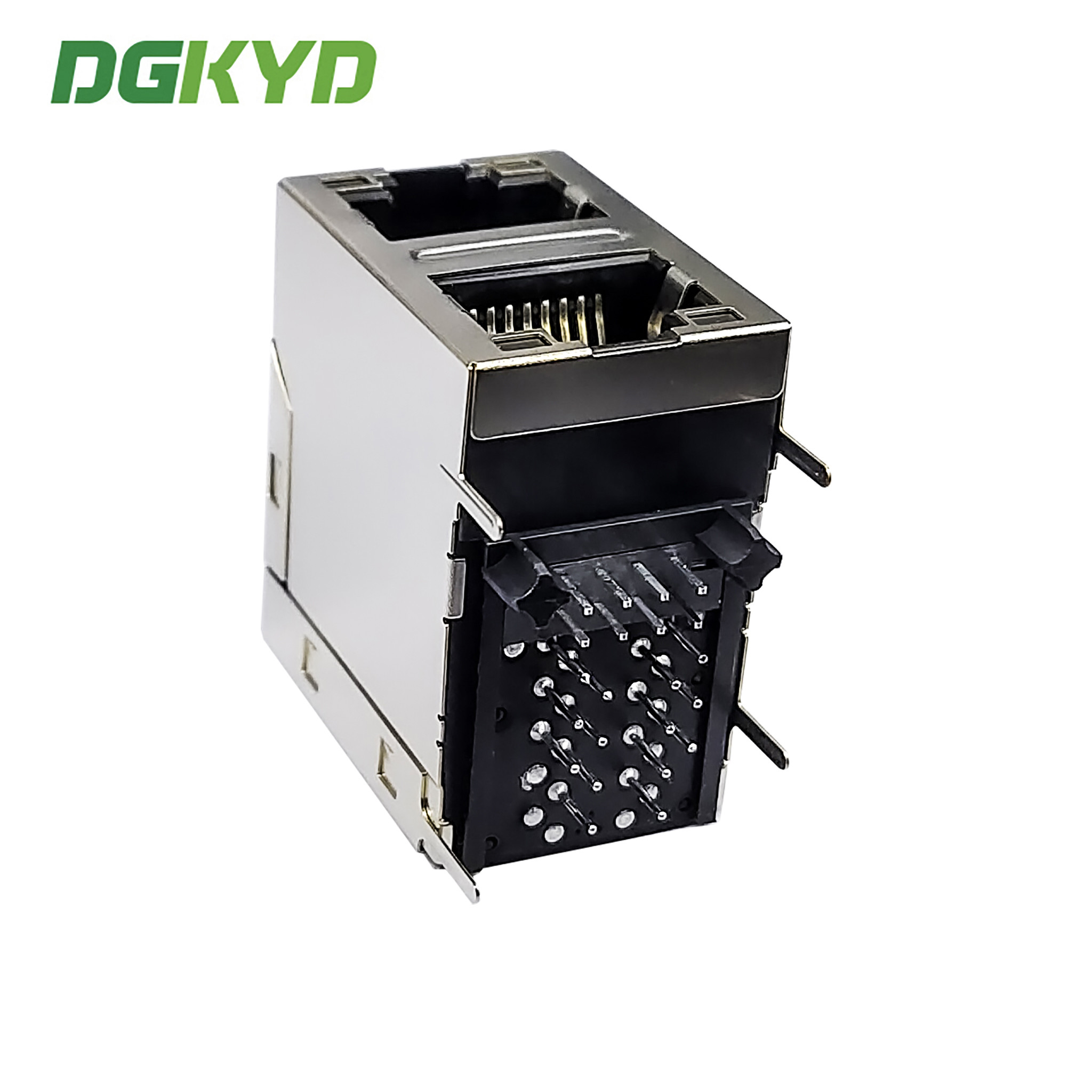

Multi port Ethernet filter RJ45 8P7C 100Mbps connector 6U 2X1 modular socket RJ45 network port connection DGKYD21B083AC2A2DQ057

Min. bestelaantal :	1 stuk	Prijs :	Please contact us to get the latest price.
Verpakking Details :	Tray in karton	Levertijd :	10 dagen
Betalingscondities :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Levering vermogen :	100 000 stuks per dag

Plaats van herkomst:	DongGuan van China	Merknaam:	DGKYD
Certificering:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Modelnummer:	DGKYD21B083AC2A2DQ057

Gedetailleerde informatie
Modulair Hefboom & Stopinterfacetype:	RJ45 met transformator	Havenconfiguratie:	Dubbele haven
Stylus van de connector:	- Jack.	Geslacht:	Vrouwelijke
Beschermd:	- Ja, dat klopt.	Huismateriaal:	PA66 Polyester
Statusindicator:	Groen/geel	Stemcontrole:	Google Assistent, Amazon Alexa
Kleur:	Zwart	Categorie:	Telefoonaansluitingen
Materiaal:	PA66	Beëindiging:	DIP
Operatietemperatuur:	-40°C~+85°C	Ethernet:	100 BASE-T/TX
Insetiontype:	Zijingang	Type:	RJ45
Markeren:	RJ45 2X1 modular socket , 100Mbps RJ45 modular socket , Multi port 2X1 RJ45 connector

Productomschrijving

Multi port Ethernet filter RJ45 8P7C 100Mbps connector 6U 2X1 modular socket RJ45 network port connection DGKYD21B083AC2A2DQ057

Product Specification Document

Our strengths:

Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet

Type: RJ45 built in magnetics

Working frequency: high frequency characteristic: filtering, anti-interference

Working temperature: - 40 ℃ - 85 ℃

Storage temperature: - 40 ℃ - 85 ℃

Lead free soldering: wave soldering height up to 265 ℃

Parameters

Part Number	DGKYD21B083AC2A2DQ057	Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China	Certification	RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-UP/DOWN
Filter	With Filter	LED Option	With LED
LED Color	Grenn-Yellow	Panel Stops	With Panel Stops
Shielded	Yes	Applies To	Printed Circuit Board
Performance Speed	10/100/ BASE-T/TX	Suitable for welding type	Reflowsolding(Alternative).
Port Configuration	Double Ports	Number of Positions	7
Jack Configuration	2X1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 6u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PA66 Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

FAQ:

1. Q: Are you trading company or manufacture?
A: We are manufacture. Welcome to our factory.

2. Q: What about your lead time?
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

3. Q: Can you provide samples? Are they free?
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

4. Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
