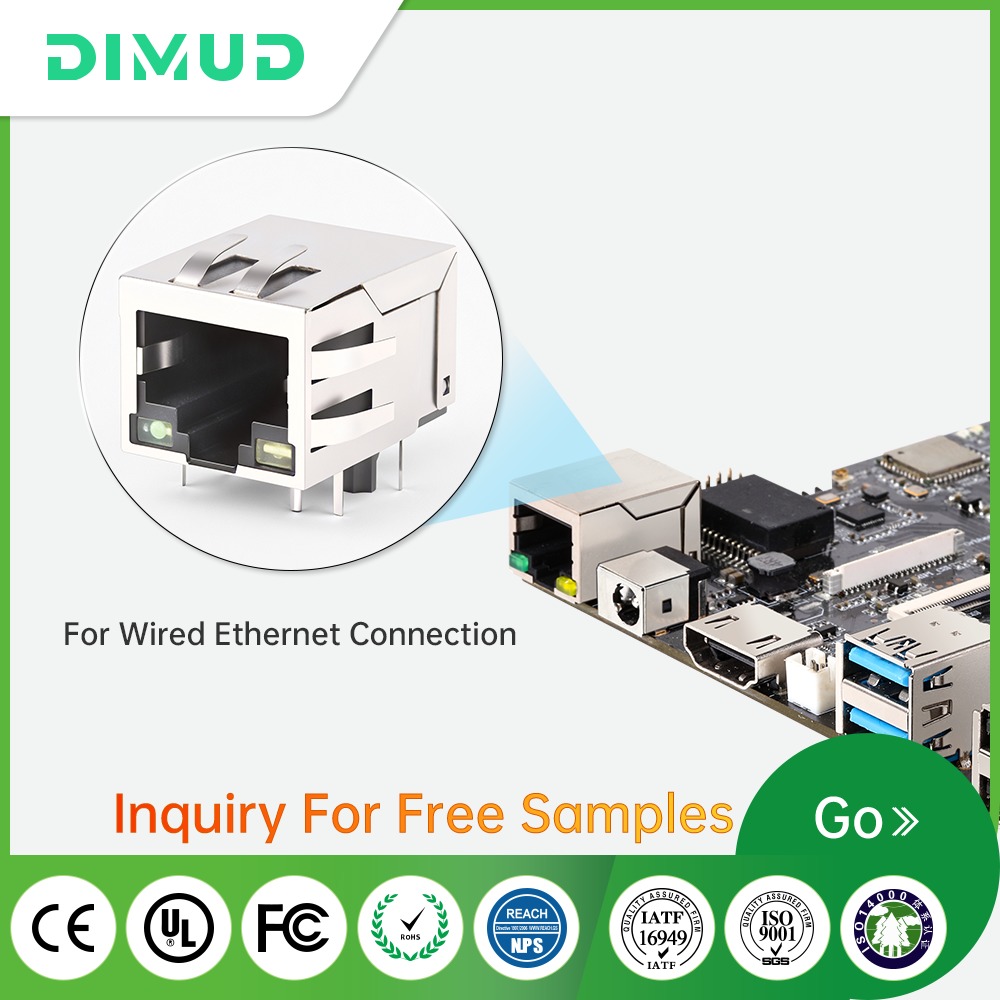

RJ45 Female Connector 180-Degree Vertical with 100Mbps Filter

Min. bestelaantal :	1

Plaats van herkomst:	Guangdong, China	Merknaam:	DGKYD
Modelnummer:	DGKYD511B084AB1A8D

Gedetailleerde informatie
Type connector:	RJ45	Geslacht:	Vrouwelijk
LED -kleur:	geel/groen	Been:	Gouden plating 6U/15U/30U/50U
Woningmateriaal:	PBT-Polyester	Filter:	Met Filter
Klinkstijl:	Standaard	Klikken:	Omhoog
Prestatiessnelheid:	10/100/1000/10G BASE-T	Poortconfiguratie:	enkel
Aantal posities:	8	Terminals per Haven:	8
Schild materiaal:	Koperlegering preplated met Nikkel	De Opzettende Richtlijn van PCB:	Zijingingang (rechte hoek)
Contactbasismateriaal:	Fosforbrons
Markeren:	RJ45 female connector 180-degree vertical , RJ45 connector with 100Mbps filter , single port RJ45 vertical connector

Productomschrijving

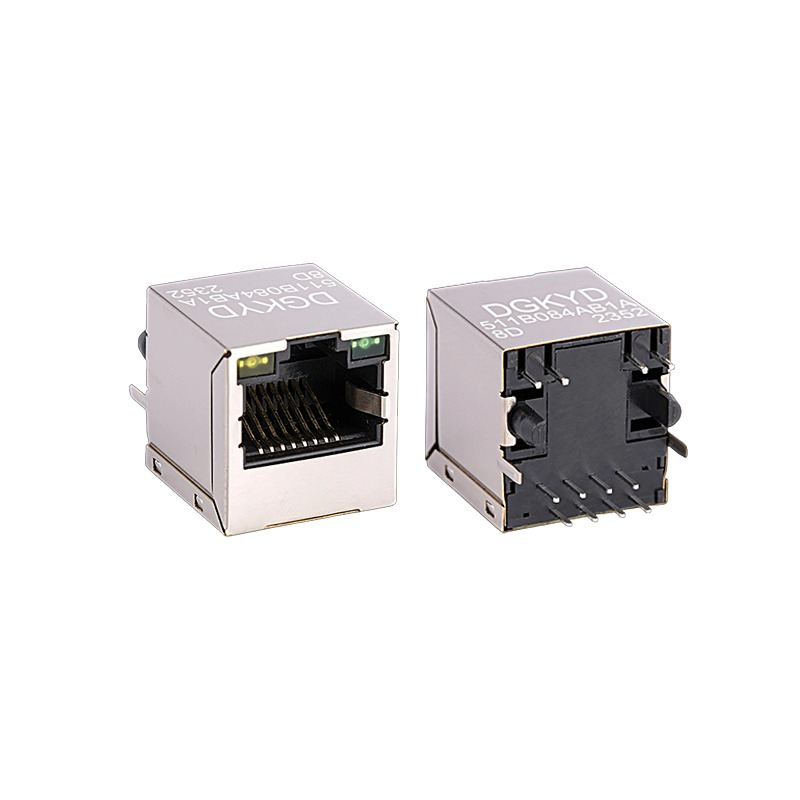

180-Degree Vertical RJ45 Ethernet Connector Jack-Up Orientation with 100Mbps Integrated Filter

Product Specifications

Part Number	DGKYD511B084AB1A8D
Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China
Certification	IATF16949/ISO9001/ISO14001/CE/UL/FCC/Reach/RoHS
Product Type	Connector-Modular
Connector Style	Jack
Jack Type	RJ45
Connector Type	Connector Assembly
Latch Style	Standard
Latch	Up
Filter	With Filter
LED Option	With LED
LED Color	Yellow/Green
Panel Stops	Without Panel Stops
Shielded	Yes
Applies To	Printed Circuit Board
Performance Speed	10/100/1000/10G BASE-T
Grounding Options	Panel Ground and PCB Ground
Port Configuration	Single
Number of Positions	8
Jack Configuration	1 x 1
Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel
PCB Mounting Orientation	Side Entry (Right Angle)

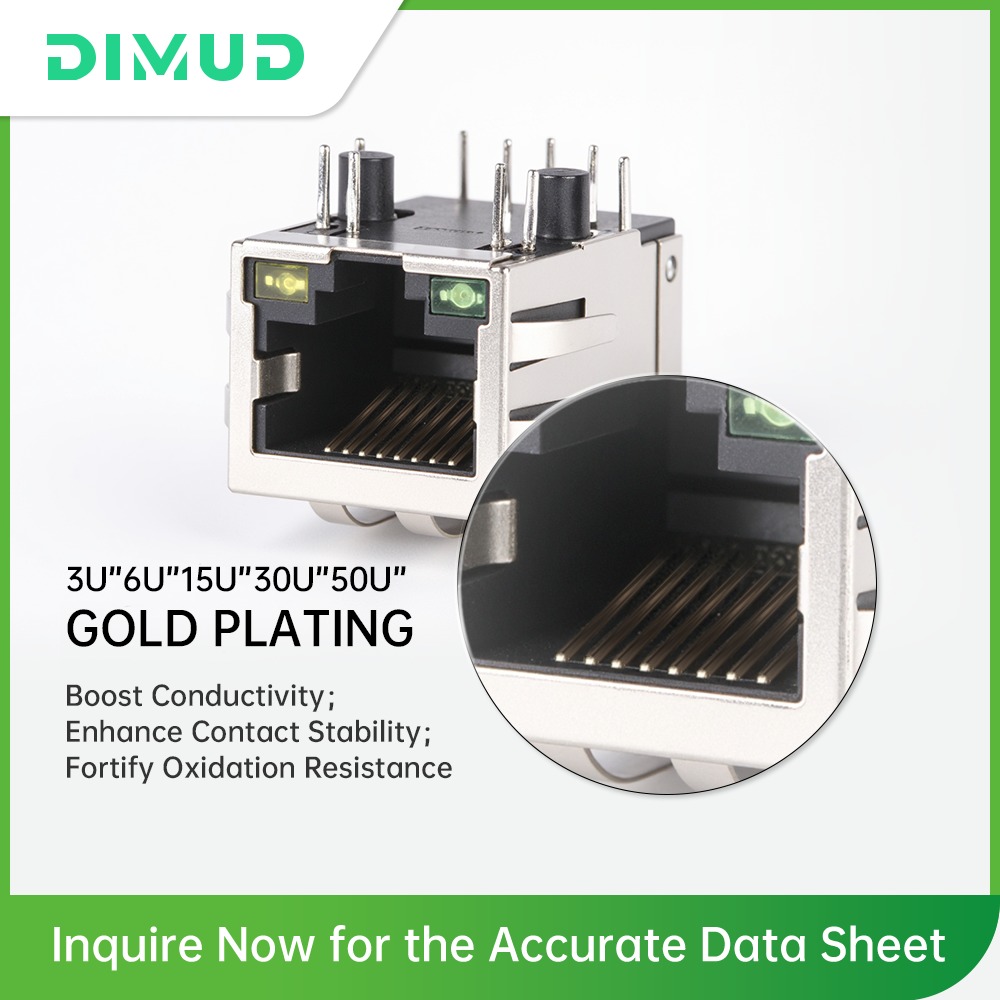

Contact Mating Area Plating Material	Gold 6u/15u/30u/50u
Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel
PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit
Board Lock	With/Without Board Lock
Housing Material	PBT Polyester
Housing Color	Black
Housing Material Temperature	Standard
UL Flammability Rating	UL 94V-0
