Shielded Cat6 RJ45 Female Jack 6u Gold Plating Side Entry

Min. bestelaantal :	1	Prijs :	$1-1.60

Plaats van herkomst:	Guangdong, China	Merknaam:	DGKYD
Modelnummer:	KRJ-300CNL

Gedetailleerde informatie
Type:	RJ45	Geslacht:	Vrouwelijk
Goudplating:	6U/15U/30U/50U voor optioneel	Woningmateriaal:	PBT-Polyester
Interne filter:	Ja	Klinkstijl:	Standaard
Klikken:	Omhoog	Filter:	Met Filter
LED-optie:	Zonder geleid	Afgeschermd:	Ja
Prestatiessnelheid:	1000 basis-T	Poortconfiguratie:	enkel
Aantal posities:	10	Terminals per Haven:	8
Schild materiaal:	Koperlegering preplated met Nikkel
Markeren:	Shielded Cat6 RJ45 female jack , 6u gold plating RJ45 connector , side entry RJ45 single port

Productomschrijving

Shielded Single Port Cat6 RJ45 Ethernet Connector - Side Entry Female Jack with LED & Internal Magnetics Transformer

High-performance shielded RJ45 connector designed for Cat6 Ethernet applications, featuring side entry configuration, LED indicator, and integrated magnetics transformer.

Product Specifications

Part Number	KRJ-300CNL
Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China
Certification	CE /UL/FCC/Reach/RoHS /ISO16949
Product Type	Connector-Modular
Connector Style	Jack
Jack Type	RJ45
Connector Type	Modular Jack
Latch Style	Standard
Latch	Up
Filter	With Filter
LED Option	Without LED
LED Color	N/A
Panel Stops	Without Panel Stops
Shielded	Yes
Applies To	Printed Circuit Board
Performance Speed	1000 BASE-T
Grounding Options	Panel Ground and PCB Ground
Port Configuration	Single
Number of Positions	10
Jack Configuration	1 x 1
Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel
PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 6u
Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel
PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit
Board Lock	Without Board Lock
Housing Material	PBT Polyester
Housing Color	Black
Housing Material Temperature	Standard
UL Flammability Rating	UL 94V-0

Product Images

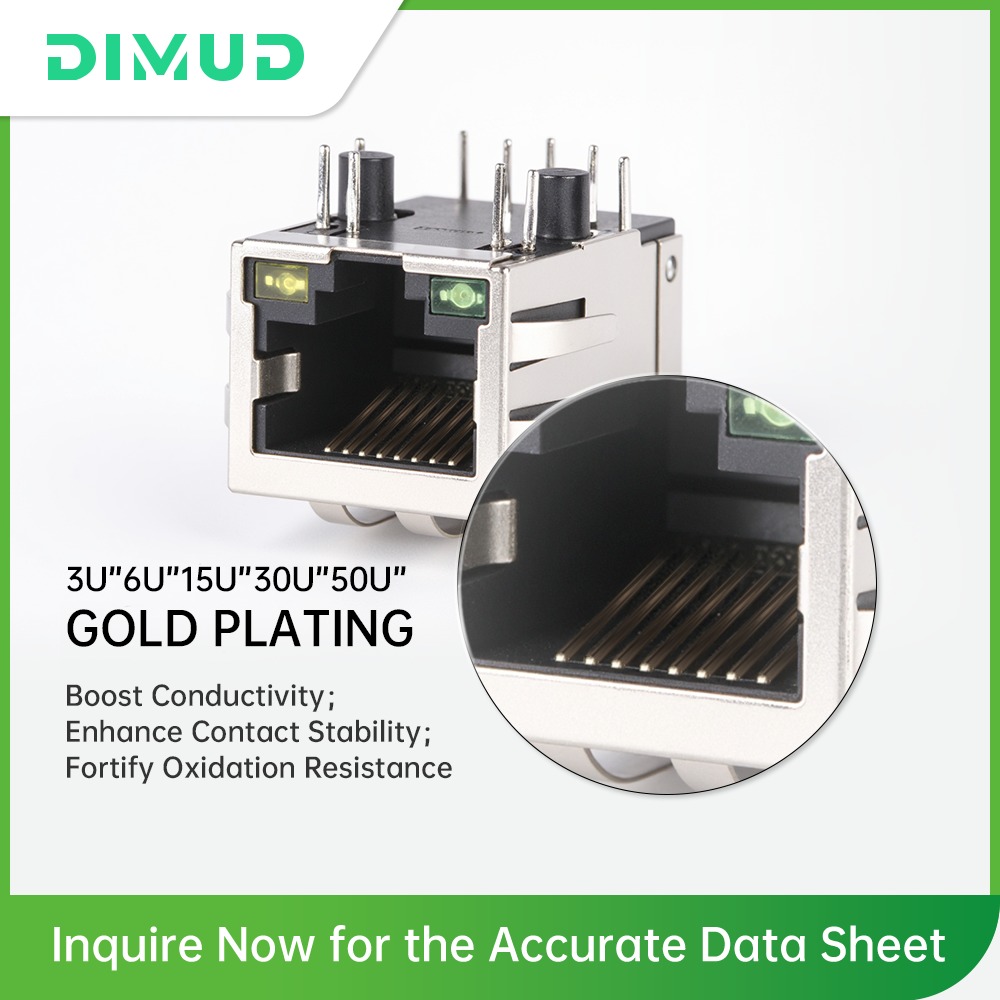

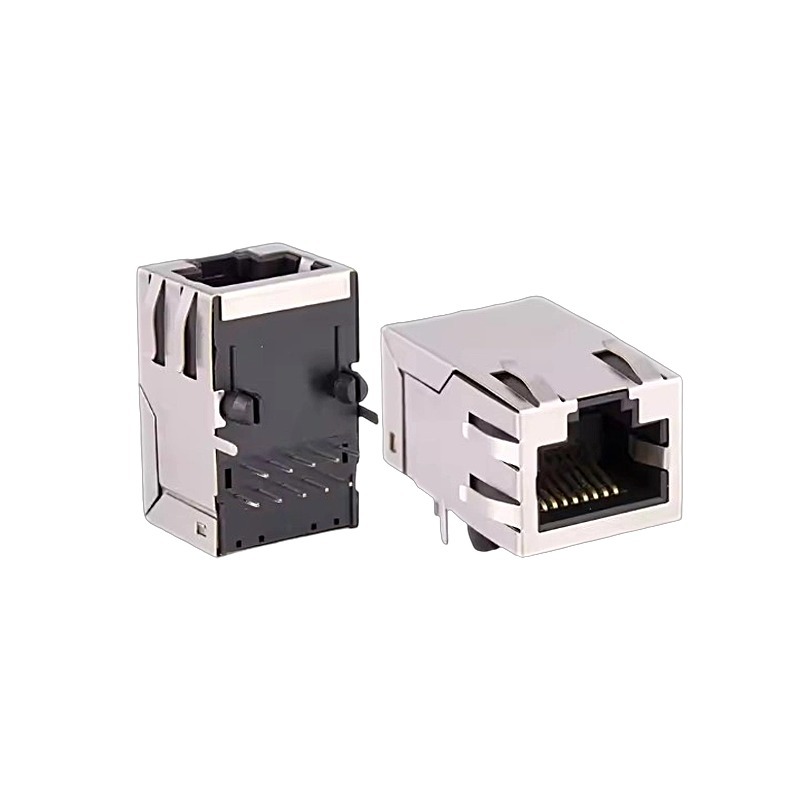

Shielded Cat6 RJ45 Female Jack 6u Gold Plating Side Entry

Shielded Cat6 RJ45 female jack

6u gold plating RJ45 connector

side entry RJ45 single port
