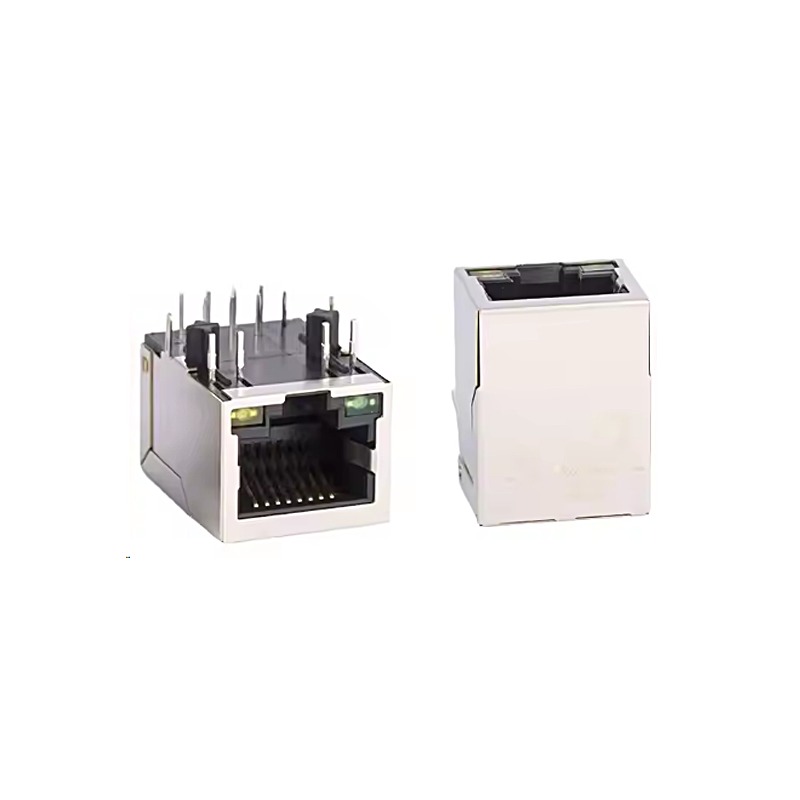

Industrial RJ45 Female Connector 10/100 Base-T with LED 8P8C

Min. bestelaantal :	1	Prijs :	$0.51-0.85

Plaats van herkomst:	Guangdong, China	Merknaam:	DGKYD
Modelnummer:	KRJ-406CNL

Gedetailleerde informatie
Type:	RJ45	Geslacht:	Vrouwelijk
Woningmateriaal:	PBT-ZWARTE	Contact opnemen:	Goud 6u ''
Schild materiaal:	Koperlegering preplated met Nikkel	LED-optie:	Met LED
LED -kleur:	Groen & Geel	Aantal contacten:	8
Transformatoroptie:	Met Transformator	Prestatiessnelheid:	10/100 basis-T
Poortconfiguratie:	enkel	Beëindigingsmethode:	Door gat-press-fit
Montagestijl:	Door gat	Montage -oriëntatie:	Zijingingang (rechte hoek)
UL brandbaarheidsclassificatie:	UL 94V-0
Markeren:	Industrial RJ45 female connector with LED , 8P8C RJ45 connector 10/100 Base-T , Single port RJ45 connector with warranty

Productomschrijving

Industrial Grade 10/100 Base T Ethernet Connectors

Surface Mount CAT5E RJ45 Female Connector with LEDs and Integrated Magnetics PCB

High-performance industrial-grade RJ45 connector designed for 10/100 BASE-T Ethernet applications. Features integrated magnetics, LED indicators, and robust construction for reliable operation in demanding environments.

Product Specifications

Part Number	KRJ-406CNL
Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China
Certification	ISO16949/ISO9001/ISO14001/CE/UL/FCC/Reach/RoHS
Product Type	Connector-Modular
Connector Style	Jack
Jack Type	RJ45
Connector Type	Modular Jack
Latch Style	Standard
Latch	Down
Filter	With Filter
LED Option	With LED
LED Color	Green & Yellow
Shielded	Yes
Performance Speed	10/100 BASE-T
Port Configuration	Single
Number of Positions	8
Shield Material	Copper Alloy preplated with Nickel
Contact Mating Area Plating Material	Gold 6u/15u/30u/50u for optional
Contact Base Material	Phosphor Bronze
Housing Material	PBT Polyester
UL Flammability Rating	UL 94V-0

Product Images

label:

Industrial RJ45 Female Connector 10/100 Base-T with LED 8P8C

Industrial RJ45 female connector with LED

8P8C RJ45 connector 10/100 Base-T

Single port RJ45 connector with warranty
