KRJ-72A75MMNL SMT Ethernet socket RJ45 without transformer sink type communication interface

Min. bestelaantal :	1 stuk	Prijs :	Please contact us to get the latest price.
Verpakking Details :	Lade in doos	Levertijd :	10 dagen
Betalingscondities :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Levering vermogen :	100k pc's/dag

Plaats van herkomst:	Dongguan van China	Merknaam:	DGKYD
Certificering:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Modelnummer:	KRJ-72A75MMNL

Gedetailleerde informatie
Poortconfiguratie:	enkel	Connectorstijl:	Rooster
Geslacht:	Vrouwelijk	Prestatiecategorie:	Cat3
Transformator:	Geen	Hoogteprofiel:	extra laag profiel
Aantal posities/contacten:	8P8c (RJ45, Ethernet)	Zet Stijl op:	SMT
Gouden plating op contactpennen:	G/Fu	Opslagtemperatuur:	-40 ° C ~+85 ° C
Bedrijfstemperatuur:	-40 ° C ~+85 ° C
Markeren:	SMT Ethernet socket RJ45 , RJ45 communication interface without transformer , sink type RJ45 socket

Productomschrijving

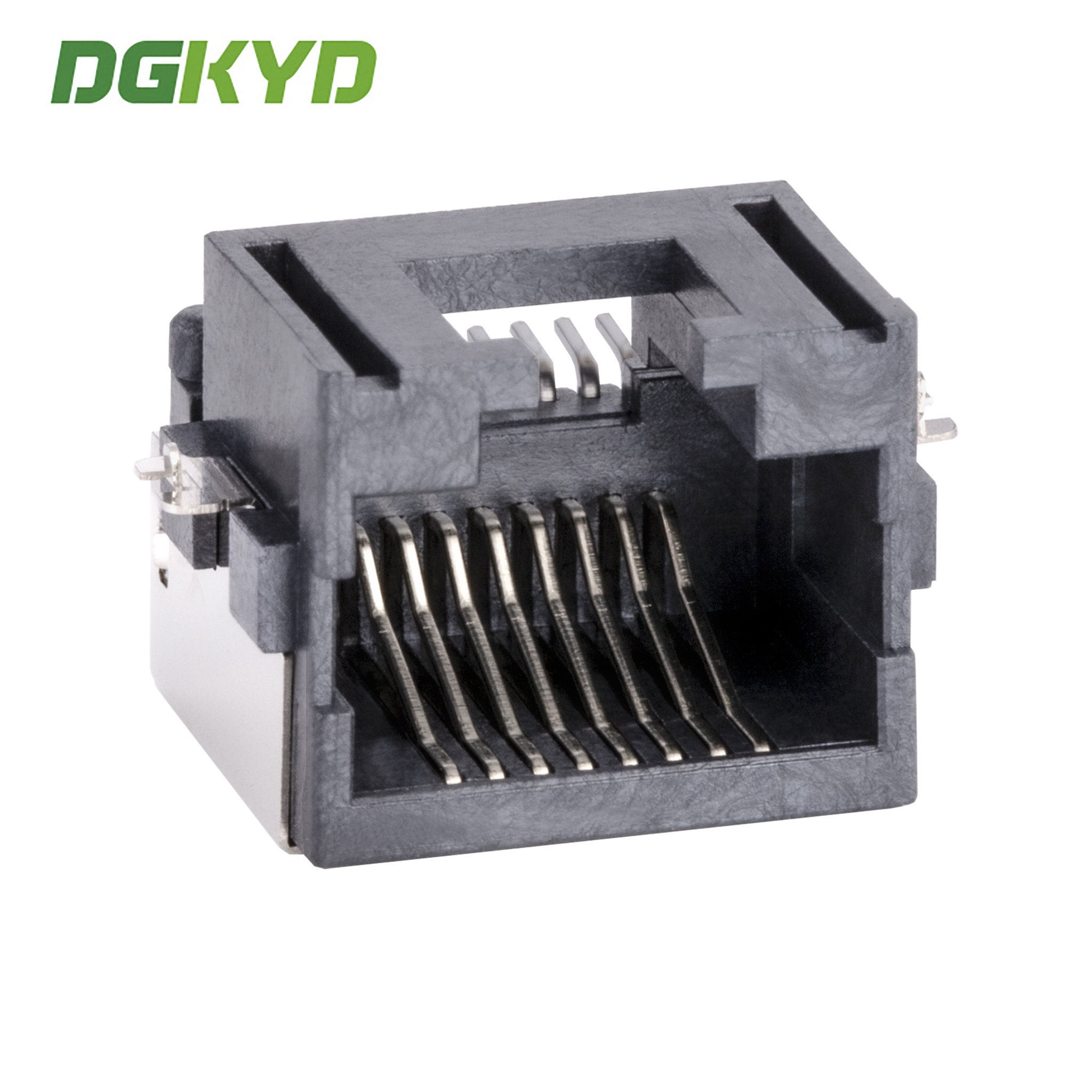

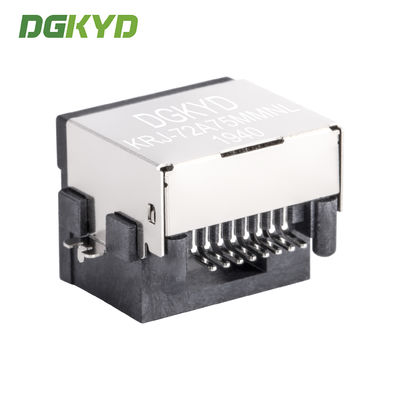

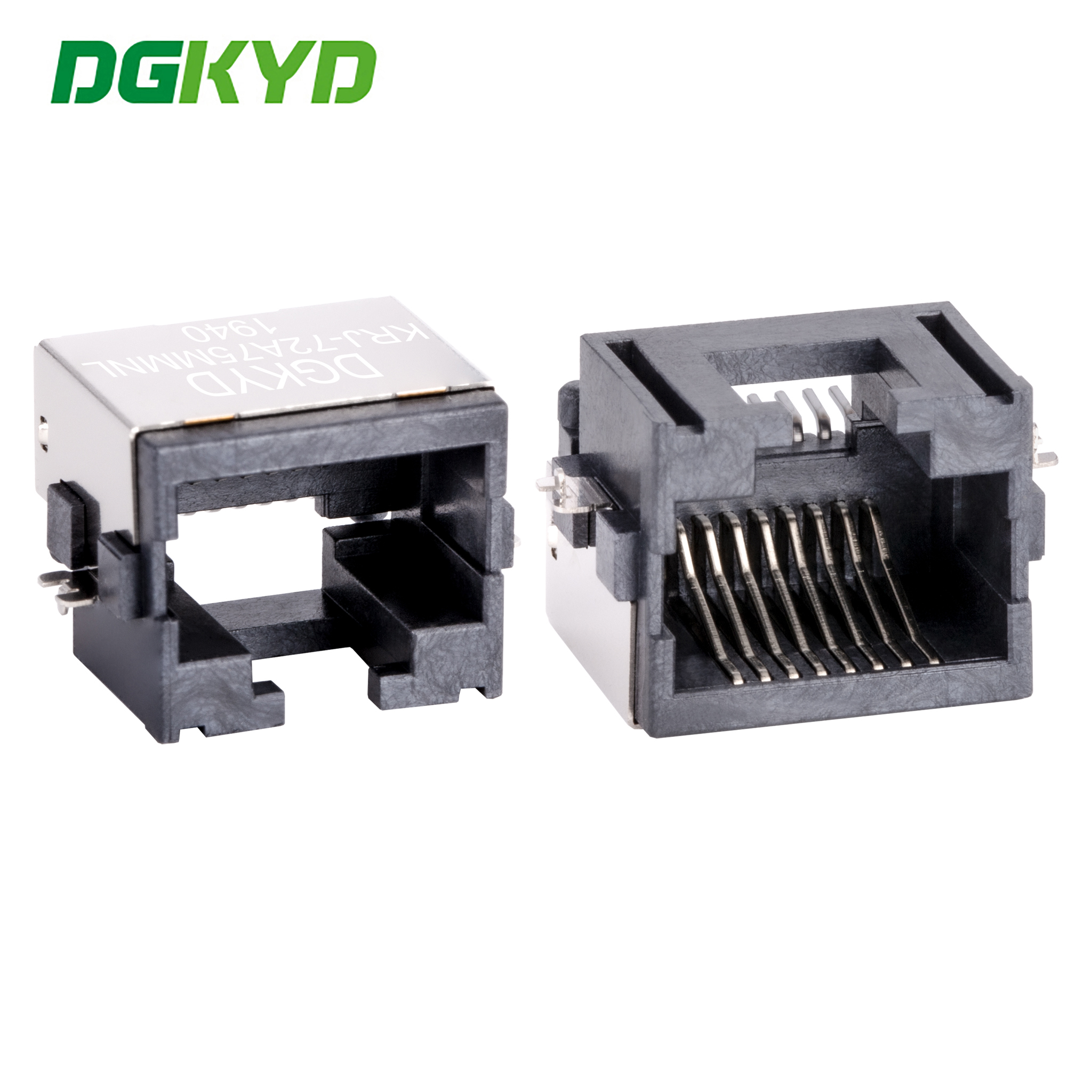

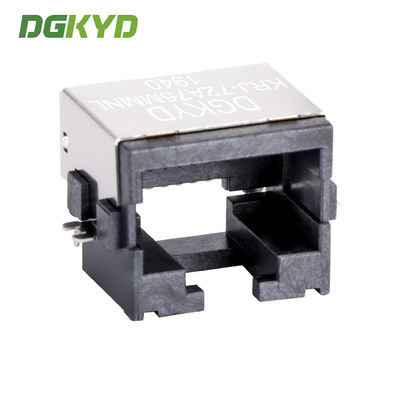

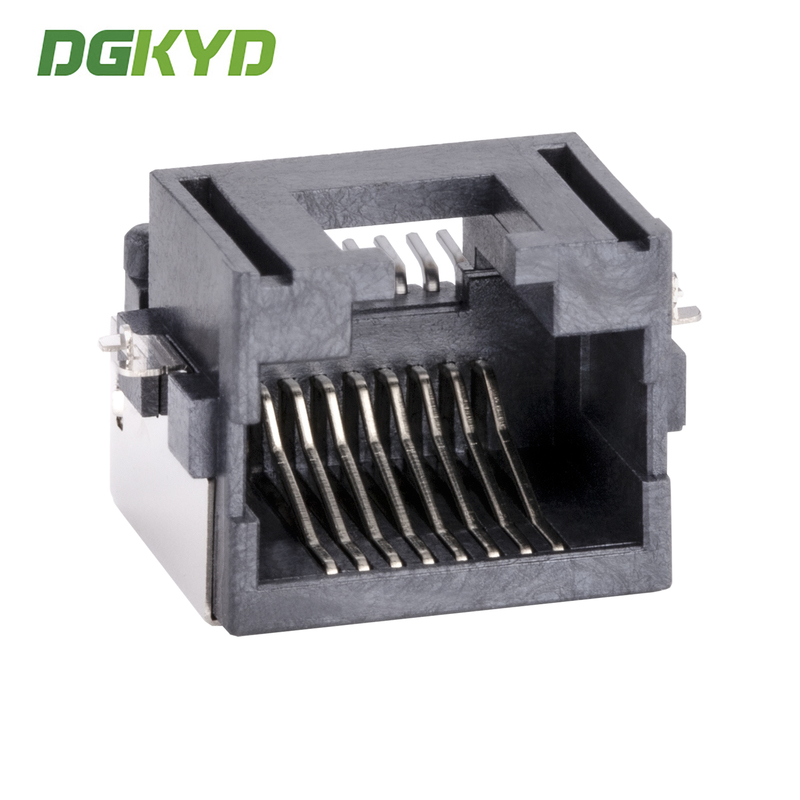

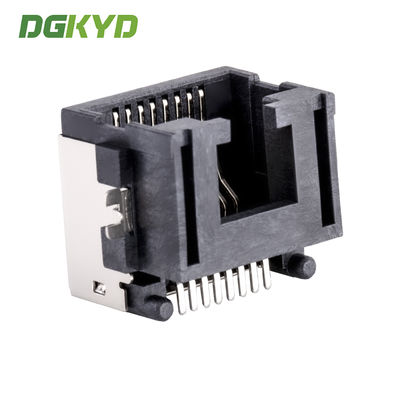

KRJ-72A75MMNL SMT Ethernet socket RJ45 without transformer sink type communication interface

Product Description

Shield Right Angle Extra Low Profile Rj45 Ethernet Connector, 8p8c Jack SMD KRJ-72A75MMNL

Product Specification Document

Parameters

Part Number	KRJ-72A75MMNL	Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-DOWN
Filter	Without Filter	LED Option	Without LED
LED Color	No	Panel Stops	With Panel Stops
Shielded	With metal shield	Applies To	Printedout Circuit Board
Port Configuration	SIngle Ports	Number of Positions	8
Jack Configuration	1X1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold G/Fu	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	LCP Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

Our Strengths

Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet
Type: RJ45 built in magnetics
Working frequency: high frequency characteristic: filtering, anti-interference
Working temperature: -40℃ - 85℃
Storage temperature: -40℃ - 85℃
Lead free soldering: wave soldering height up to 265℃

RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply

Business mode: Manufacturer
Delivery time: on time delivery, around two weeks.
Specs for choices: LED indicator light(green, yellow, red, orange, blue, bi-color LED) Shield with EMI fingers or not coil ratio of magnetic core magnetics circuit diversification optional contact gold plating (FU, 3U, 6U, 15u, 30U, 50U) plastic housing material (PBT,PA46,PA9T, LCP)
The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!

Q: Are you trading company or manufacture?

A: We are manufacture. Welcome to our factory.

Q: What about your lead time?

A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

Q: Can you provide samples? Are they free?

A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

Q: Can I put my own logo on it?

A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.

label:

KRJ-72A75MMNL SMT Ethernet socket RJ45 without transformer sink type communication interface

SMT Ethernet socket RJ45

RJ45 communication interface without transformer

sink type RJ45 socket
