5621 Half Package Shielded Connector RJ11 Network Interface Round Pin DGKYD56211166GWA1D1Y4B

Contact nu

5621 Half Package Shielded Connector RJ11 Network Interface Round Pin DGKYD56211166GWA1D1Y4B

Min. bestelaantal :	1 stuk	Prijs :	Please contact us to get the latest price.
Verpakking Details :	Lade in doos	Levertijd :	10 dagen
Betalingscondities :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Levering vermogen :	100k pc's/dag

Plaats van herkomst:	Dongguan van China	Merknaam:	DGKYD
Certificering:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Modelnummer:	DGKYD56211166GWA1D1Y4B

Gedetailleerde informatie
categorie:	Modulaire Hefbomen	Componenttype:	PCB -aansluiting
Type:	RJ11	Magnetisch:	Geen
Prestatiecategorie:	kat 3 5	Insetiontype:	Zijingang
Zet Stijl op:	Dompel	OEM/ODM:	Ja
Aantal posities/contacten:	6P6c (RJ11, Ethernet)	Gouden plating op contactpennen:	6U
Opslagtemperatuur:	-40 ° C ~+85 ° C	Bedrijfstemperatuur:	-40 ° C ~+85 ° C
Markeren:	RJ11 shielded connector , RJ11 network interface round pin , RJ11 jack with warranty

Productomschrijving

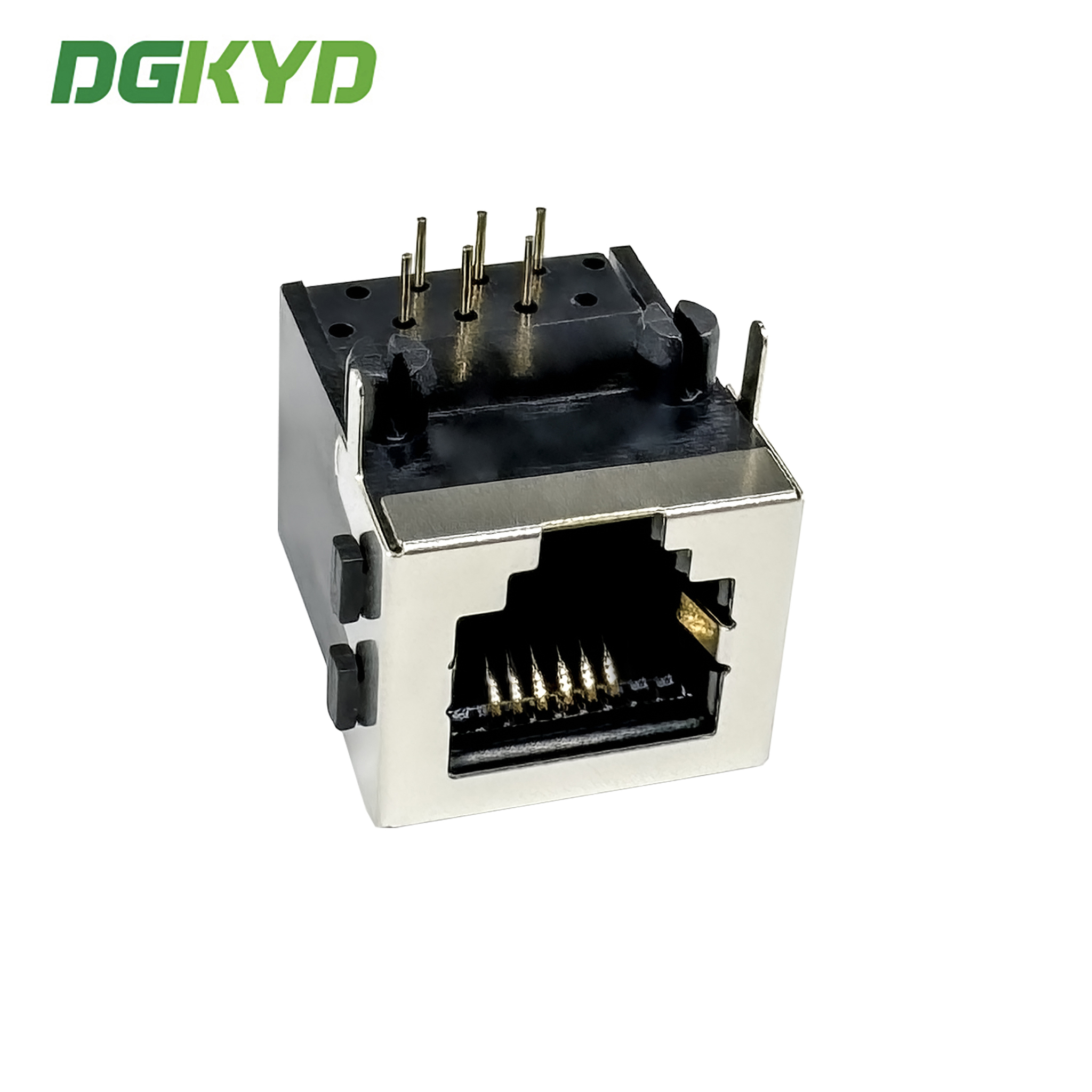

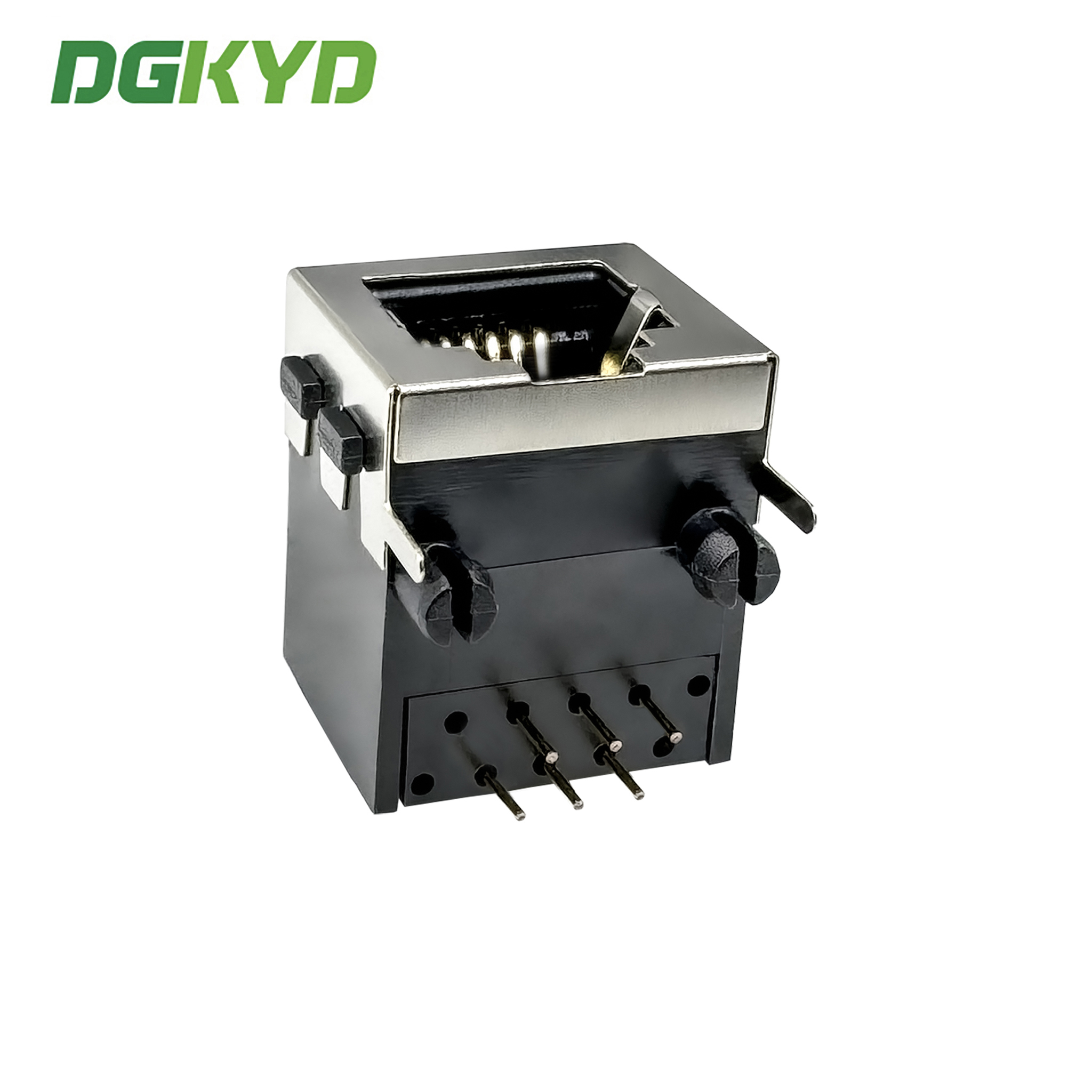

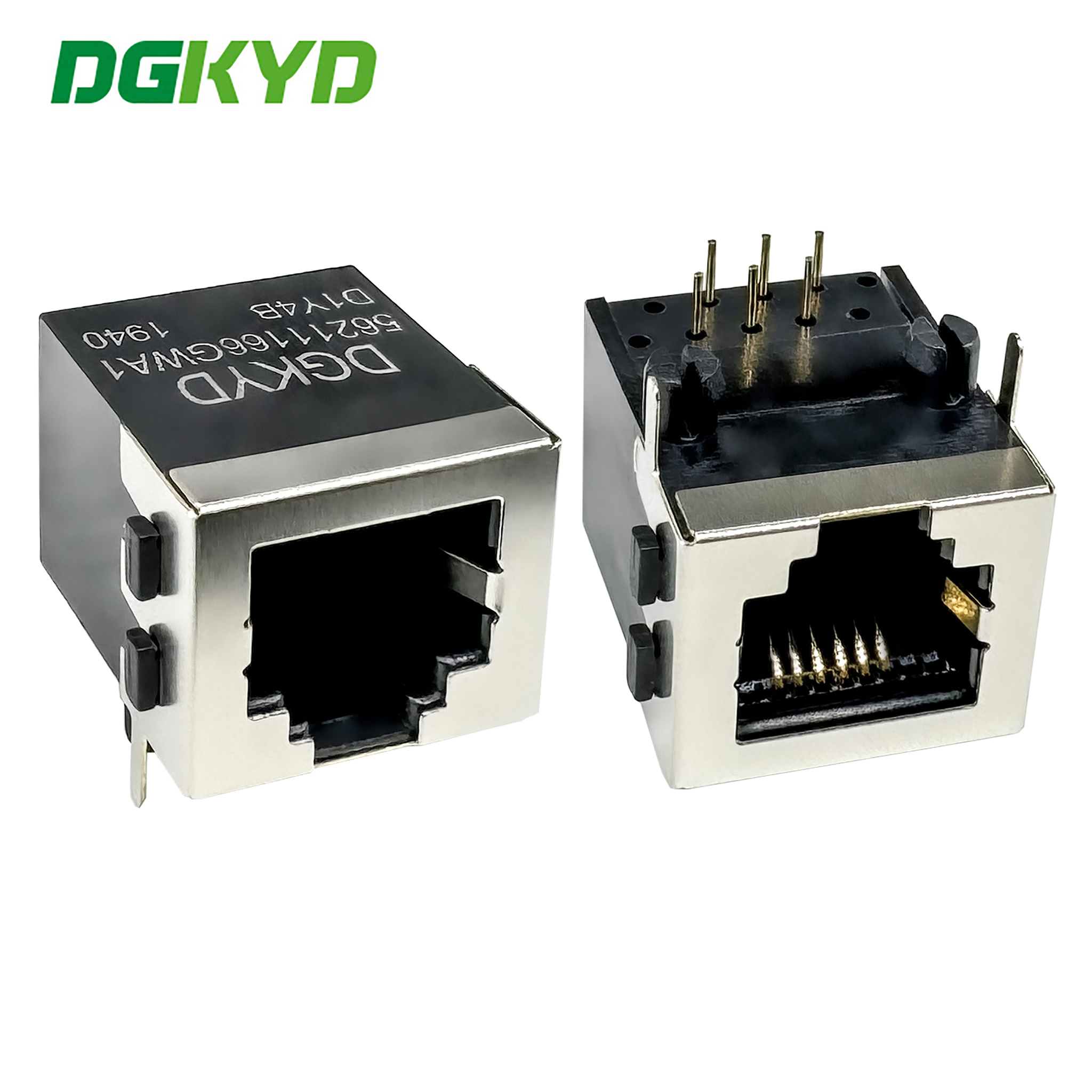

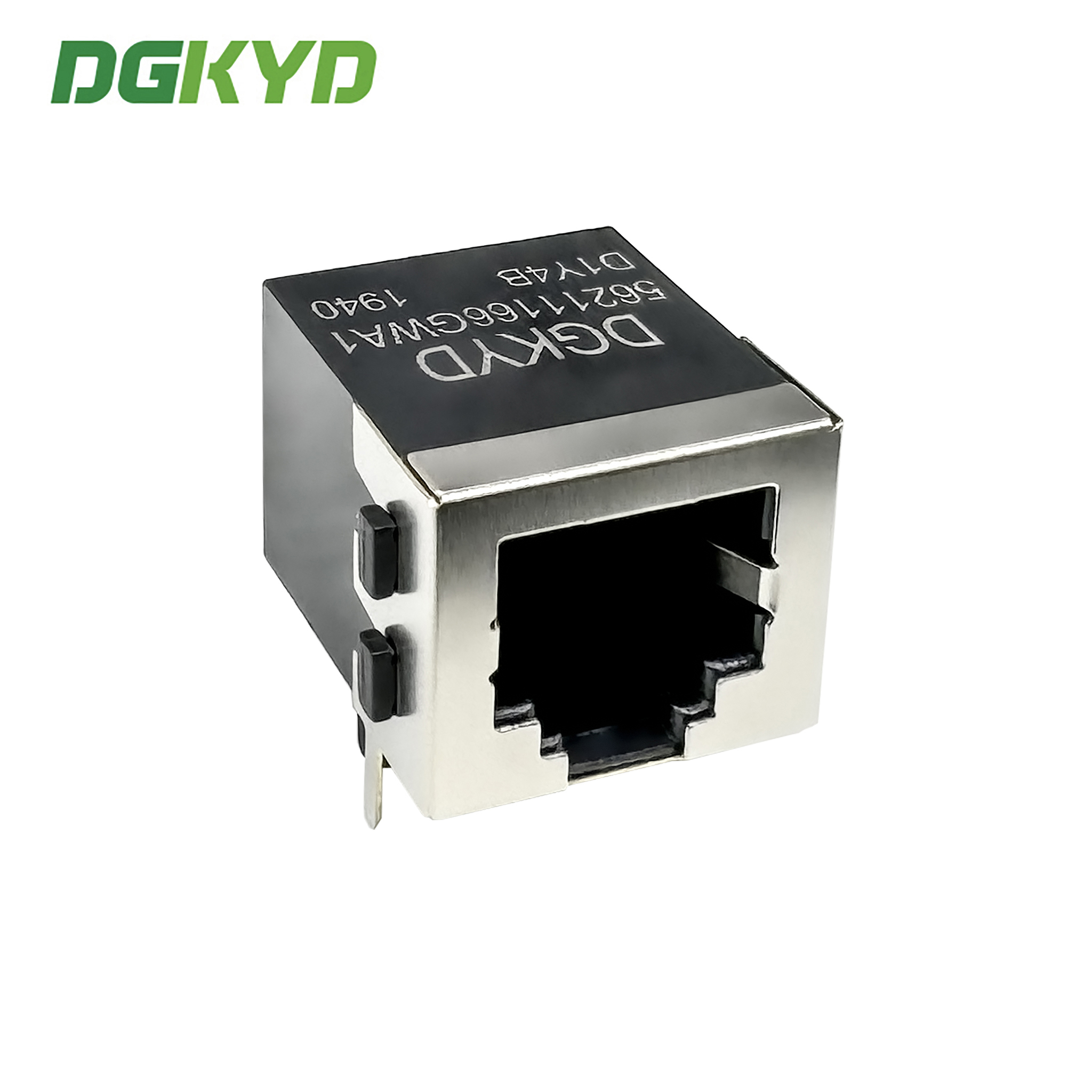

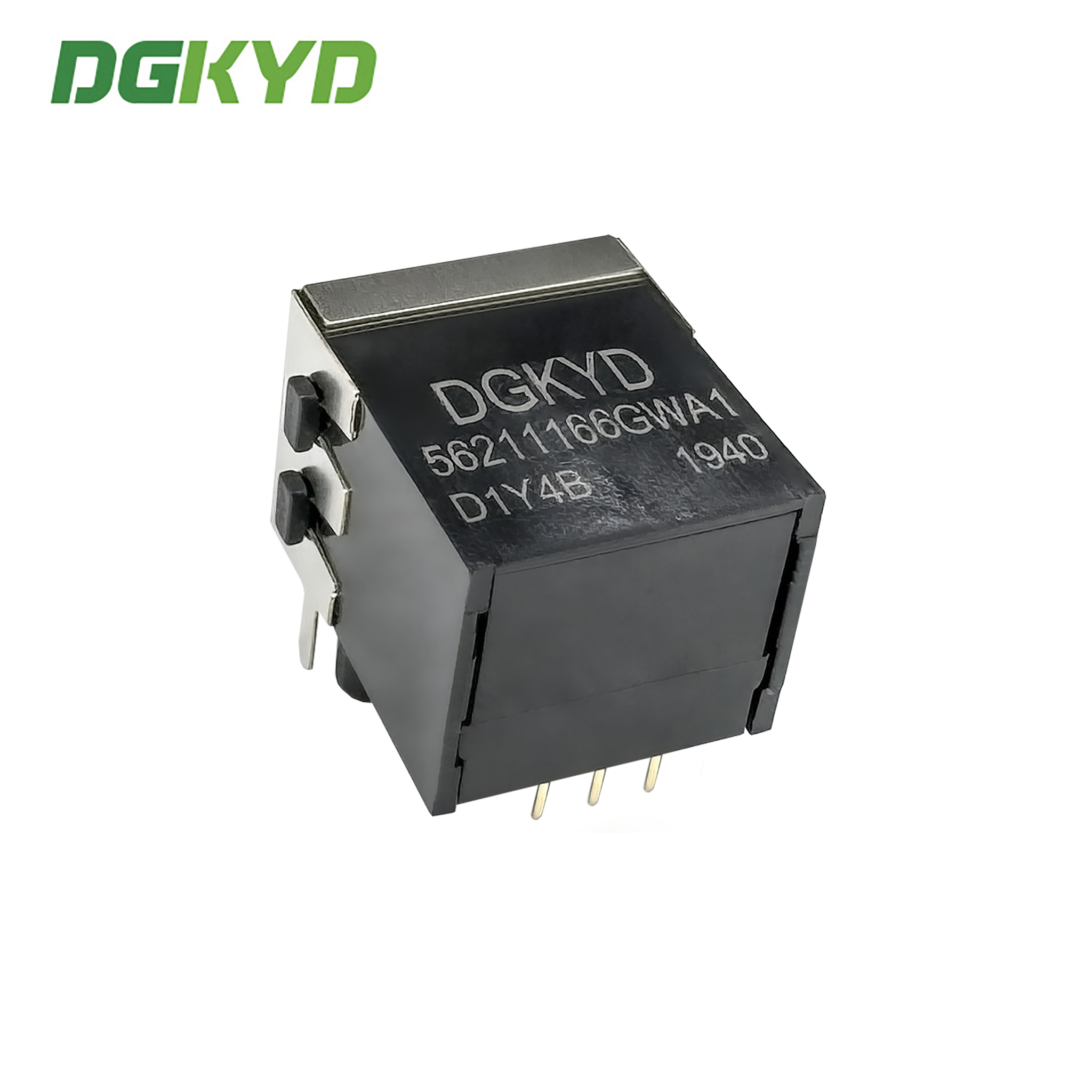

5621 Half Package Shielded Connector RJ11 Network Interface Round Pin DGKYD56211166GWA1D1Y4B

Product Overview

The 5621 Half Package Shielded Connector is an RJ11 network interface component featuring round pin configuration and comprehensive shielding for reliable performance in industrial applications.

Technical Specifications

Part Number	DGKYD56211166GWA1D1Y4B
Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular
Connector Style	Jack
Jack Type	RJ11
Connector Type	Modular Jack
Latch Style	Standard
Latch	TAB-DOWN
Filter	Without Filter
LED Option	Without LED
LED Color	No
Panel Stops	With Panel Stops
Shielded	With metal shield
Applies To	Printed Circuit Board
Port Configuration	Single Ports
Number of Positions	6
Jack Configuration	1X1
Terminals per Port	6
Shield Material	Copper Alloy preplated with Nickel
PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 6u
Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel
PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit
Board Lock	With/Without Board Lock
Housing Material	PBT Polyester
Housing Color	Black
Housing Material Temperature	Standard
UL Flammability Rating	UL 94V-0

Company Information

Product Features

Interface type: crystal head application: 10/100/1000BASE-T Ethernet
Type: RJ45 built in magnetics
Working frequency: high frequency characteristic: filtering, anti-interference
Working temperature: -40℃ to 85℃
Storage temperature: -40℃ to 85℃
Lead free soldering: wave soldering height up to 265℃

RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply:

Business mode: Manufacturer
Delivery time: on time delivery, around two weeks
Specs for choices: LED indicator light (green, yellow, red, orange, blue, bi-color LED)
Shield with EMI fingers or not
Coil ratio of magnetic core
Magnetics circuit diversification optional
Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
Plastic housing material (PBT, PA46, PA9T, LCP)

The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!

Frequently Asked Questions

Q: Are you trading company or manufacture?

A: We are manufacture. Welcome to our factory.

Q: What about your lead time?

A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

Q: Can you provide samples? Are they free?

A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

Q: Can I put my own logo on it?

A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
