Four cell RJ45 network connector with 100Mbps integrated Ethernet filter DGKYD114B002AB2A1D3

Contact nu

Four cell RJ45 network connector with 100Mbps integrated Ethernet filter DGKYD114B002AB2A1D3

Min. bestelaantal :	1 stuk	Prijs :	Please contact us to get the latest price.
Verpakking Details :	Lade in doos	Levertijd :	10 dagen
Betalingscondities :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Levering vermogen :	100.000 stuks/dag

Plaats van herkomst:	Dongguan van China	Merknaam:	DGKYD
Certificering:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Modelnummer:	DGKYD114B002AB2A1D3

Gedetailleerde informatie
Prestatie:	Cat5/5e	Poorttype:	ganged haven 4
Materiaal behuizing:	PBT-ZWARTE	LED:	Groen/geel
RJ45-connector Hoge pot:	1500 Vrms	Rj45 schakelaar ocl:	350uh min
Tabrichting:	Lusje-versla	Aantal kernen:	8
Gouden plating op contactpennen:	6U	Bedrijfstemperatuur:	-40 ° C ~+85 ° C
Opslagtemperatuur:	-40 ° C ~+85 ° C
Markeren:	Four cell RJ45 connector with Ethernet filter , 100Mbps RJ45 network connector , RJ45 1X4 TAB-DOWN/UP connector

Productomschrijving

Four Cell RJ45 Network Connector with 100Mbps Integrated Ethernet Filter DGKYD114B002AB2A1D3

Four cell RJ45 network connector with 100Mbps integrated Ethernet filter DGKYD114B002AB2A1D3

Technical Specifications

Part Number	DGKYD114B002AB2A1D3
Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular
Connector Style	Jack
Jack Type	RJ45
Connector Type	Modular Jack
Latch Style	Standard
Latch	TAB-DOWN
Filter	With Filter
LED Option	With LED
LED Color	Green/Yellow
Panel Stops	With Panel Stops
Shielded	With metal shield
Applies To	Printed Circuit Board
Port Configuration	1X4 Ports
Number of Positions	8
Jack Configuration	1X4
Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel
PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 6u
Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel
PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit
Board Lock	With/Without Board Lock
Housing Material	PBT Polyester
Housing Color	Black
Housing Material Temperature	Standard
UL Flammability Rating	UL 94V-0

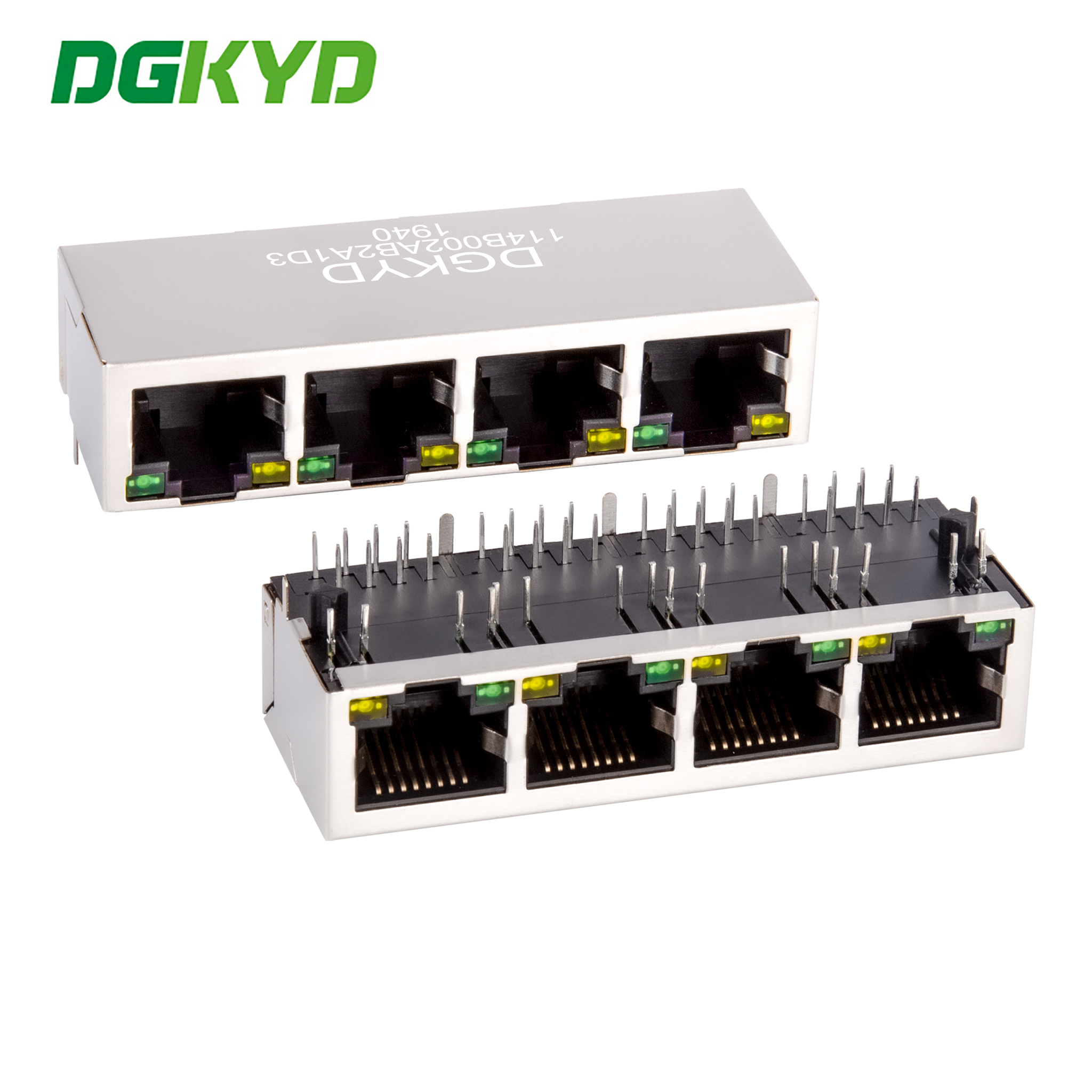

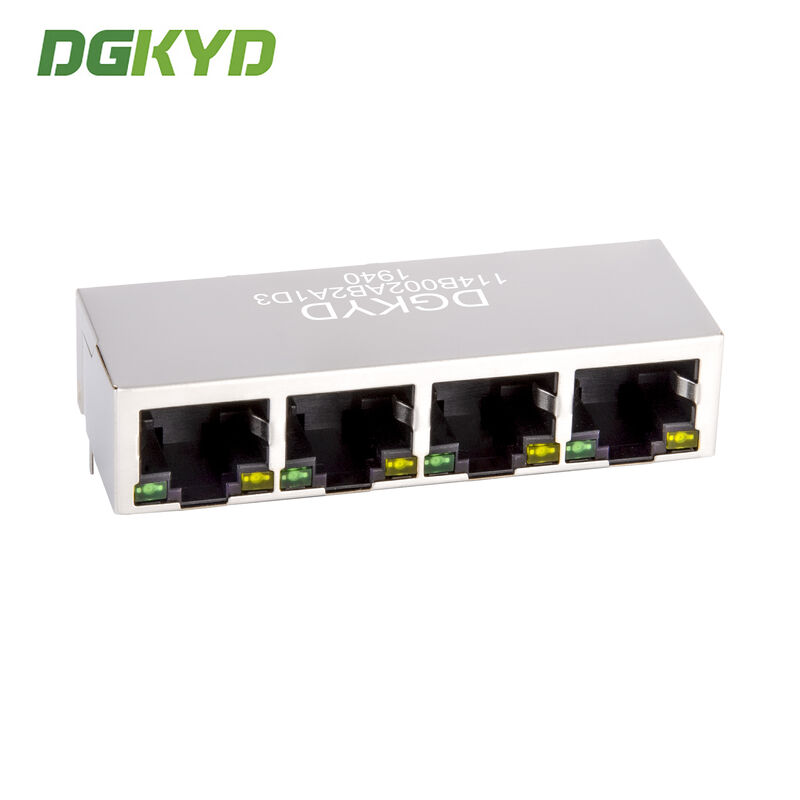

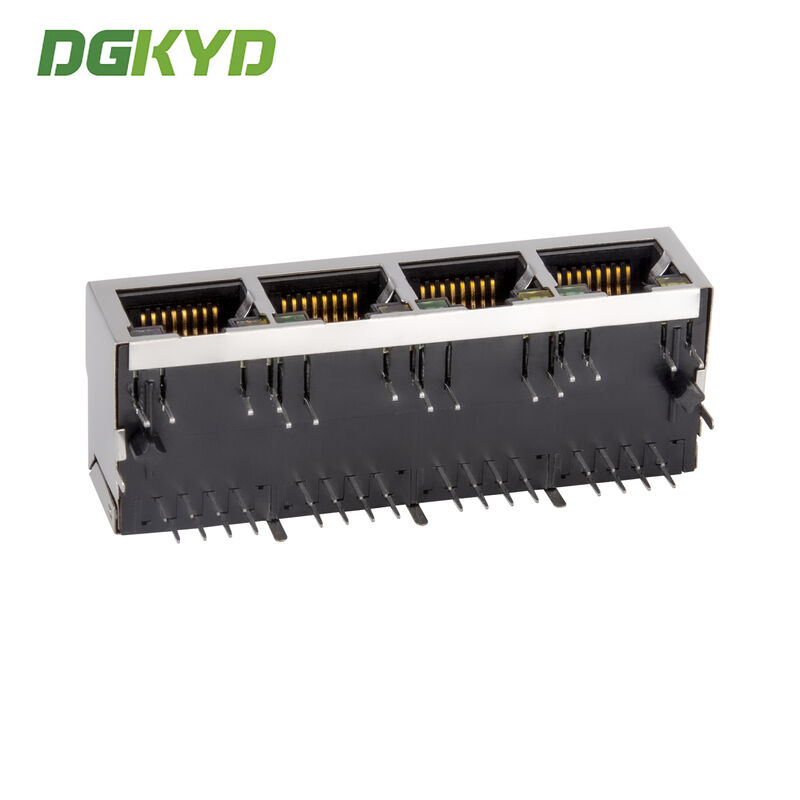

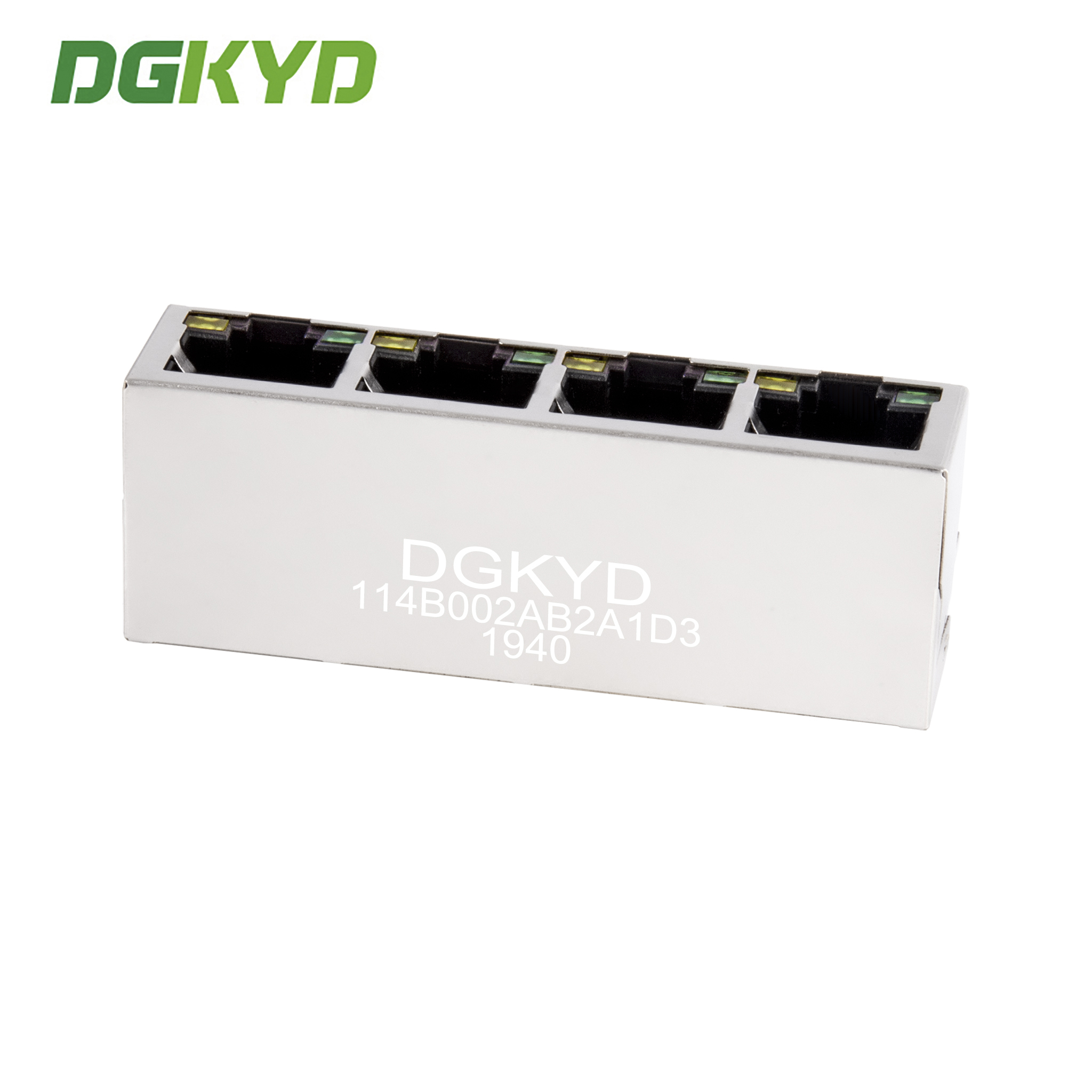

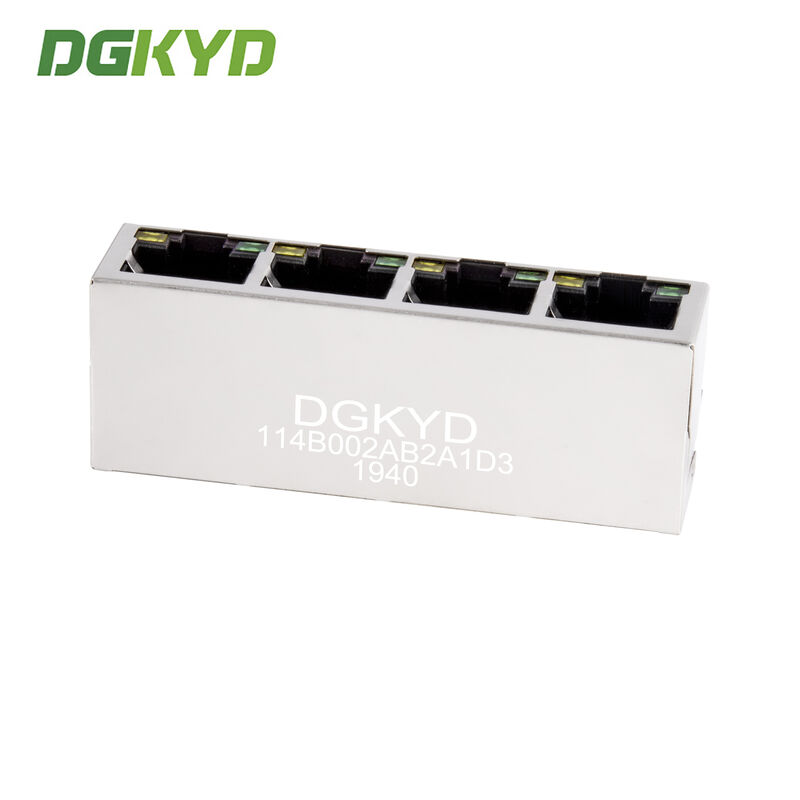

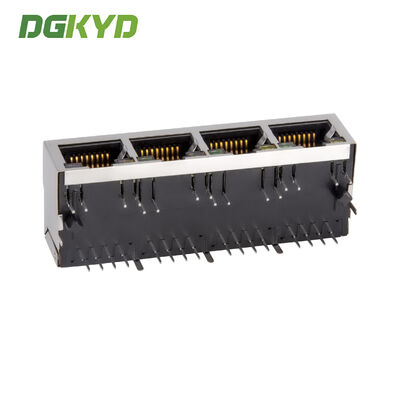

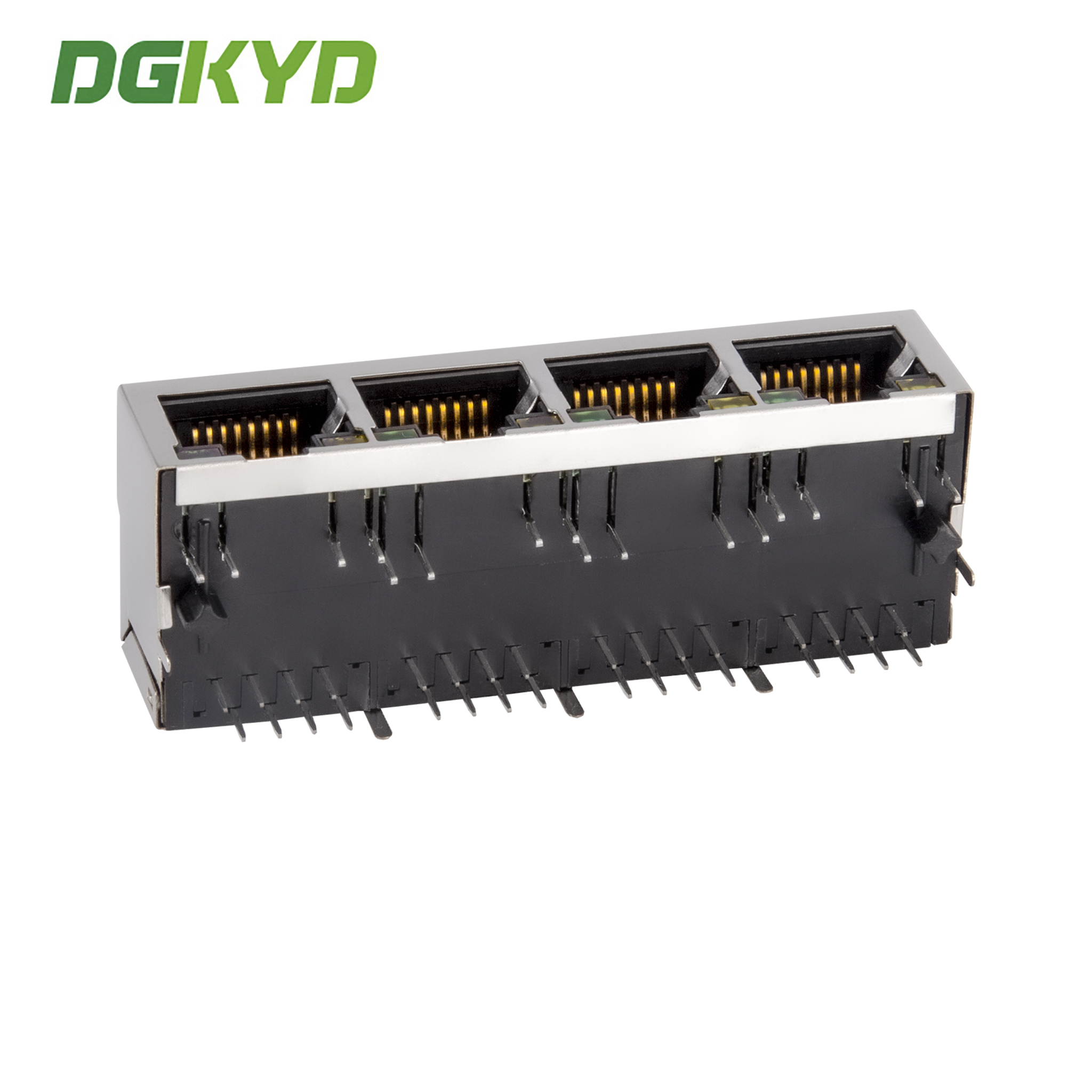

Product Images

Manufacturer Information

Product Features

Interface type: crystal head application: 10/100/1000BASE-T Ethernet
Type: RJ45 built in magnetics
Working frequency: high frequency characteristic: filtering, anti-interference
Working temperature: -40℃ to 85℃
Storage temperature: -40℃ to 85℃
Lead free soldering: wave soldering height up to 265℃
RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply
Business mode: Manufacturer
Delivery time: on time delivery, around two weeks
Specs for choices: LED indicator light (green, yellow, red, orange, blue, bi-color LED)
Shield with EMI fingers or not
Coil ratio of magnetic core
Magnetics circuit diversification optional
Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
Plastic housing material (PBT, PA46, PA9T, LCP)

The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!

Frequently Asked Questions

Q: Are you trading company or manufacture?

A: We are manufacture. Welcome to our factory.

Q: What about your lead time?

A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

Q: Can you provide samples? Are they free?

A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

Q: Can I put my own logo on it?

A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.

Applications

Integrated RJ45 connector main used to:

10/100M net card, PCMCIA net card, USB Hub, network switch, router, fiber optic transceivers, optical transceiver, IP phone, internet set-top box, internet camera, net bridge, computer, telecommunication, MODEM, HomePNA, DSL/ADSL and so on.
