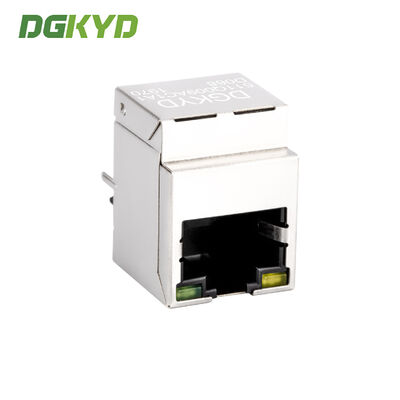

Custom 180 degree top insertion gigabit ethernet RJ45 Receptacle connector for IoT DGKYD511Q009AC1A1D068

Min. bestelaantal :	1 stuk	Prijs :	Please contact us to get the latest price.
Verpakking Details :	Lade in doos	Levertijd :	10 dagen
Betalingscondities :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Levering vermogen :	100.000 stuks/dag

Plaats van herkomst:	Dongguan van China	Merknaam:	DGKYD
Certificering:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Modelnummer:	DGKYD511Q009AC1A1D068

Gedetailleerde informatie
Havenrichtlijn:	Verticale insertie	Productnaam:	RJ45-Hefboom
Functie:	Cat 6	Sollicitatie:	router, usb-hub, modem, communicatie etc
Haven:	Enkele poort	Type:	RJ45
Statusindicator:	geel/groen	Vergrendelingsoriëntatie:	Topinvoer
Aantal posities/contacten:	8p10c (RJ45, Ethernet)	Gouden plating op contactpennen:	6U
Opslagtemperatuur:	-40°C~+85°C	Bedrijfstemperatuur:	-40°C~+85°C
Markeren:	180 degree top insertion RJ45 connector , 10 pin gigabit ethernet receptacle , IoT RJ45 connector with warranty

Productomschrijving

Custom 180° Top Insertion Gigabit Ethernet RJ45 Receptacle Connector for IoT

Part Number: DGKYD511Q009AC1A1D068

Technical Specifications

Part Number	DGKYD511Q009AC1A1D068
Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular
Connector Style	Jack
Jack Type	RJ45
Connector Type	Modular Jack
Latch Style	Standard
Latch	TAB-UP
Filter	With Filter
LED Option	With LED
LED Color	Yellow/Green
Panel Stops	With Panel Stops
Shielded	With metal shield
Applies To	Printed Circuit Board
Port Configuration	Single Ports
Number of Positions	10
Jack Configuration	1X1
Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel
PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 6u
Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel
PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit
Board Lock	With/Without Board Lock
Housing Material	PBT Polyester
Housing Color	Black
Housing Material Temperature	Standard
UL Flammability Rating	UL 94V-0

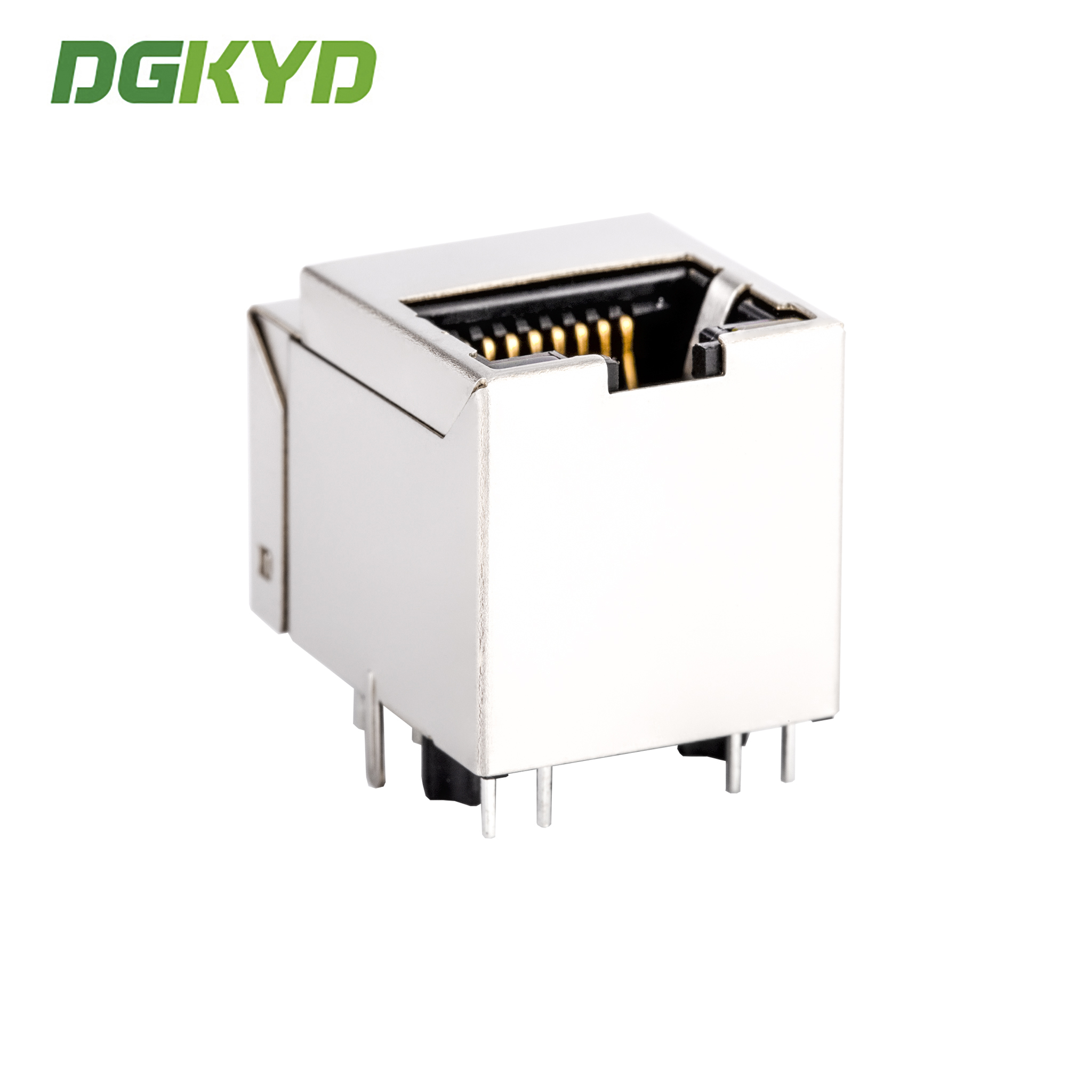

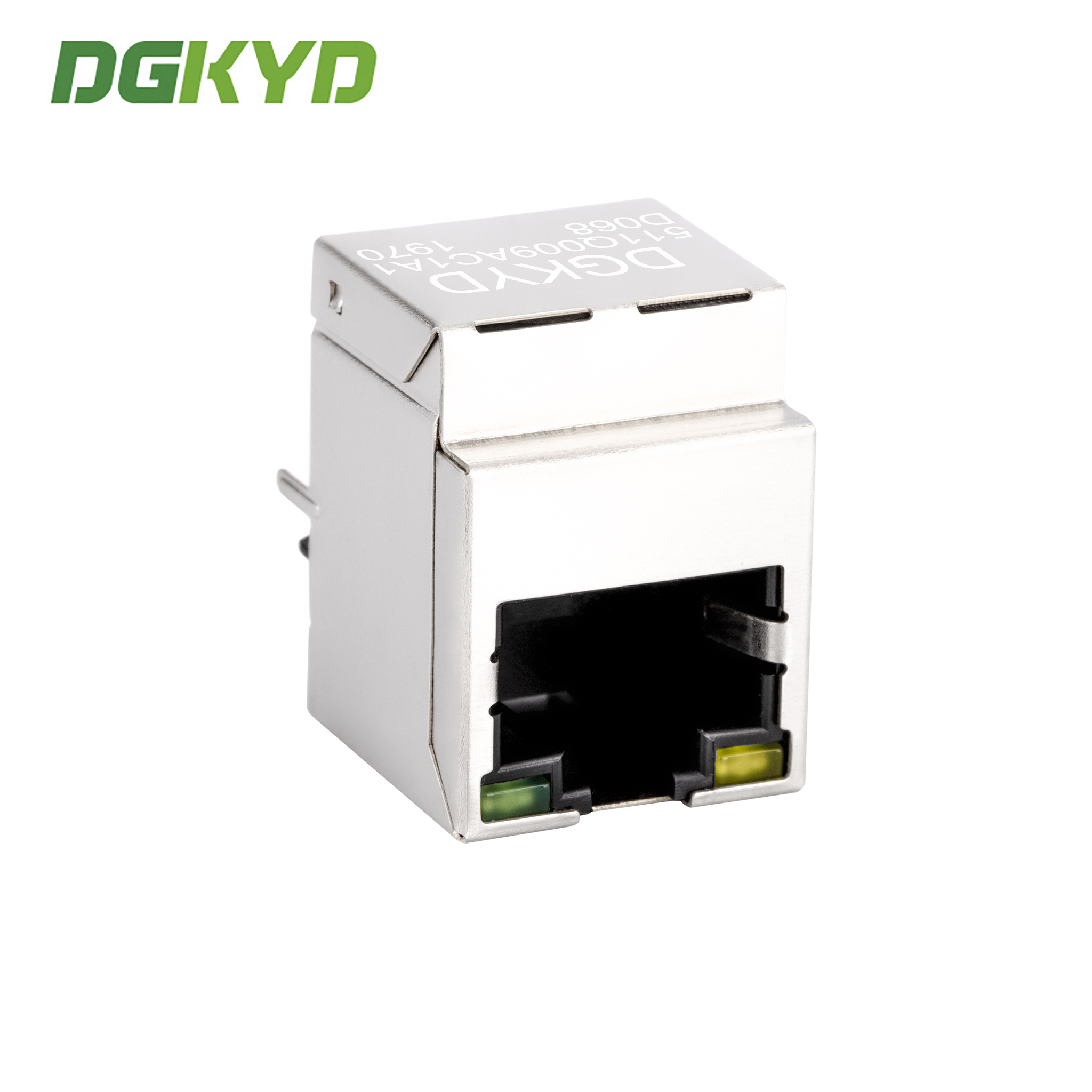

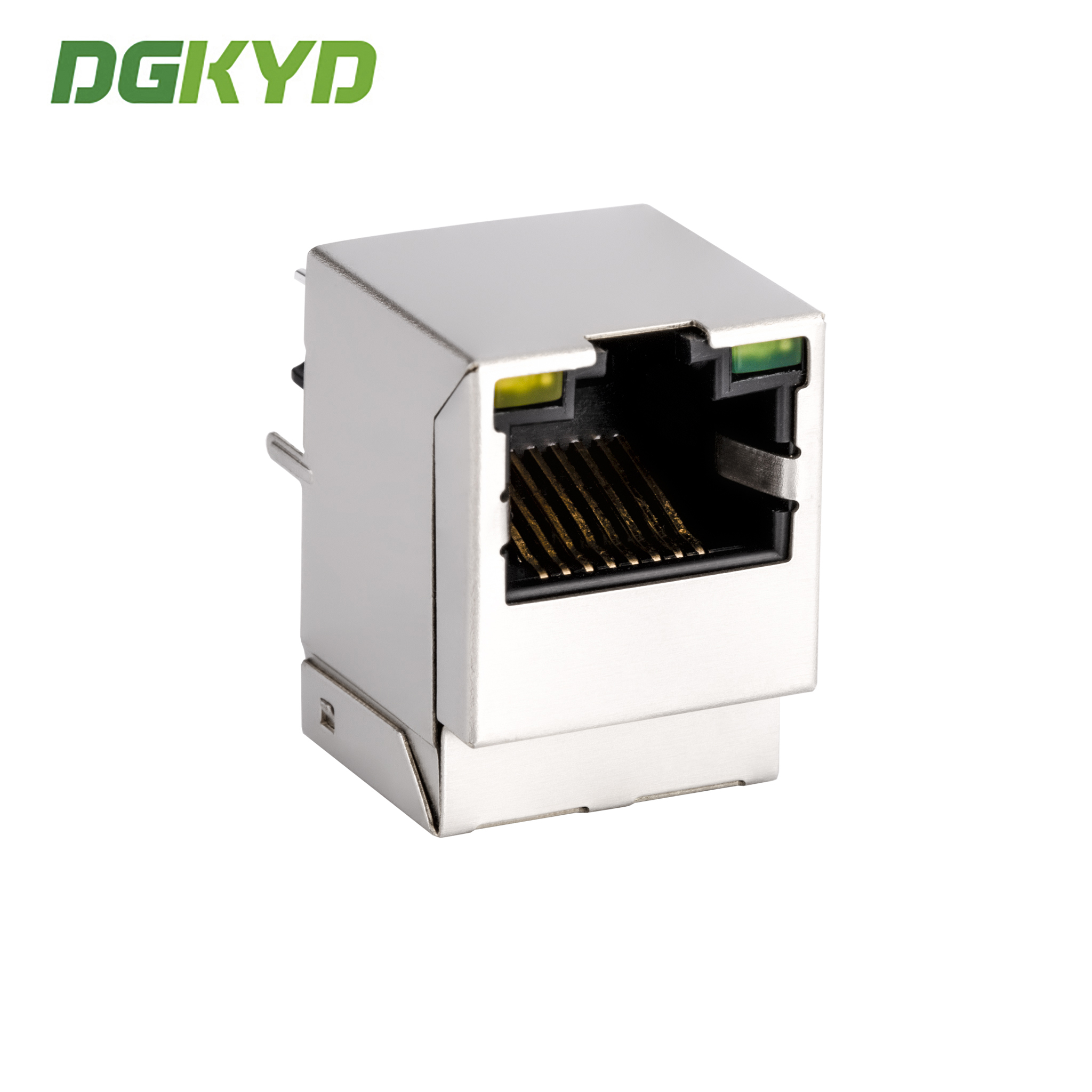

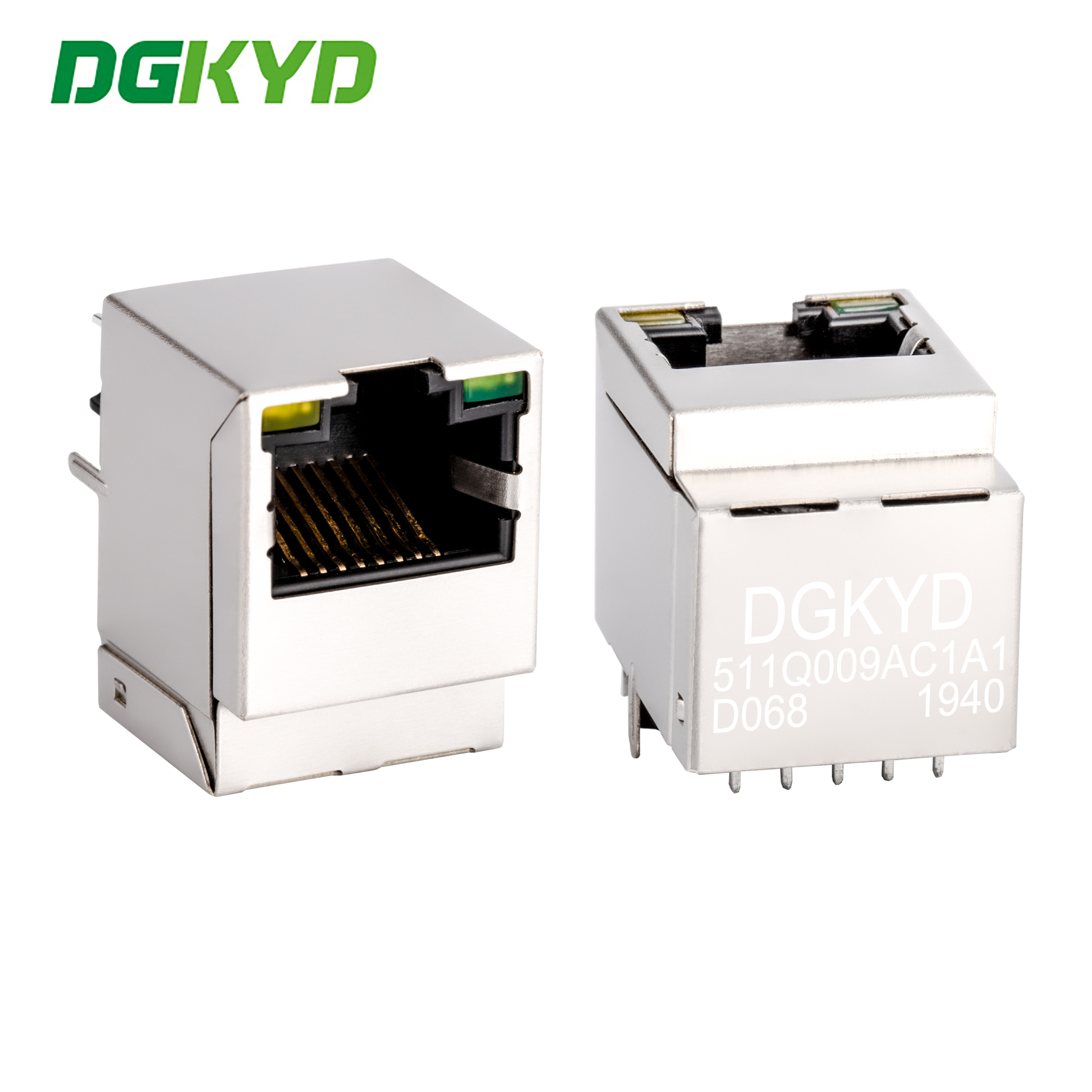

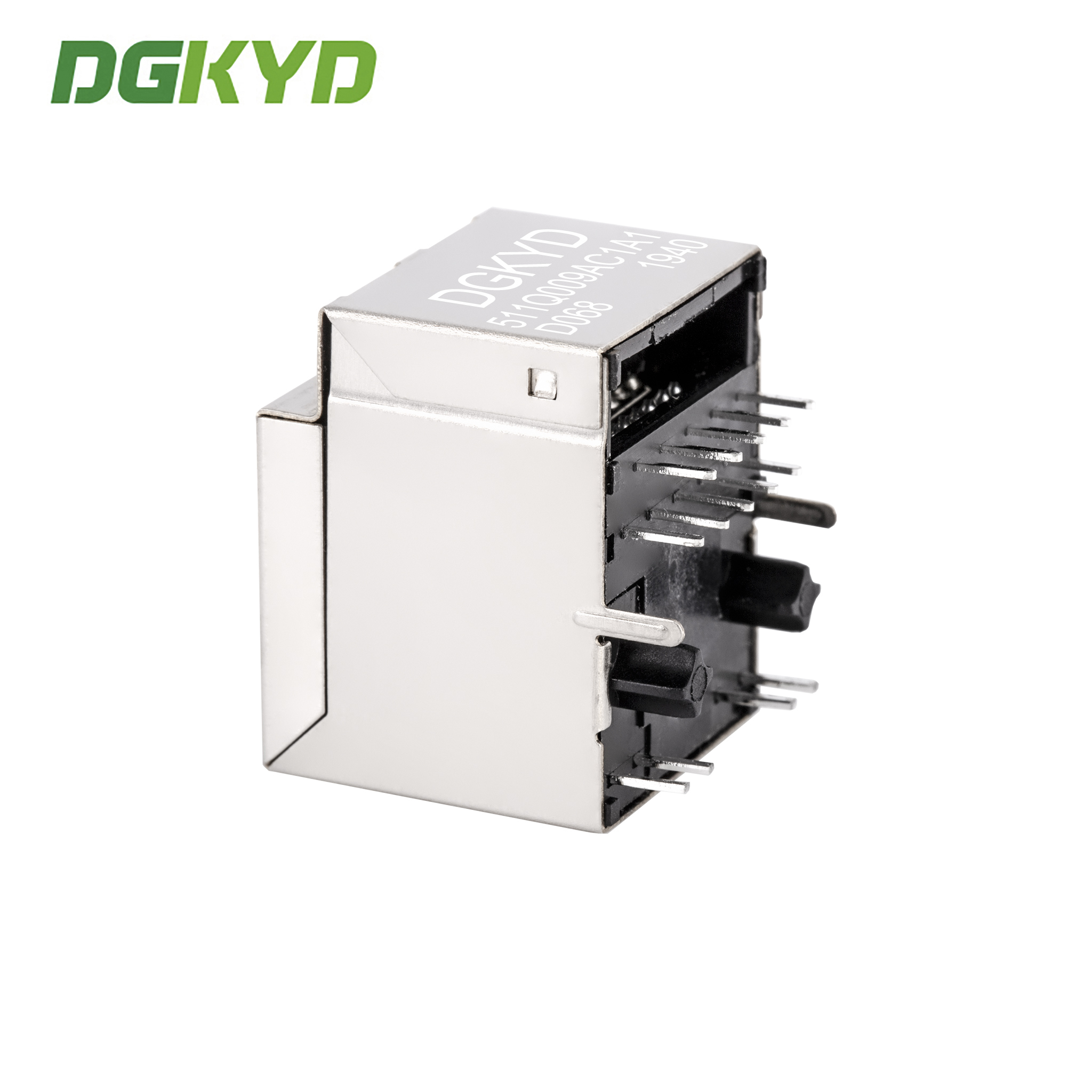

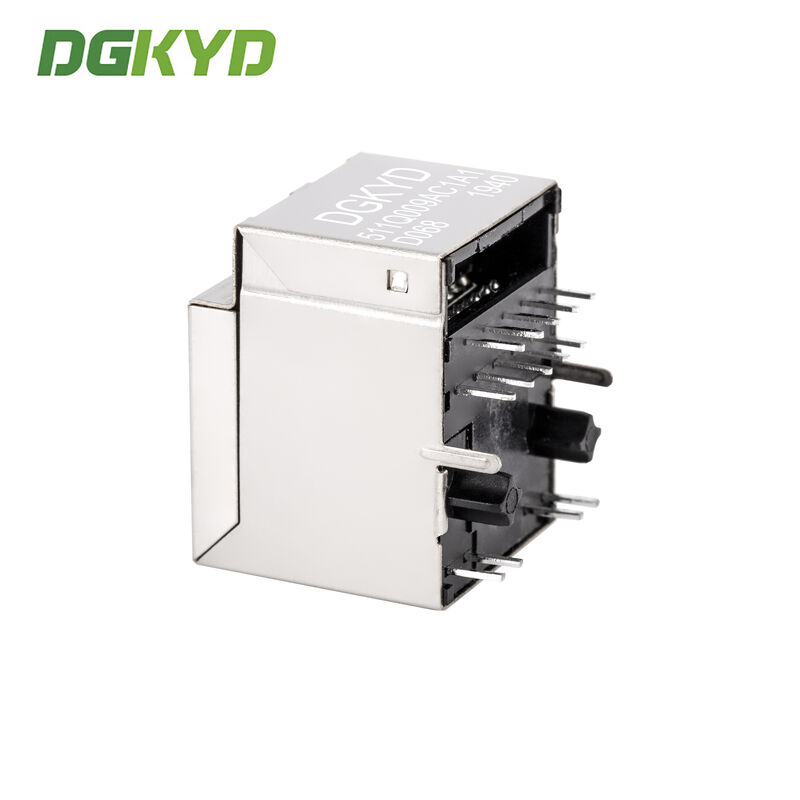

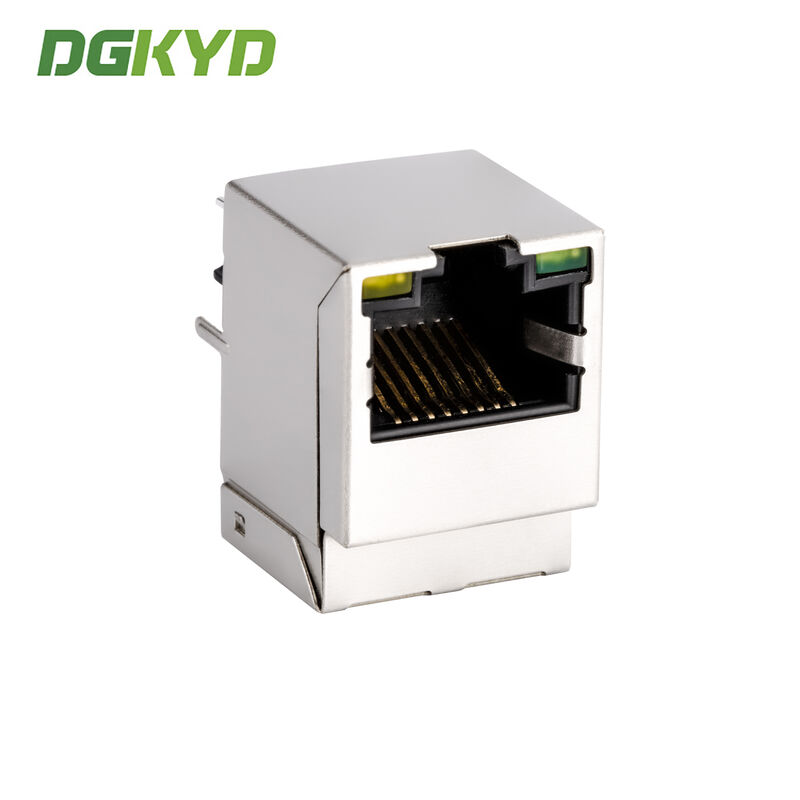

Product Images

Manufacturer Information

Company Profile Custom 180 degree top insertion gigabit ethernet RJ45 Receptacle connector for IoT DGKYD511Q009AC1A1D068 3

Factory Show Custom 180 degree top insertion gigabit ethernet RJ45 Receptacle connector for IoT DGKYD511Q009AC1A1D068 4

Factory Interior Custom 180 degree top insertion gigabit ethernet RJ45 Receptacle connector for IoT DGKYD511Q009AC1A1D068 5

Factory Equipment Custom 180 degree top insertion gigabit ethernet RJ45 Receptacle connector for IoT DGKYD511Q009AC1A1D068 6

Product Showcase Custom 180 degree top insertion gigabit ethernet RJ45 Receptacle connector for IoT DGKYD511Q009AC1A1D068 7

Product Features

Interface type: crystal head application for 10/100/1000BASE-T Ethernet
Type: RJ45 built-in magnetics with filtering and anti-interference capabilities
Working frequency: High frequency characteristics optimized for signal integrity
Operating temperature range: -40℃ to 85℃
Storage temperature range: -40℃ to 85℃
Lead-free soldering compatible with wave soldering up to 265℃
Complete RJ45 integrated circuit accessories from direct manufacturer
Business mode: Direct manufacturer with OEM/ODM capabilities
Delivery time: Approximately two weeks with on-time delivery commitment
Customizable LED indicator options (green, yellow, red, orange, blue, bi-color)
Optional EMI finger shielding configurations
Diverse magnetic core coil ratios available
Multiple magnetics circuit diversification options
Contact gold plating options (FU, 3U, 6U, 15u, 30U, 50U)
Plastic housing material choices (PBT, PA46, PA9T, LCP)

All electrical properties meet industry standards, with appearance and mechanical properties conforming to dimensional specifications, mechanical manufacturing industry standards, and environmental protection requirements.

Frequently Asked Questions

Are you a trading company or manufacturer?

We are a manufacturer. Welcome to visit our factory.

What about your lead time?

For products in stock, delivery within 5-7 working days after payment. For customized and out-of-stock products, delivery time is confirmed based on order quantity.

Can you provide samples? Are they free?

Yes. We typically provide 2-3 samples of standard products free for testing purposes.

Can I put my own logo on it?

Yes. As a manufacturer with 11 years of OEM experience, we are fully capable of customizing products to your specifications.
