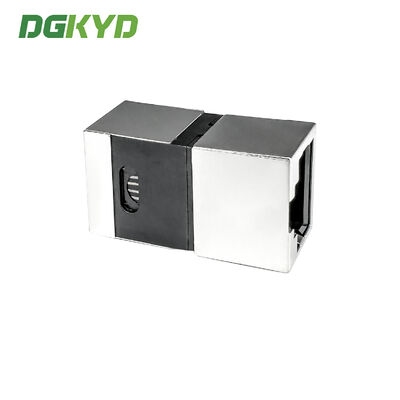

Shielded RJ45 straight through module side copper shell without buckle DGKYD-US030-006E

Min. bestelaantal :	1 stuk	Prijs :	Please contact us to get the latest price.
Verpakking Details :	Lade in doos	Levertijd :	10 dagen
Betalingscondities :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Levering vermogen :	100.000 stuks/dag

Plaats van herkomst:	Dongguan van China	Merknaam:	DGKYD
Certificering:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Modelnummer:	DGKYD-US030-006E
Document:	DGKYD-US030-006E.pdf

Gedetailleerde informatie
Schelp:	PBT, UL94V-0, zwart.	Terminal:	fosforbrons, 15u "verguld
Afscherming:	messing, T=0,20 MM, vernikkelen gedurende 20 minuten	Duurzaamheid:	Minimaal 750 cycli, 12,5 MM/MIN.
Toevoegingskracht:	maximaal 2,2 kg. F.	Holding Force:	7,7 kg. F bevindt zich tussen stopcontact en stekker.
Opslag:	-40℃~+85℃	Operatie:	-40℃~+85℃
Markeren:	Shielded RJ45 connector without buckle , Straight through module side copper shell , RJ45 wire harness with warranty

Productomschrijving

Shielded RJ45 Straight Through Module Side Copper Shell Without Buckle DGKYD-US030-006E

Product Documentation

Product Specifications

Part Number	DGKYD-US030-006E	Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China	Certification	CE /UL/FCC/Reach/RoHS
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Filter	Without internal filter
LED Option	Without LED	Panel Stops	Without Panel Stops
Shielded	Yes	Applies To	Printed Circuit Board
Performance Speed	Standard	Grounding Options	Panel Ground and PCB Ground
Port Configuration	1 port	Number of Positions	8
Jack Configuration	1 x 1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 15u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	White
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

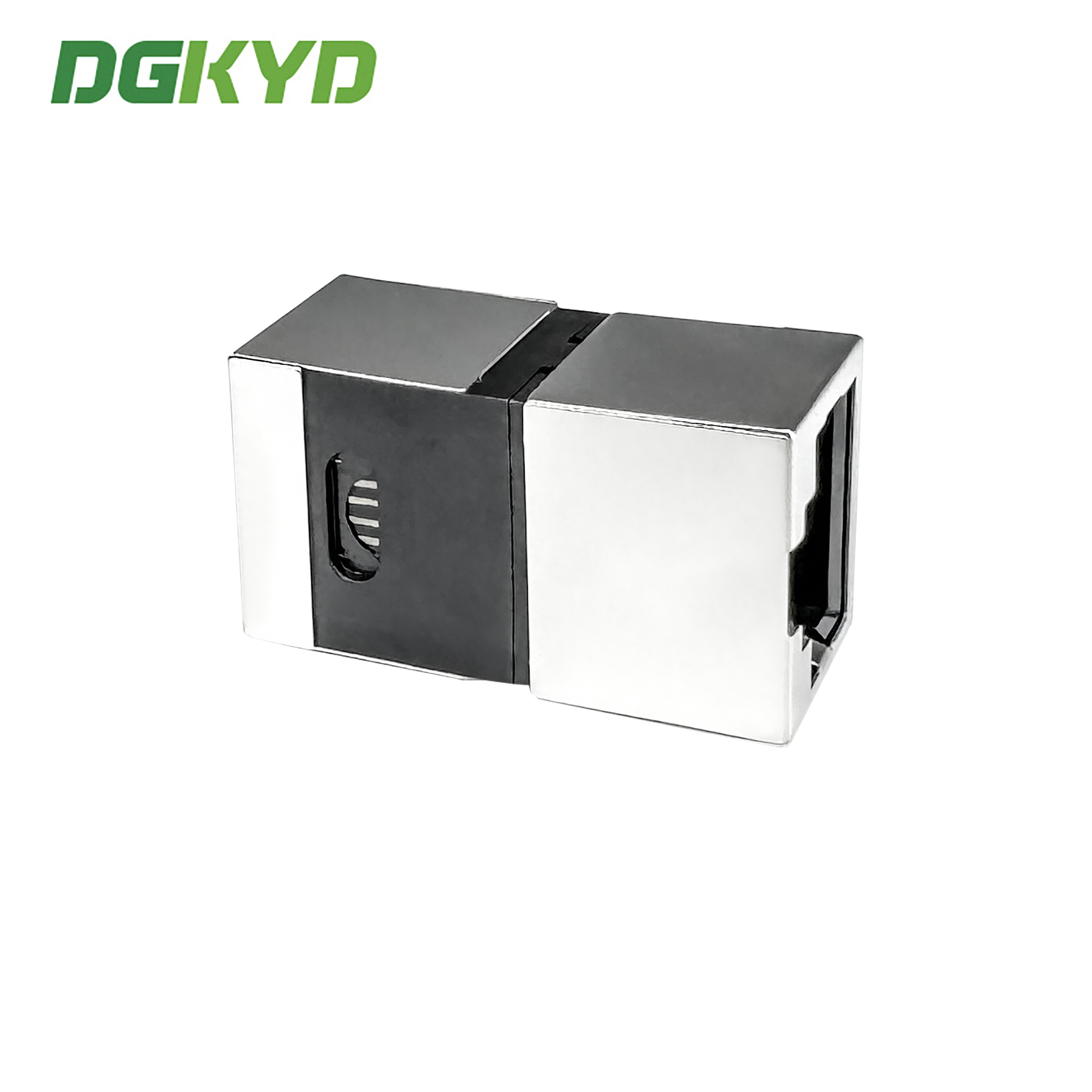

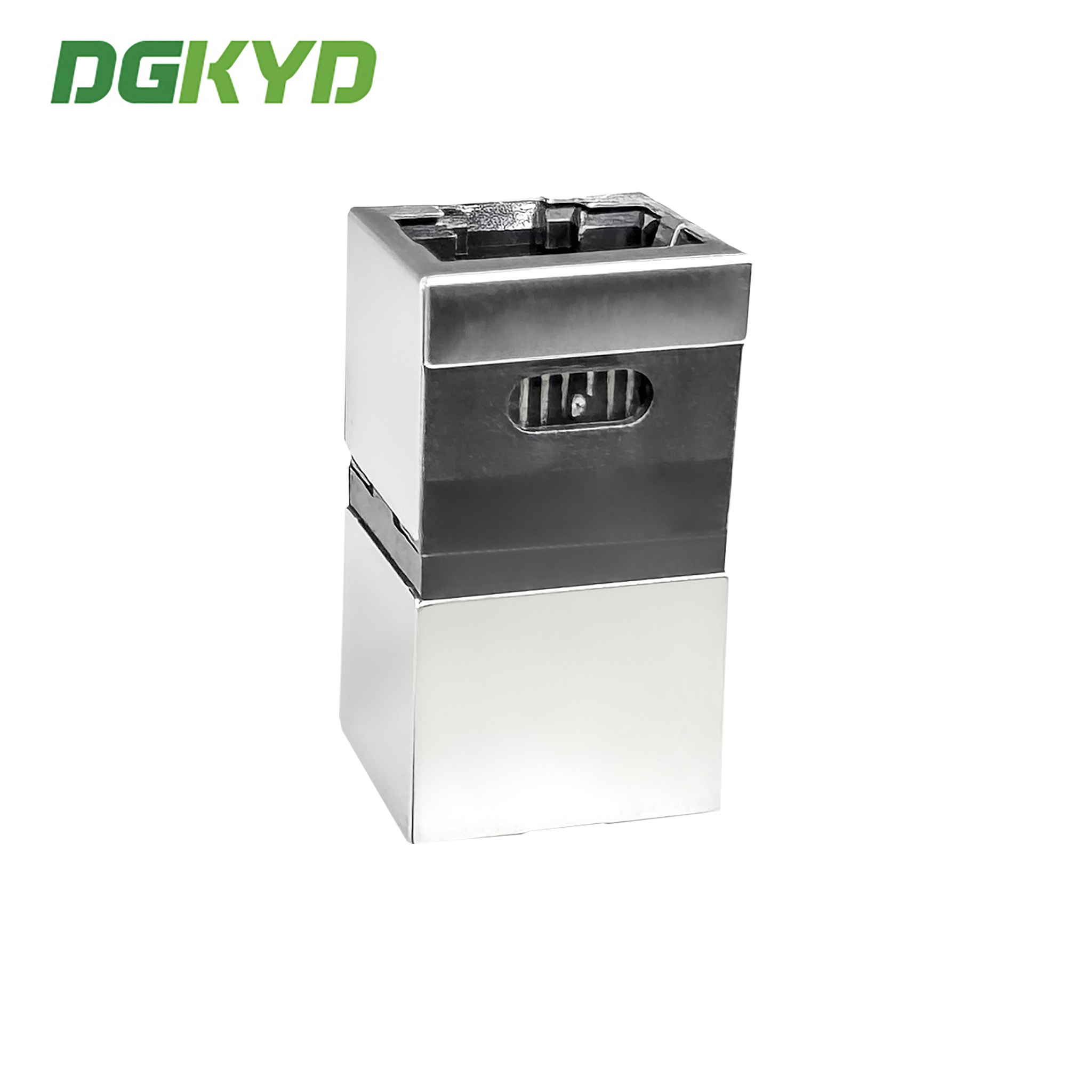

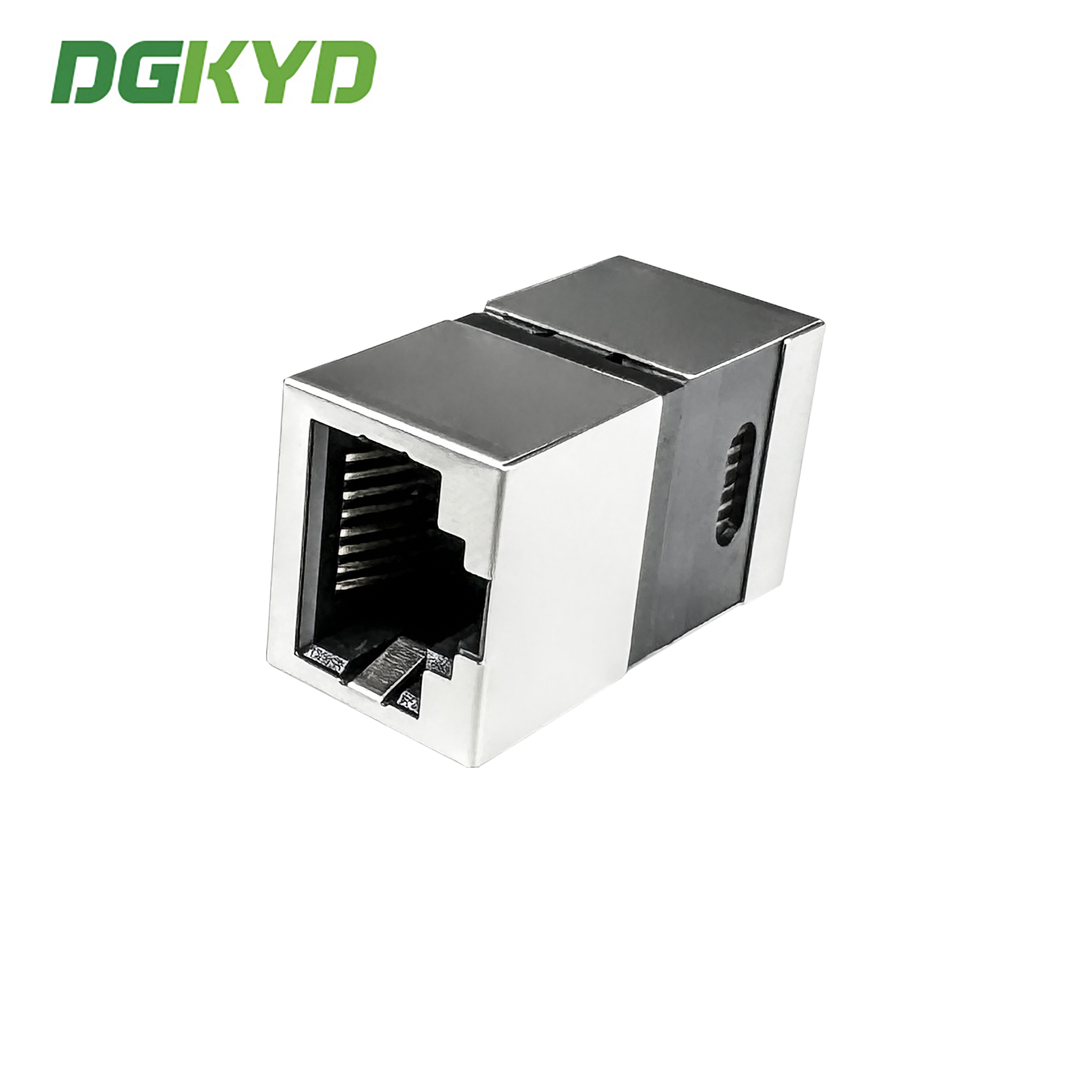

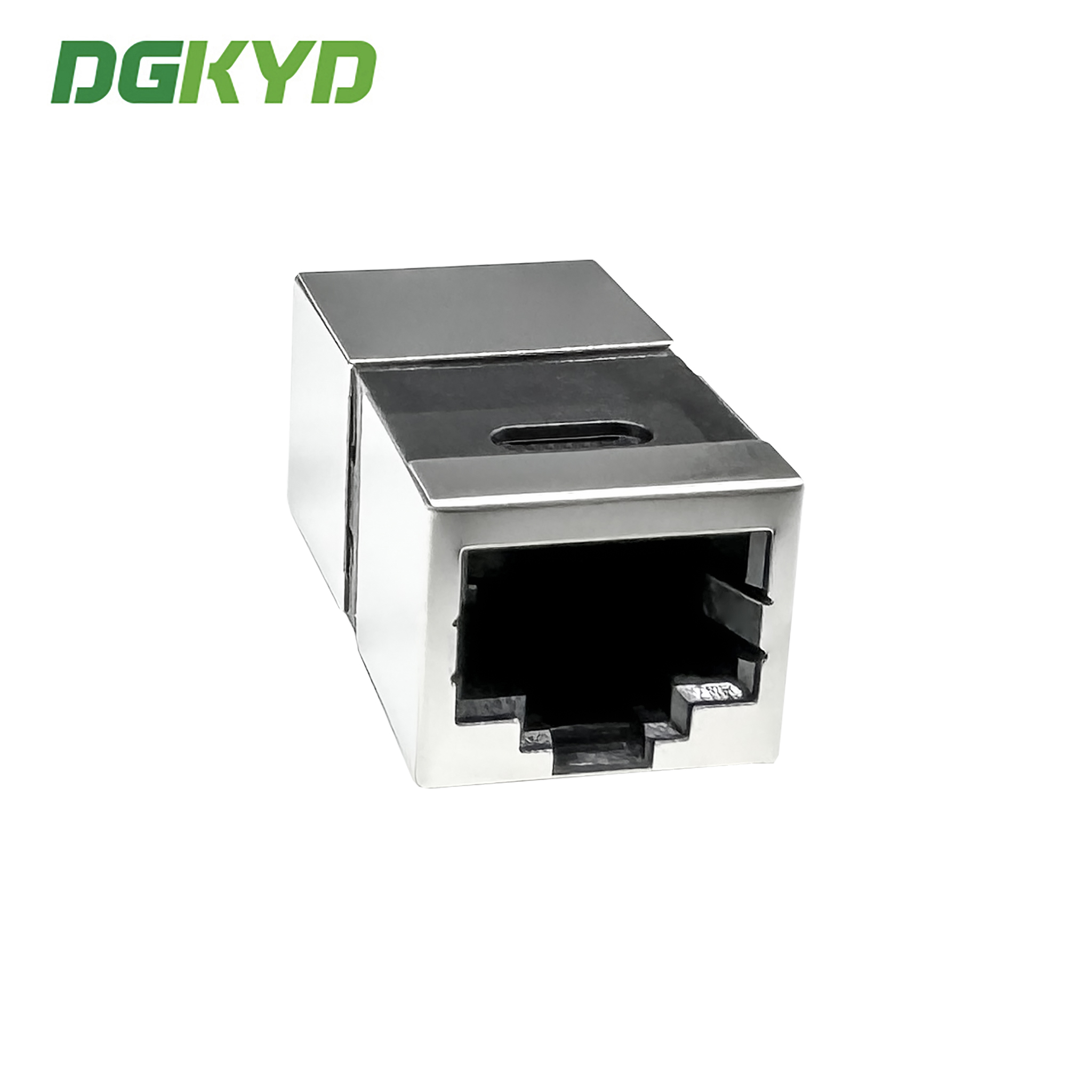

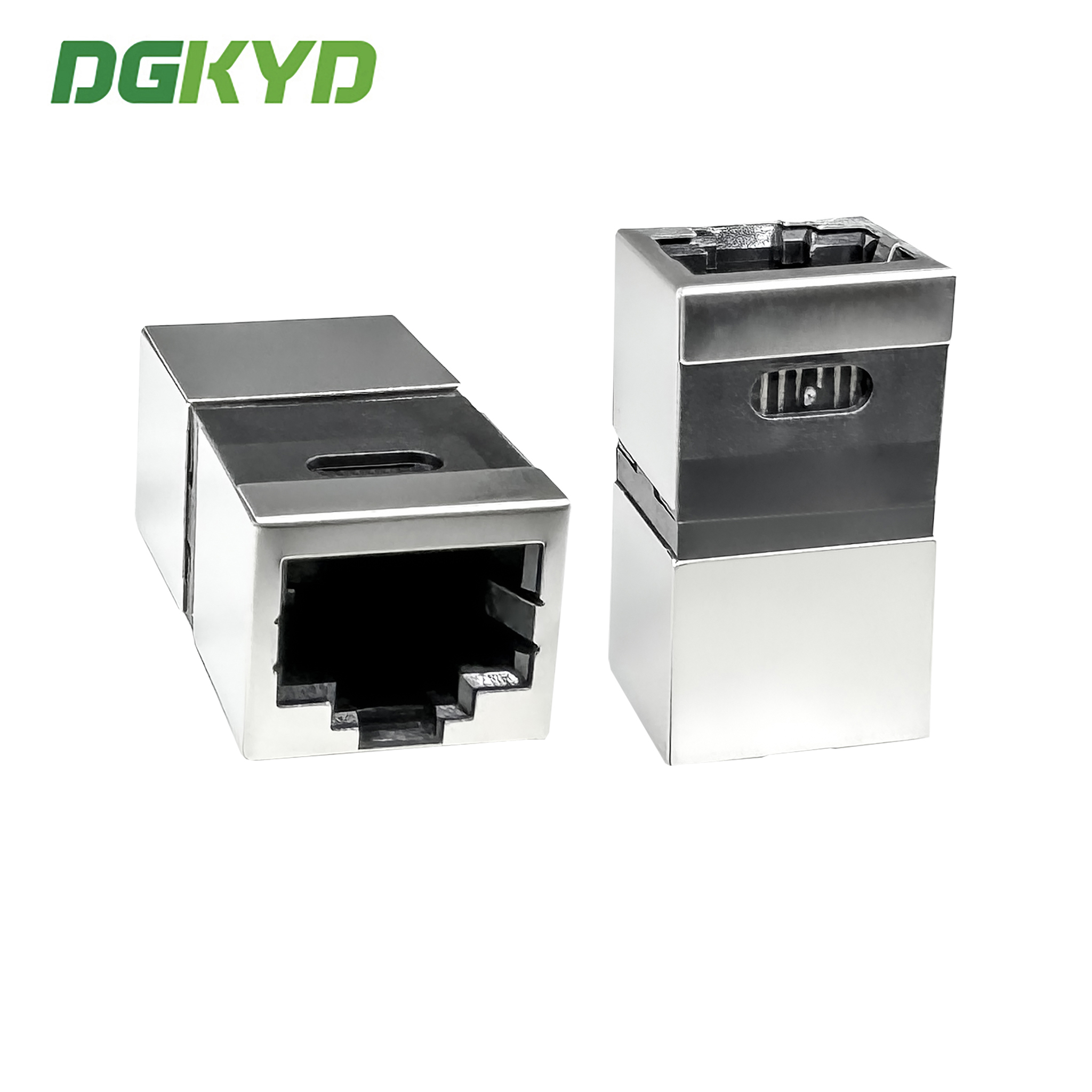

Product Image
