Vertical entry 100 Base-tx RJ45 LAN Jack High Performance Communication IEEE 802.3 KRJ-180RNL

Contact nu

Vertical entry 100 Base-tx RJ45 LAN Jack High Performance Communication IEEE 802.3 KRJ-180RNL

Min. bestelaantal :	1 stuk	Prijs :	Please contact us to get the latest price.
Verpakking Details :	Lade in doos	Levertijd :	10 dagen
Betalingscondities :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Levering vermogen :	100.000 stuks/dag

Plaats van herkomst:	Dongguan van China	Merknaam:	DGKYD
Certificering:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Modelnummer:	KRJ-180RNL

Gedetailleerde informatie
Kunststof kern:	Glasvezelvuller PBT Zwart ((UL94V-0), ROHS	Productnaam:	RJ45 met transformator
Huisvesting:	Fenol, PBT Zwart (UL94V-0)	Type:	RJ45 Vrouwelijk
Nr. haven:	De Enige haven van RJ45	Schild RJ45:	Ja
Gouden plating op contactpennen:	6U	Opslagtemperatuur:	-40°C~+85°C
Bedrijfstemperatuur:	-40°C~+85°C
Markeren:	Vertical entry RJ45 LAN jack , 100 Base-tx RJ45 connector , High performance IEEE 802.3 jack

Productomschrijving

Vertical Entry 100 Base-TX RJ45 LAN Jack

High Performance Communication Connector Compliant with IEEE 802.3 Standards

Product Overview

Part Number: KRJ-180RNL

Download Product Documentation (KRJ-180RNL.pdf)

Technical Parameters

Parameter	Specification
Part Number	KRJ-180RNL
Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular
Connector Style	Jack
Jack Type	RJ45
Connector Type	Modular Jack
Latch Style	Standard TAB-UP
Filter	With Filter
LED Option	Without LED
Panel Stops	With Panel Stops
Shielded	With metal shield
Applies To	Printed Circuit Board
Port Configuration	Single Port
Number of Positions	8
Jack Configuration	1X1
Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel
PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 6u
Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating	Tin-Lead over Nickel
PCB Mounting Style	Through Hole
Termination Method	Through Hole-Press-Fit
Board Lock	With/Without Board Lock
Housing Material	PBT Polyester (Black)
UL Flammability Rating	UL 94V-0

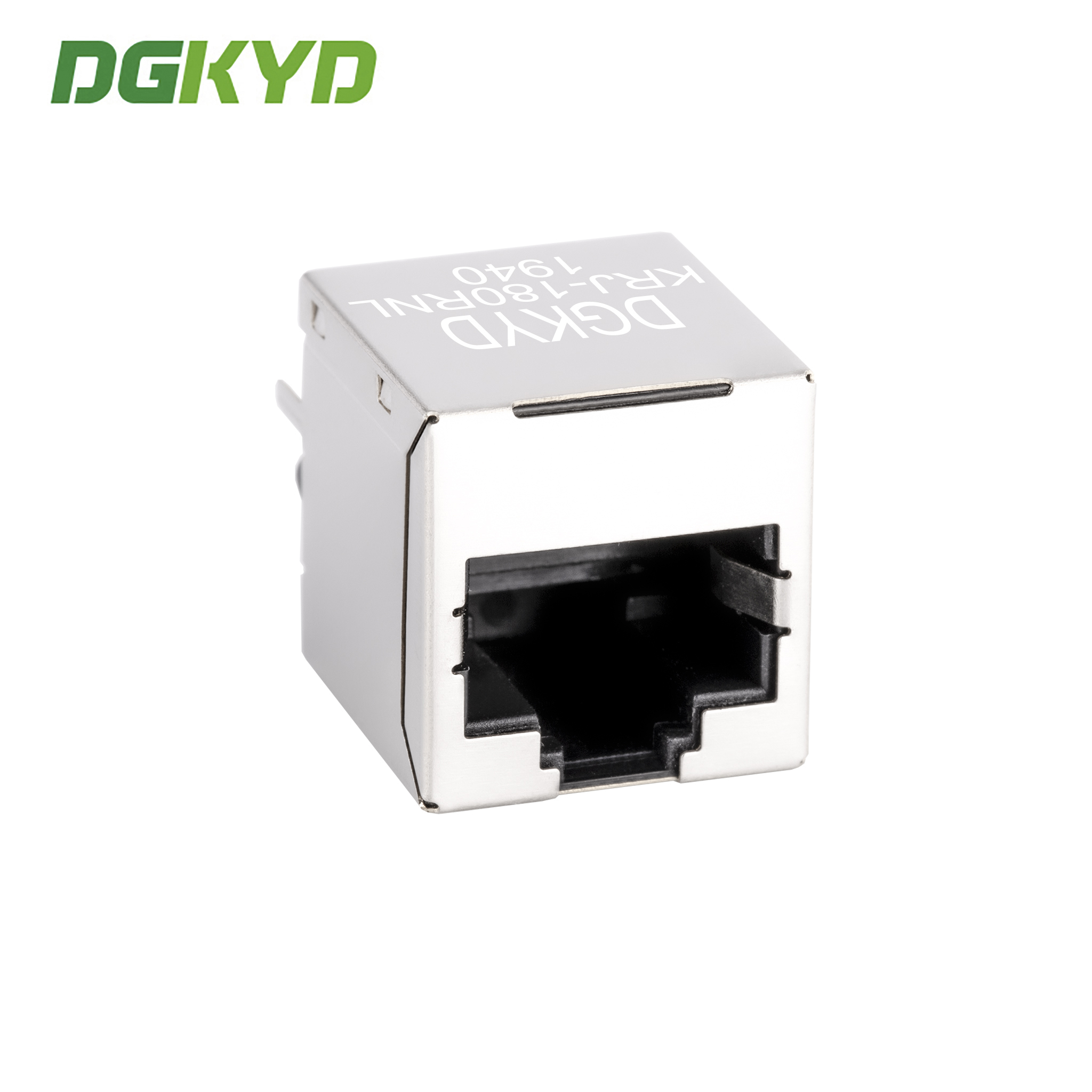

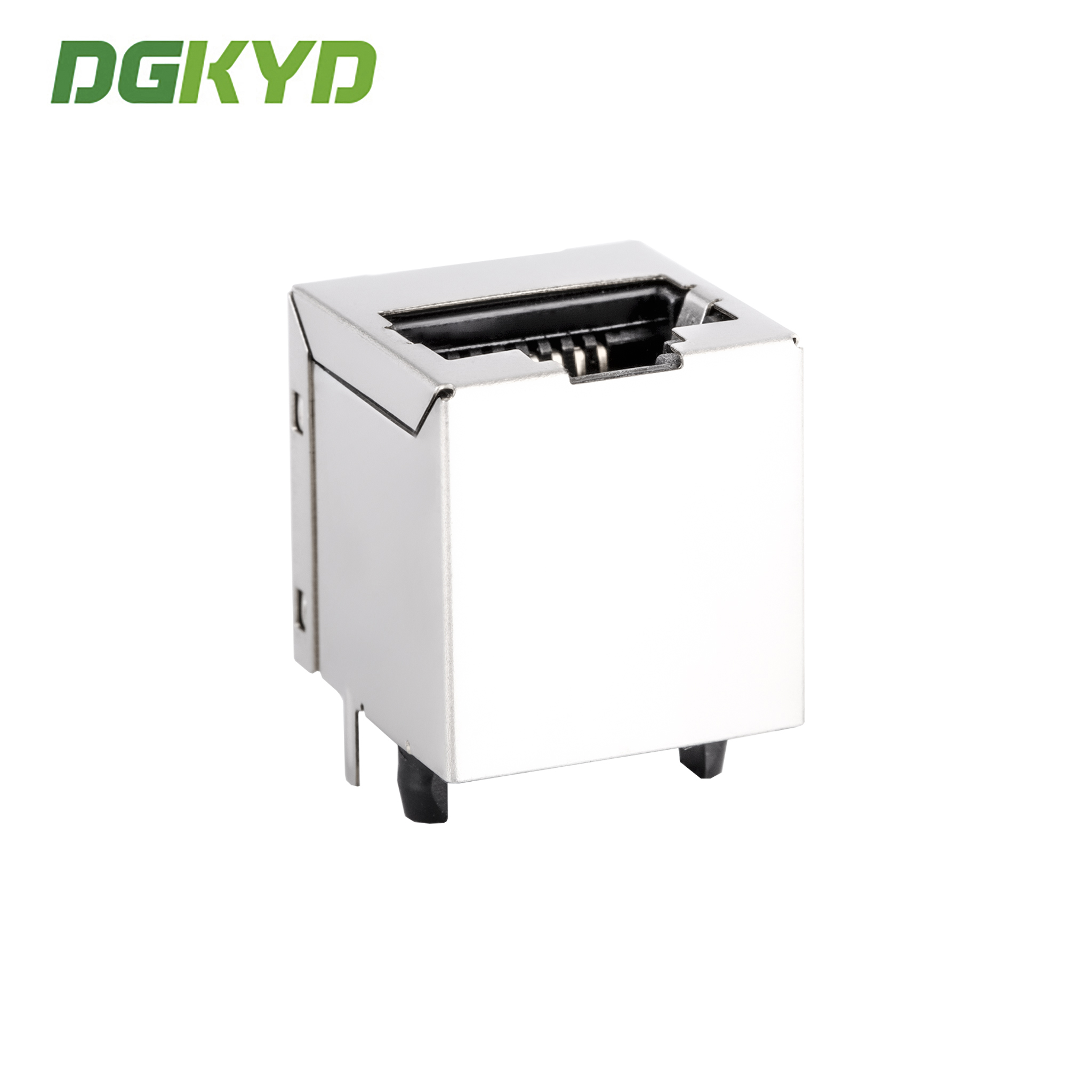

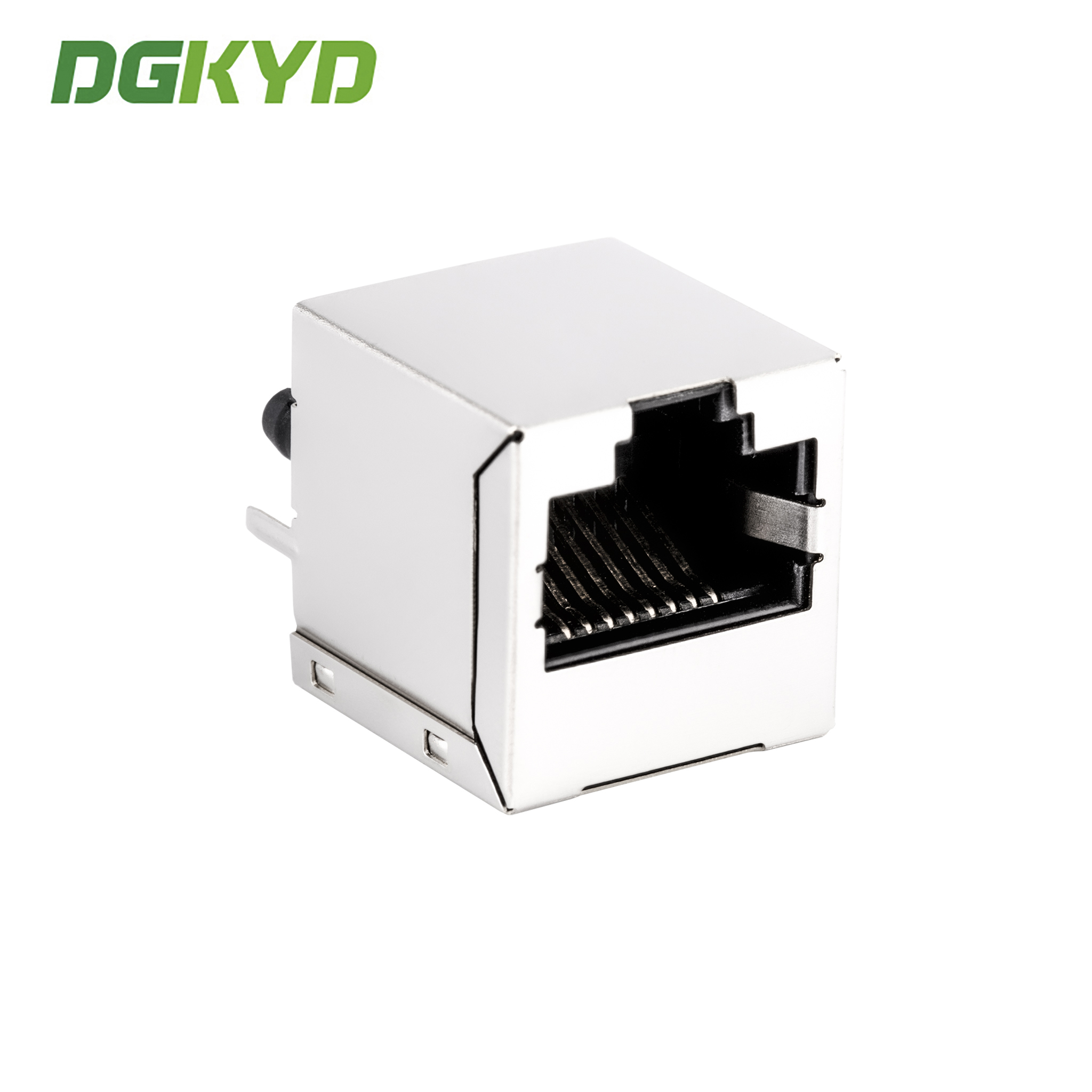

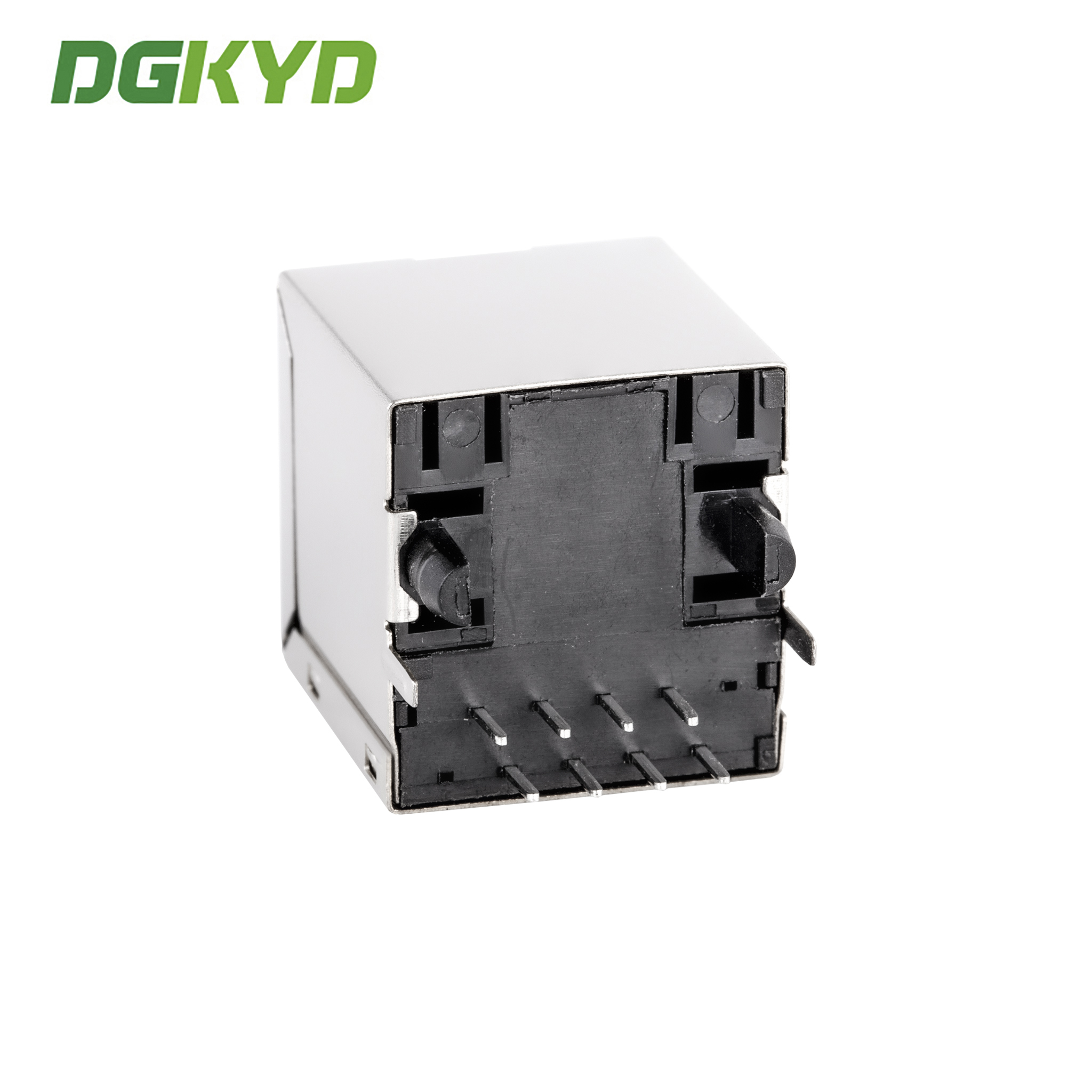

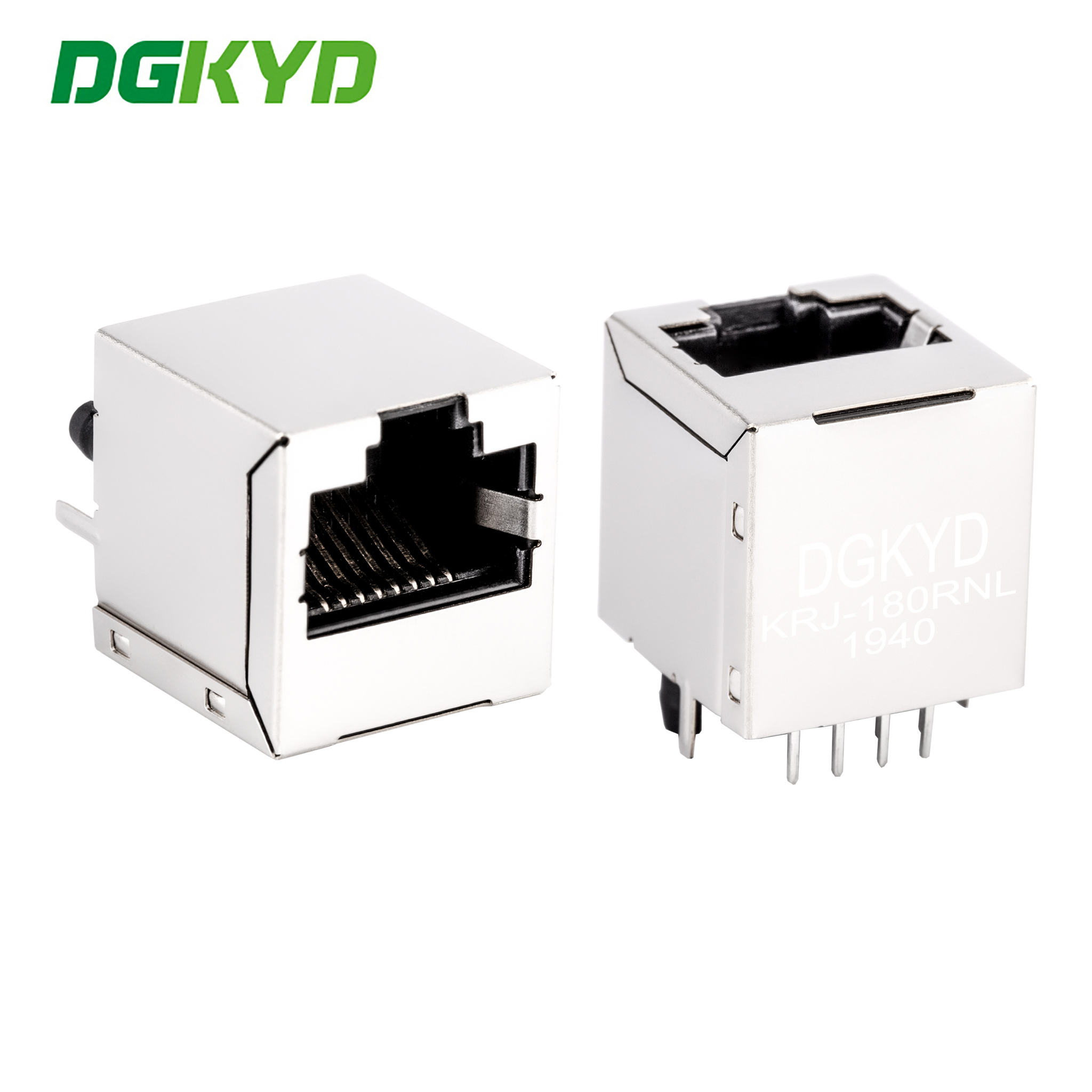

Product Images

Technical Specifications

Interface Type: RJ45 connector for 10/100/1000BASE-T Ethernet
Type: RJ45 with built-in magnetics
Working Frequency: High frequency with filtering and anti-interference characteristics
Working Temperature: -40°C to 85°C
Storage Temperature: -40°C to 85°C
Lead-Free Soldering: Wave soldering height up to 265°C

Manufacturing Capabilities

Complete RJ45 integrated circuit accessories series with manufacturer direct supply

Business Mode: Manufacturer
Delivery Time: Approximately two weeks for standard orders
Customization Options:
- LED indicator light (green, yellow, red, orange, blue, bi-color LED)
- Shield with EMI fingers or without
- Coil ratio of magnetic core
- Magnetics circuit diversification options
- Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
- Plastic housing material (PBT, PA46, PA9T, LCP)

Our products meet industry standards for electrical properties, mechanical dimensions, and environmental compliance. Your satisfaction is our primary service objective!

Frequently Asked Questions

Q: Are you a trading company or manufacturer?

A: We are a manufacturer. Welcome to visit our factory.

Q: What about your lead time?

A: For products in stock, delivery within 5-7 working days after payment. For customized and out-of-stock products, delivery time is confirmed based on order quantity.

Q: Can you provide samples? Are they free?

A: Yes. We typically provide 2-3 samples of standard products free for testing purposes.

Q: Can I put my own logo on it?

A: Yes. As a manufacturer with 11 years of OEM experience, we are fully capable of customizing products to your specifications.
