Custom Single Port 33.0mm Rj45 Lan Jack , 1000BASE micro rj45 connector PoE KRJ-339PWNL

Contact nu

Custom Single Port 33.0mm Rj45 Lan Jack , 1000BASE micro rj45 connector PoE KRJ-339PWNL

Min. bestelaantal :	1 stuk	Prijs :	Please contact us to get the latest price.
Verpakking Details :	Lade in doos	Levertijd :	10 dagen
Betalingscondities :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Levering vermogen :	100.000 stuks/dag

Plaats van herkomst:	Dongguan van China	Merknaam:	DGKYD
Certificering:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Modelnummer:	KRJ-339PWNL

Gedetailleerde informatie
Plastic materialen:	Geschatte UL 94V-0	Contactmateriaal:	Koperlegering
Bedrijfstemperatuur:	-40°C tot 85°C	Prestatie:	CAT6
Toepassingen:	schakelaar, zendontvanger, laptop, computer RJ45 enz.	Functie:	De MONTEERBARE rj45 hefboom van metaalpcb
Productnaam:	RJ45 Beschermde Schakelaar	Materiaal behuizing:	PBT-Polyester
Filter:	Met filter	Geslacht:	Vrouwelijk
Opslagtemperatuur:	-40°C~+85°C
Markeren:	Custom 33.0mm RJ45 LAN jack , 1000BASE micro RJ45 connector , PoE KRJ-339PWNL LAN jack

Productomschrijving

Custom Single Port 33.0mm RJ45 LAN Jack

1000BASE micro RJ45 connector with PoE support - Model KRJ-339PWNL

Product Documentation

Technical Parameters

Parameter	Specification
Part Number	KRJ-339PWNL
Product Type	Connector-Modular
Connector Style	Jack
Jack Type	RJ45
Latch Style	Standard TAB-UP
Filter	With Filter
LED Option	With LED (Green/Orange-Yellow)
Panel Stops	With Panel Stops
Shielded	With metal shield
Port Configuration	Single Port
PCB Mounting Orientation	Side Entry (Right Angle)
Contact Plating	Gold 6u
Housing Material	PBT Polyester (Black)
UL Flammability Rating	UL 94V-0

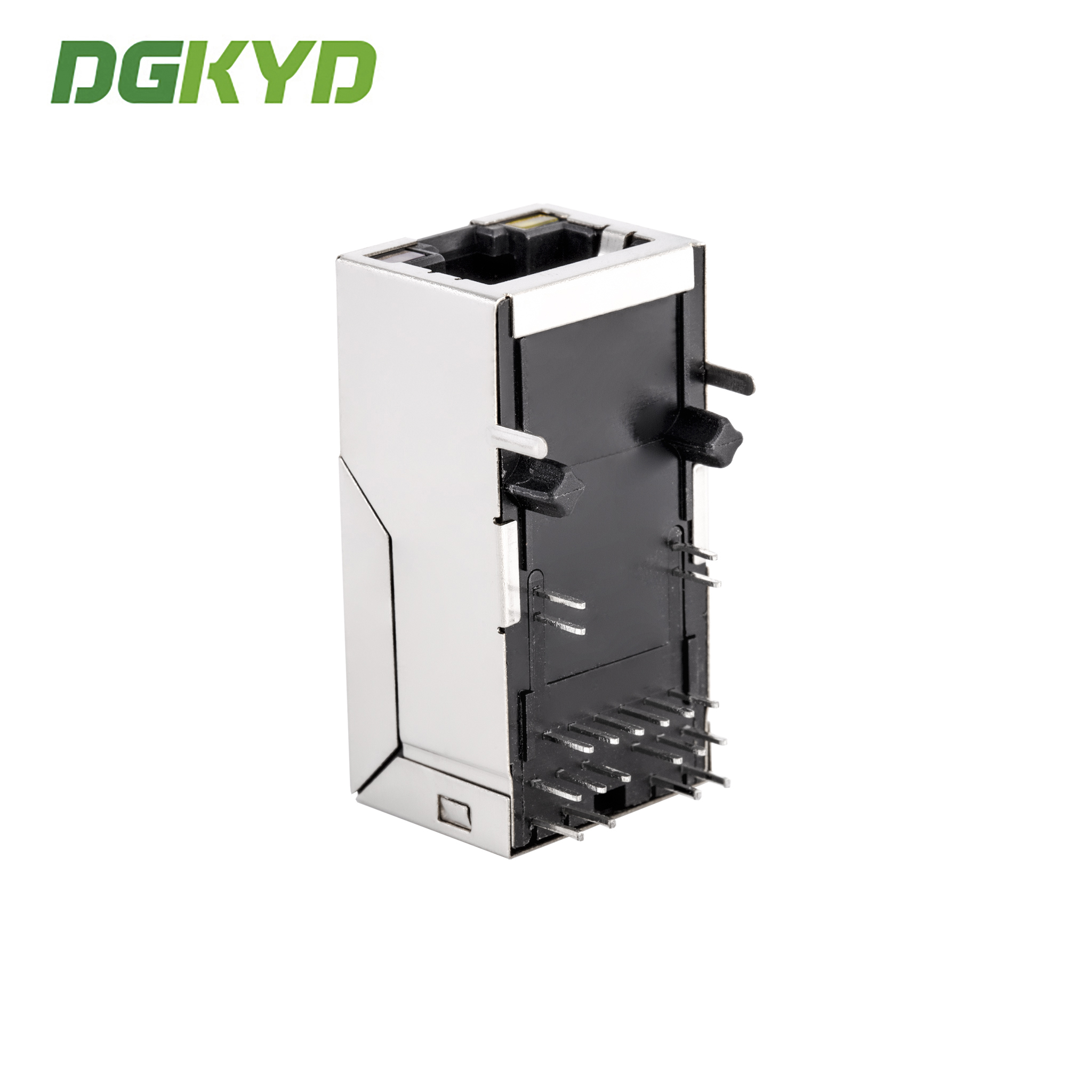

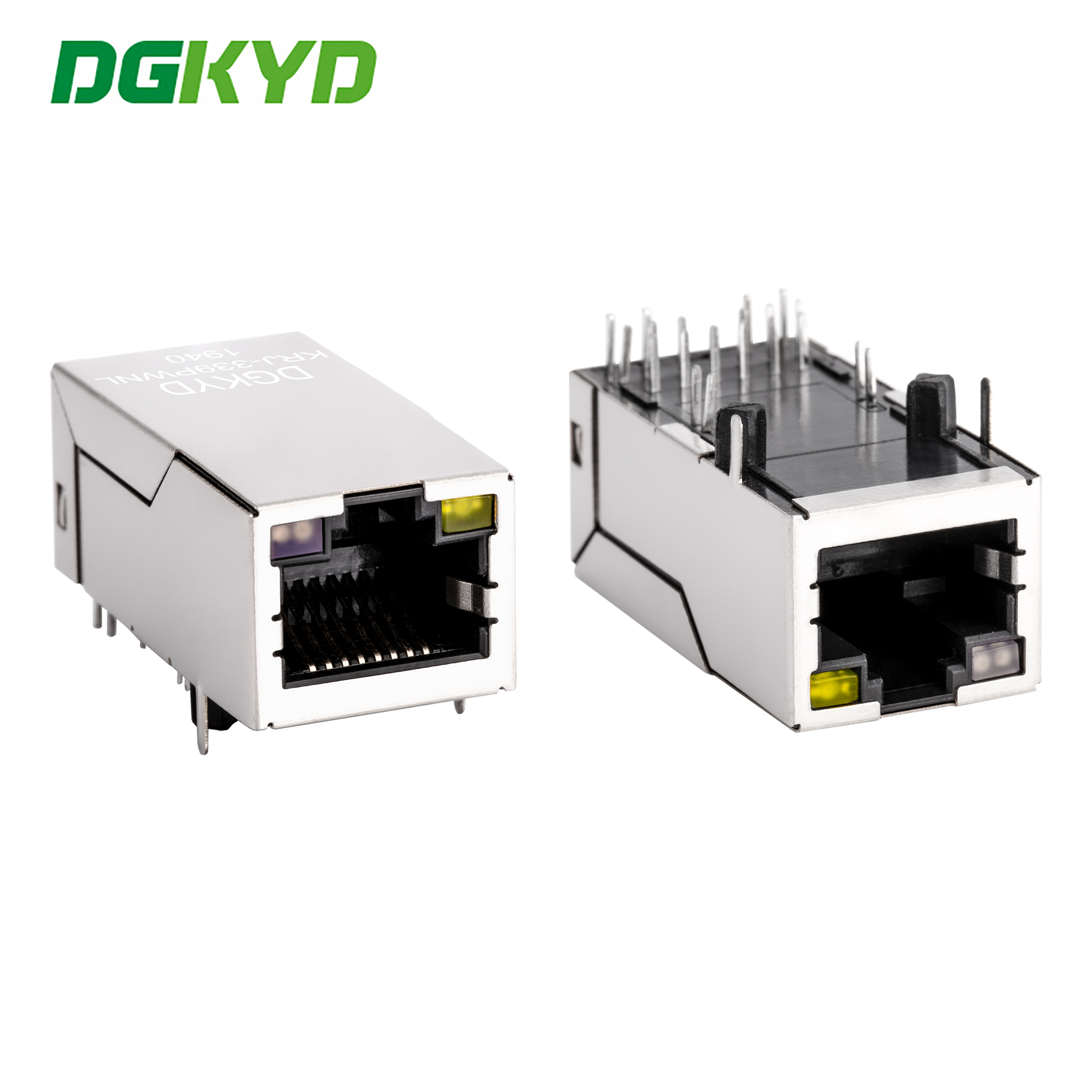

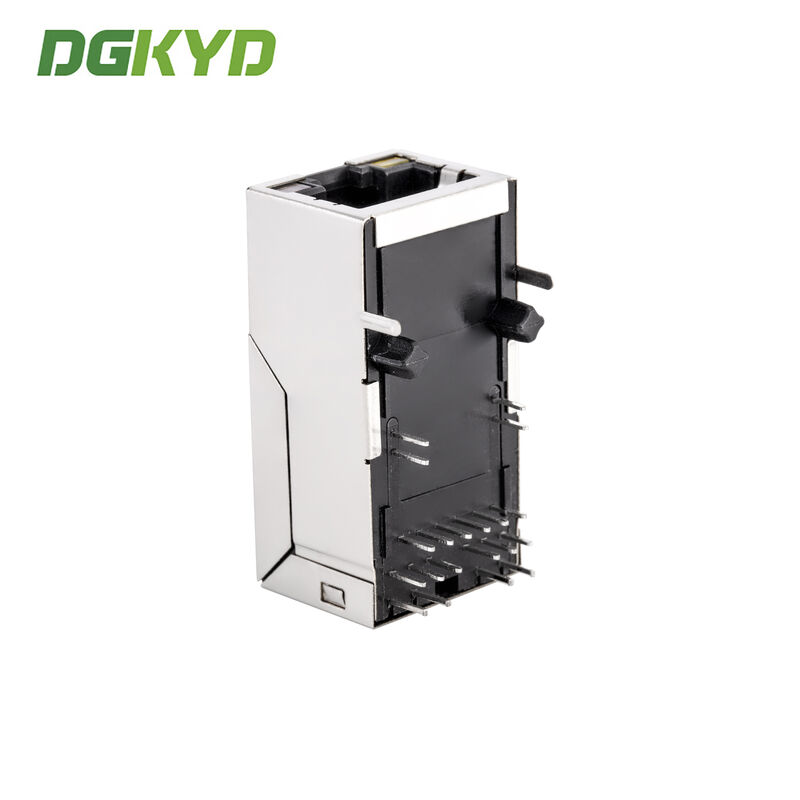

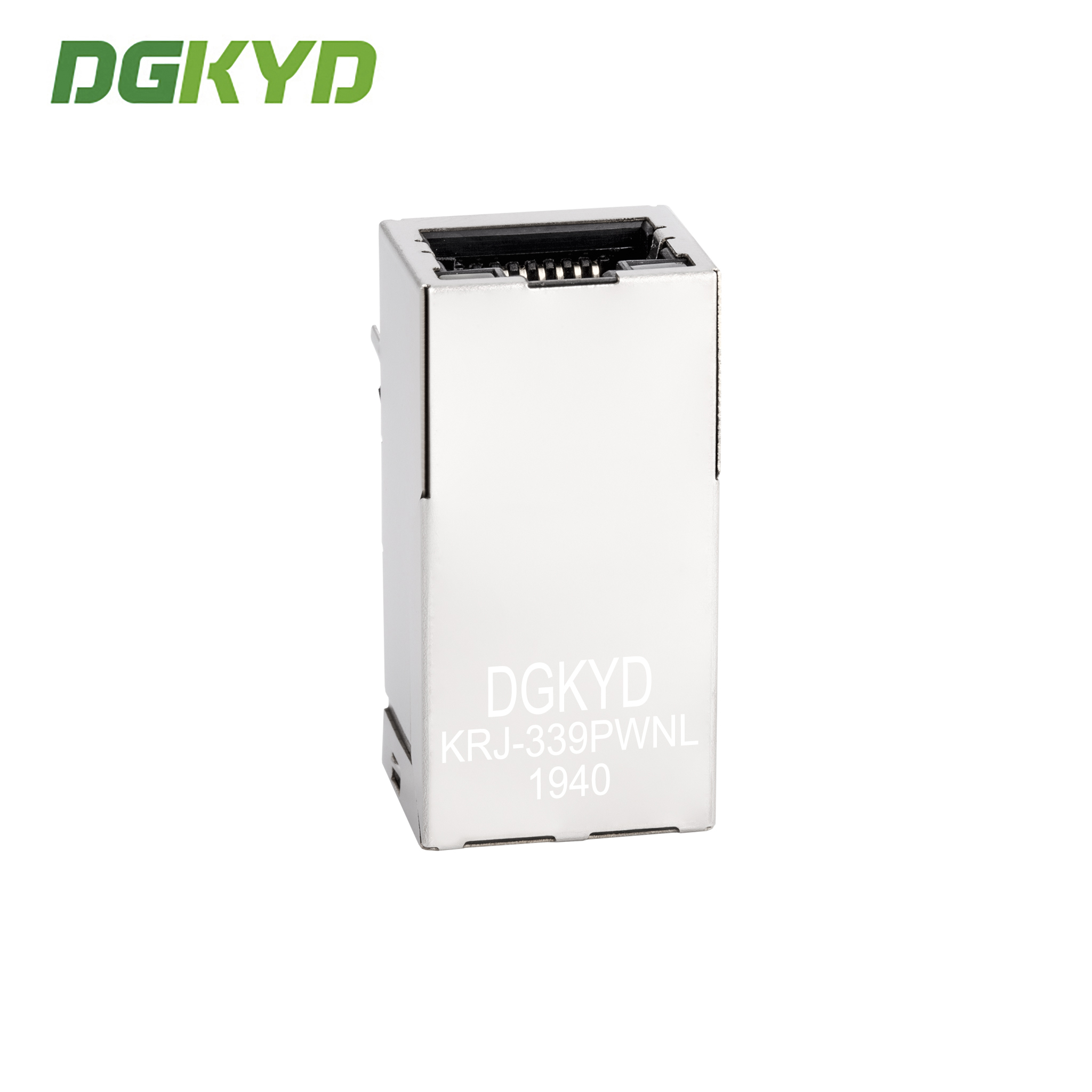

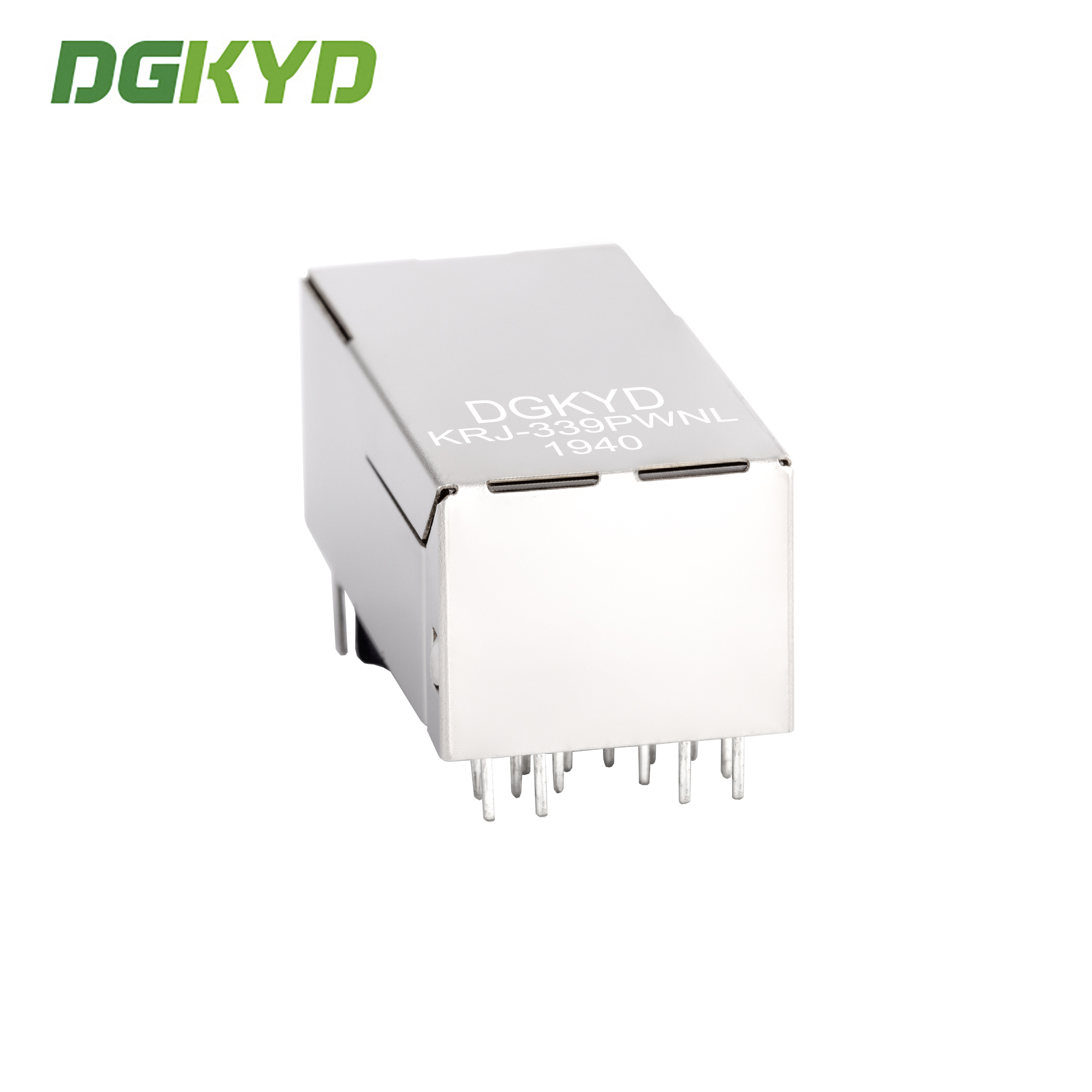

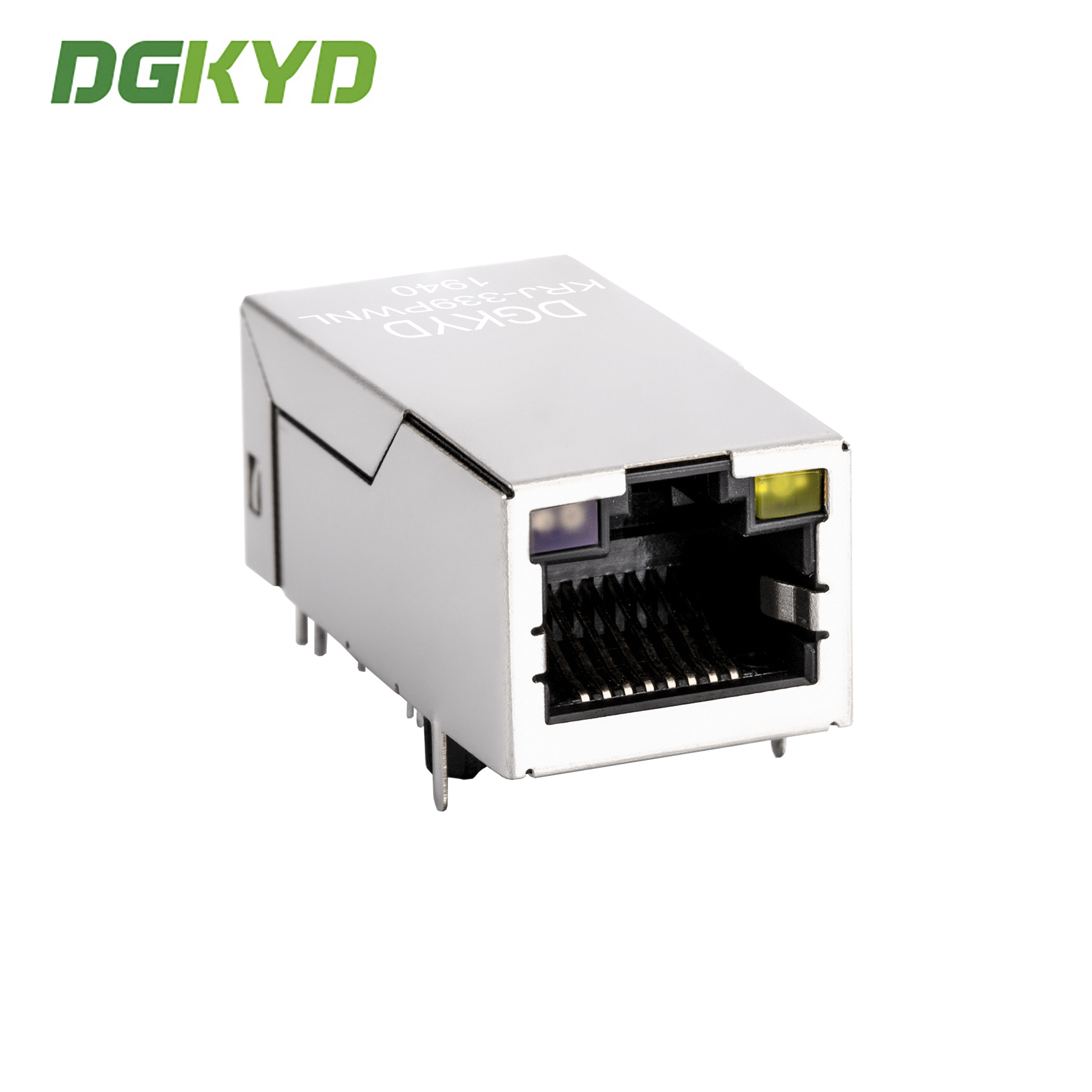

Product Images

Technical Specifications

Interface Type: RJ45 connector for 10/100/1000BASE-T Ethernet
Type: RJ45 with built-in magnetics
Working Frequency: High frequency with filtering and anti-interference characteristics
Working Temperature: -40°C to 85°C
Storage Temperature: -40°C to 85°C
Lead-Free Soldering: Wave soldering height up to 265°C

Manufacturing Capabilities

RJ45 full series of integrated circuit accessories, manufacturer direct supply

Business Mode: Manufacturer
Delivery Time: Approximately two weeks for standard orders
Customization Options:
- LED indicator light (green, yellow, red, orange, blue, bi-color LED)
- Shield with EMI fingers or without
- Coil ratio of magnetic core
- Magnetics circuit diversification options
- Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
- Plastic housing material (PBT, PA46, PA9T, LCP)

Our products meet industry standards for electrical properties, mechanical dimensions, and environmental compliance. Your satisfaction is our primary service objective!

Frequently Asked Questions

Are you a trading company or manufacturer?

We are a manufacturer. Welcome to visit our factory.

What about your lead time?

For products in stock, delivery within 5-7 working days after payment. For customized and out-of-stock products, delivery time is confirmed based on order quantity.

Can you provide samples? Are they free?

Yes. We typically provide 2-3 samples of standard products free for testing purposes.

Can I put my own logo on it?

Yes. As a manufacturer with 11 years of OEM experience, we are fully capable of customizing products to your specifications.
