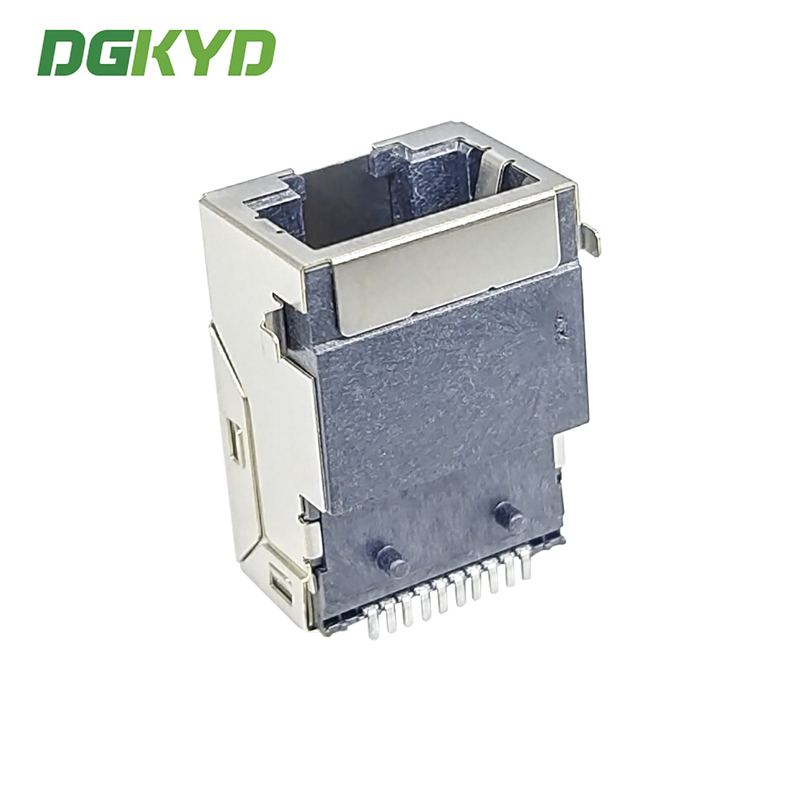

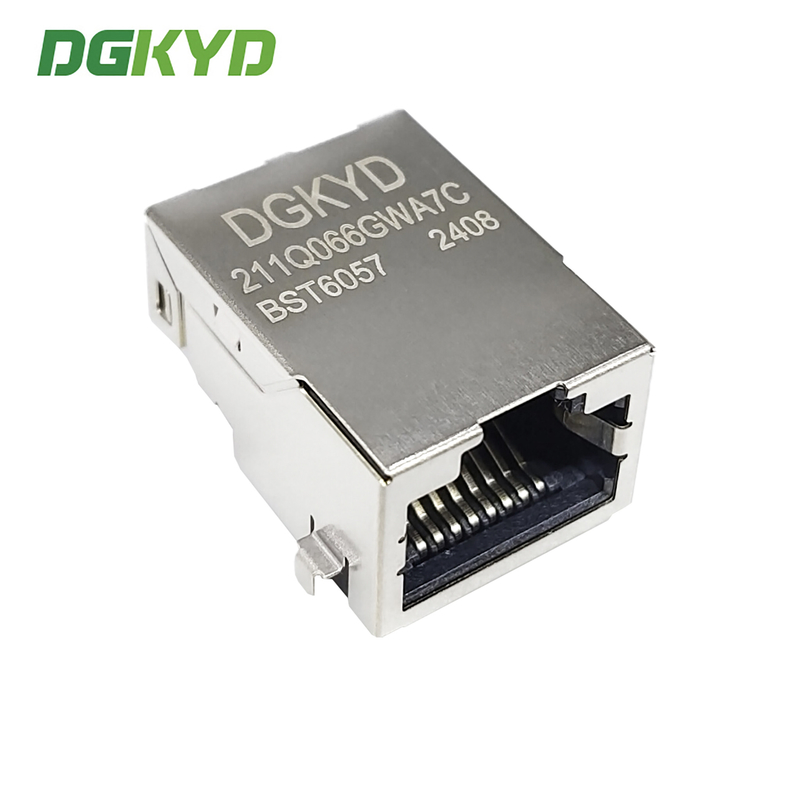

DGKYD211Q066GWA7CBST6057 RJ45 1000base Integrated Connector Patch Network Interface Ethernet Filtering Without Light SMD

Min. bestelaantal :	1 stuk	Prijs :	Please contact us to get the latest price.
Verpakking Details :	Tray in karton	Levertijd :	10 dagen
Betalingscondities :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Levering vermogen :	100 000 stuks per dag

Plaats van herkomst:	DongGuan van China	Merknaam:	DGKYD
Certificering:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Modelnummer:	DGKYD211Q066GWA7CBST6057

Gedetailleerde informatie
Toepassing::	Ethernet	Prestatiesnelheid::	0/100/1000BASE-T
PCB zetten op::	Rechte hoek SMD	Standaard:	IEEE802.3ab
Contactplating:	het plateren van 6u glod	Sluiting:	TAB-omhoog
Speld:	10 pin	filter:	Met Filter
Huismateriaal:	LCP-Zwarte	Bedrijfstemperatuur:	-40°C~+85°C
Markeren:	RJ45 Integrated Connector Without Light , RJ45 1000base Integrated Connector , RJ45 Patch Network Interface

Productomschrijving

DGKYD211Q066GWA7CBST6057 RJ45 1000base integrated connector patch network interface Ethernet filtering without light SMD

Product Specification Document

DGKYD211Q066GWA7CBST6057.pdf

Part Number	DGKYD211Q066GWA7CBST6057	Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China	Certification	ISO9001/ISO14001/CE /UL/FCC/Reach/RoHS
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	Down&Up
Filter	With Filter	LED Option	Without LED
LED Color	No	Panel Stops	With Panel Stops
Shielded	Yes	Applies To	Printed Circuit Board
Performance Speed	10/100/1000 BASE-T	Grounding Options	Panel Ground and PCB Ground
Port Configuration	single ports	Number of Positions	10
Jack Configuration	1 x 1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 6u/15u/30u/50u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	LCP Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

Packaging Type	Tray
Panel Mount	Spring
Plating min - Mating	0.051µm (Au), 1.016µm (PdNi)
Ports	1
Positions / Loaded Contacts	10/8
Surface Mount Compatible (SMC)	No
Temperature Range - Operating	-40°C to +85°C
Termination Interface: Style	SMD

Specifications

Meets TIA-568 CAT5E requirement
Conforms to FCC rules and regulations part 68
High temperature thermoplastic housing
Voltage rating: 150V AC
Current rating: 1.5A
One tri-color LED/ port
750 cycles durability
Press fit footprint

Applications

Wireless base stations
Switches, hubs and routers
Networking devices
Industrial controls
Other general 1 Gbps Ethernet data applications
