Single Countersunk 4.2 SMT RJ45 Connector Jack With Shield DGKYDCB421188AB1W6SB

Min. bestelaantal :	Onderhandelbaar	Prijs :	Onderhandelbaar
Verpakking Details :	Tray in karton	Levertijd :	7-14 dagen
Betalingscondities :	L/C, D/A, D/P, T/T, Western Union, MoneyGram	Levering vermogen :	60000 stuks per dag

Plaats van herkomst:	DongGuan van China	Merknaam:	DGKYD
Certificering:	RoHS/CE/FCC/CE/ISO9001/ISO14001	Modelnummer:	DGKYDCB421188AB1W6SB

Gedetailleerde informatie
Product Name:	RJ45-Schakelaar Jack With Shield	Type aansluiting:	- Jack.
Toepassing:	PC, router, USB-hub netwerk RJ45 enz.	Geslacht:	Vrouwelijk
Transformer:	RJ45 zonder Transformator	HOOGTEprofiel:	extra laag profiel
Markeren:	Countersunk 4.2 SMT RJ45 Connector , RJ45 Connector Jack With Shield , Single RJ45 Connector Jack

Productomschrijving

RJ45 connector single countersunk 4.2 SMD With shield With LED 8p8c

Paramters

ATTRIBUTE	ATTRIBUTE VALUE
TEMPERATURE	-40 to +85℃
GROUNDING OPTIONS	Panel Ground and PCB Ground
SHIELD PLATING MATERIAL	NICKEL
SHIELD EMI TABS	YES
SHIELD	METAL SHIELD
ROHS COMPLIANT	YES
PANEL STOP	NONE
PCB MOUNT ANGLE	SIDE ENTRY
PACKAGE	SMT
CONNECTOR & CONTACT TERMINAATES TO	Printed Circuit Board
NUMBER OF PORTS	1X1
NUMBER OF CONTACTS	8
LED OPTION	L-Yellow / R-Green
LATCH ORIENTATION	LATCH DOWN
HOUSING MATERIAL	LCP UL94V-0
CONTACT MATING AREA PLATING	GOLD FLASH PLATING
CONNECTOR TYPE	RJ45
CONNECTOR MATERIAL COLOR	BLACK

Drawing

Single Countersunk 4.2 SMT RJ45 Connector Jack With Shield DGKYDCB421188AB1W6SB 0

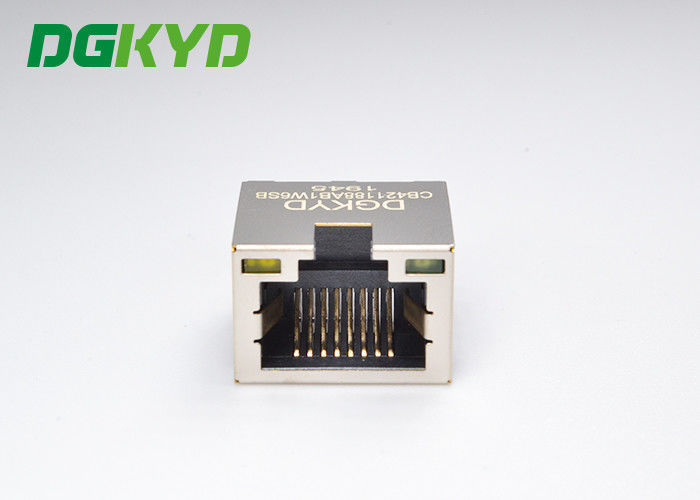

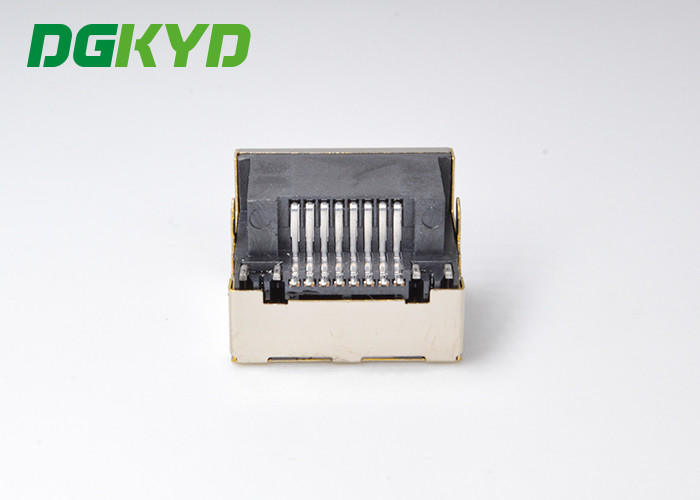

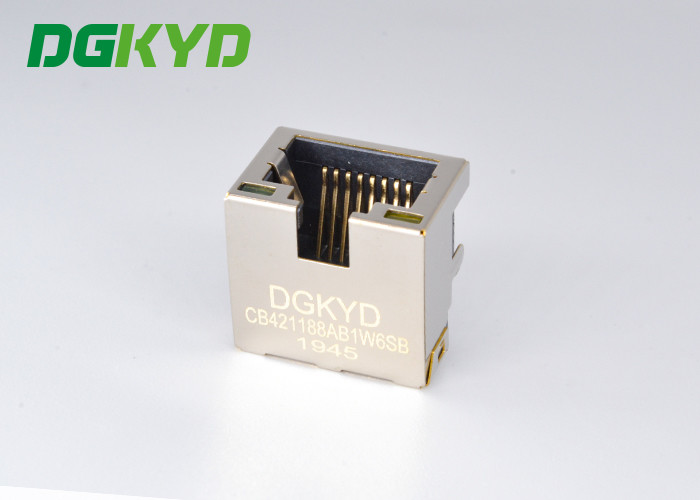

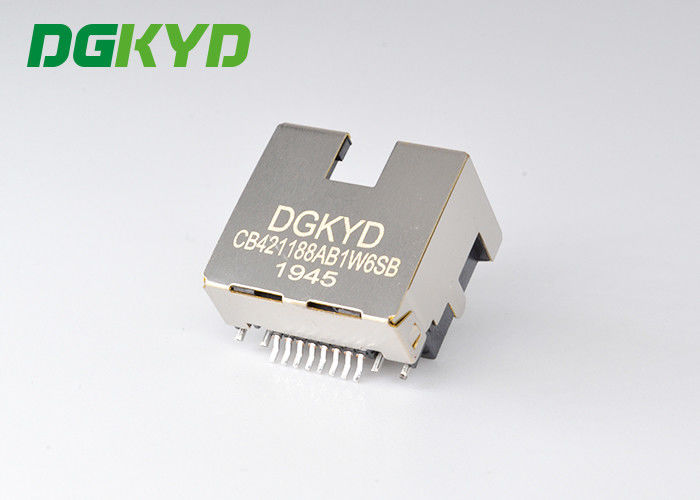

Pictures

Single Countersunk 4.2 SMT RJ45 Connector Jack With Shield DGKYDCB421188AB1W6SB 1
