4 Ports Giga Ethernet Connector Rj45 Modular Jack,Industrial network port 1000 BASE-TX KRJ-4339PGYENL

Contact nu

4 Ports Giga Ethernet Connector Rj45 Modular Jack,Industrial network port 1000 BASE-TX KRJ-4339PGYENL

Min. bestelaantal :	1 stuk	Prijs :	Please contact us to get the latest price.
Verpakking Details :	Lade in doos	Levertijd :	10 dagen
Betalingscondities :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Levering vermogen :	100.000 stuks/dag

Plaats van herkomst:	Dongguan van China	Merknaam:	DGKYD
Certificering:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Modelnummer:	KRJ-4339PGYENL

Gedetailleerde informatie
Neem contact op met Plateren:	6U goud	Positieaantal:	4 posities
RJ45 geschikt:	voor CAT5&6 Ethernet-kabel of UTP	Sollicitatie:	lan, brug, PC, router, usb hubnetwerk rj45 en alle ethernetapparaten
Geslacht:	Vrouwelijk	Productnaam:	De Schakelaar van RJ45 Ethernet
Beplating:	GLOD PLATATION 6U/15U/30U/50U	LED-kleur:	Groen/geel
Materiaal behuizing:	PBT-ZWARTE	Bedrijfstemperatuur:	-40°C~+85°C
Opslagtemperatuur:	-40°C~+85°C
Markeren:	4 port Giga Ethernet RJ45 jack , industrial network port 1000BASE-TX , RJ45 modular jack with warranty

Productomschrijving

4 Ports Giga Ethernet Connector RJ45 Modular Jack

Industrial network port 1000 BASE-TX KRJ-4339PGYENL

Product Overview

Part Number: KRJ-4339PGYENL
Product Documentation (PDF)

Technical Parameters

Parameter	Specification
Part Number	KRJ-4339PGYENL
Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular
Connector Style	Jack
Jack Type	RJ45
Connector Type	Modular Jack
Latch Style	Standard
Latch	TAB-UP
Filter	With Filter
LED Option	With LED
LED Color	Green/Yellow
Panel Stops	With Panel Stops
Shielded	With metal shield
Applies To	Printed Circuit Board
Port Configuration	1X4 Port
Number of Positions	12
Jack Configuration	1X4
Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel
PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 6u
Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel
PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit
Board Lock	With/Without Board Lock
Housing Material	PBT Polyester
Housing Color	Black
Housing Material Temperature	Standard
UL Flammability Rating	UL 94V-0

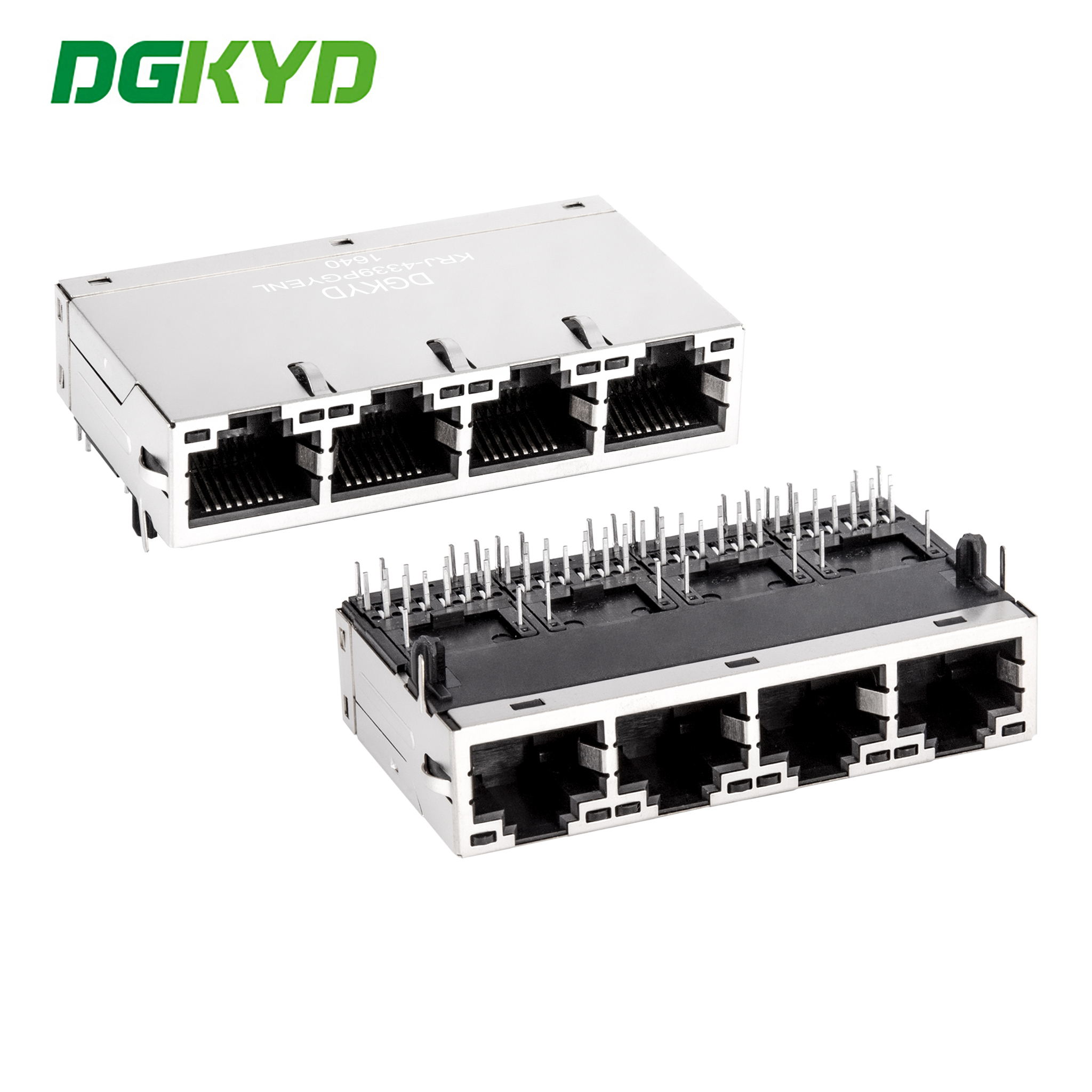

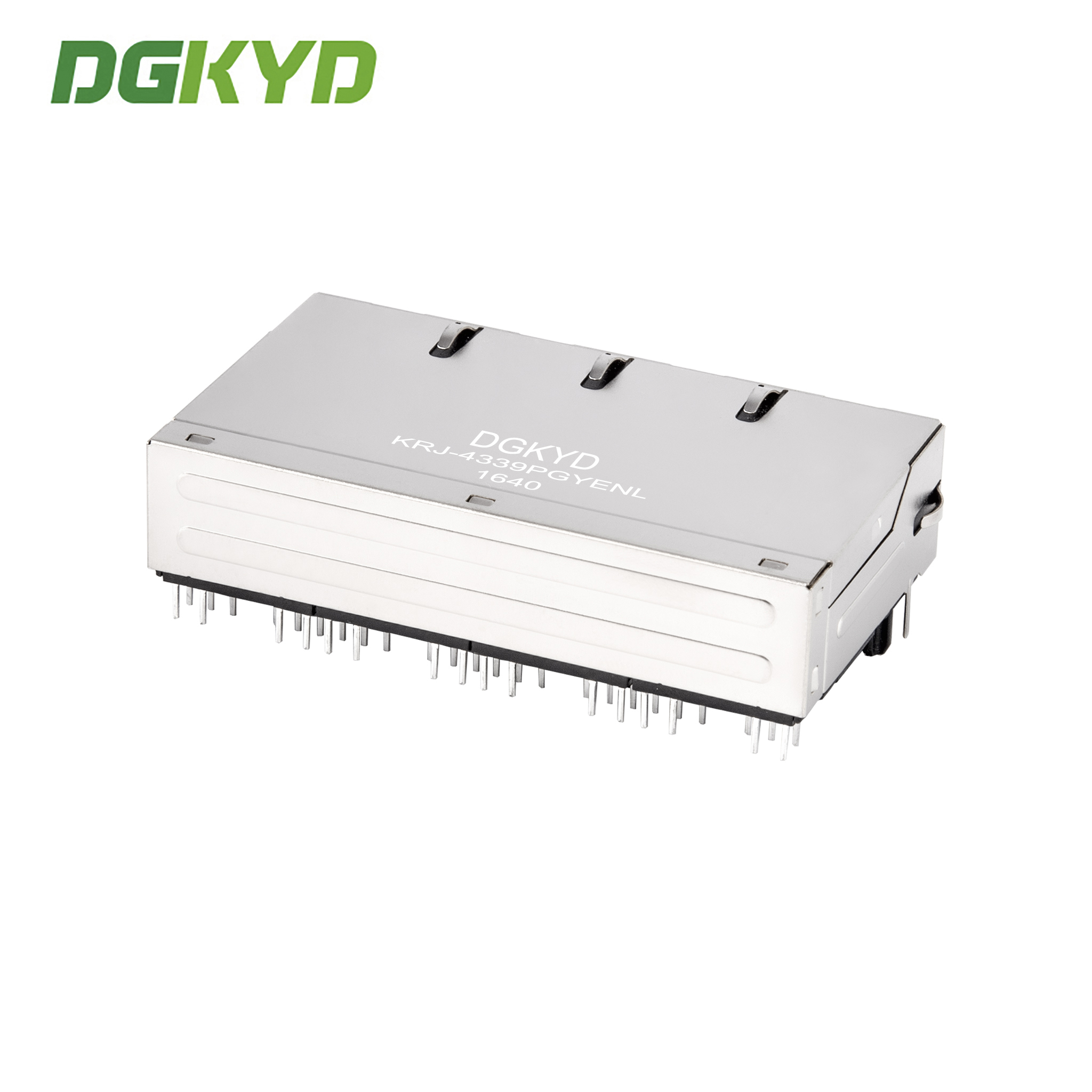

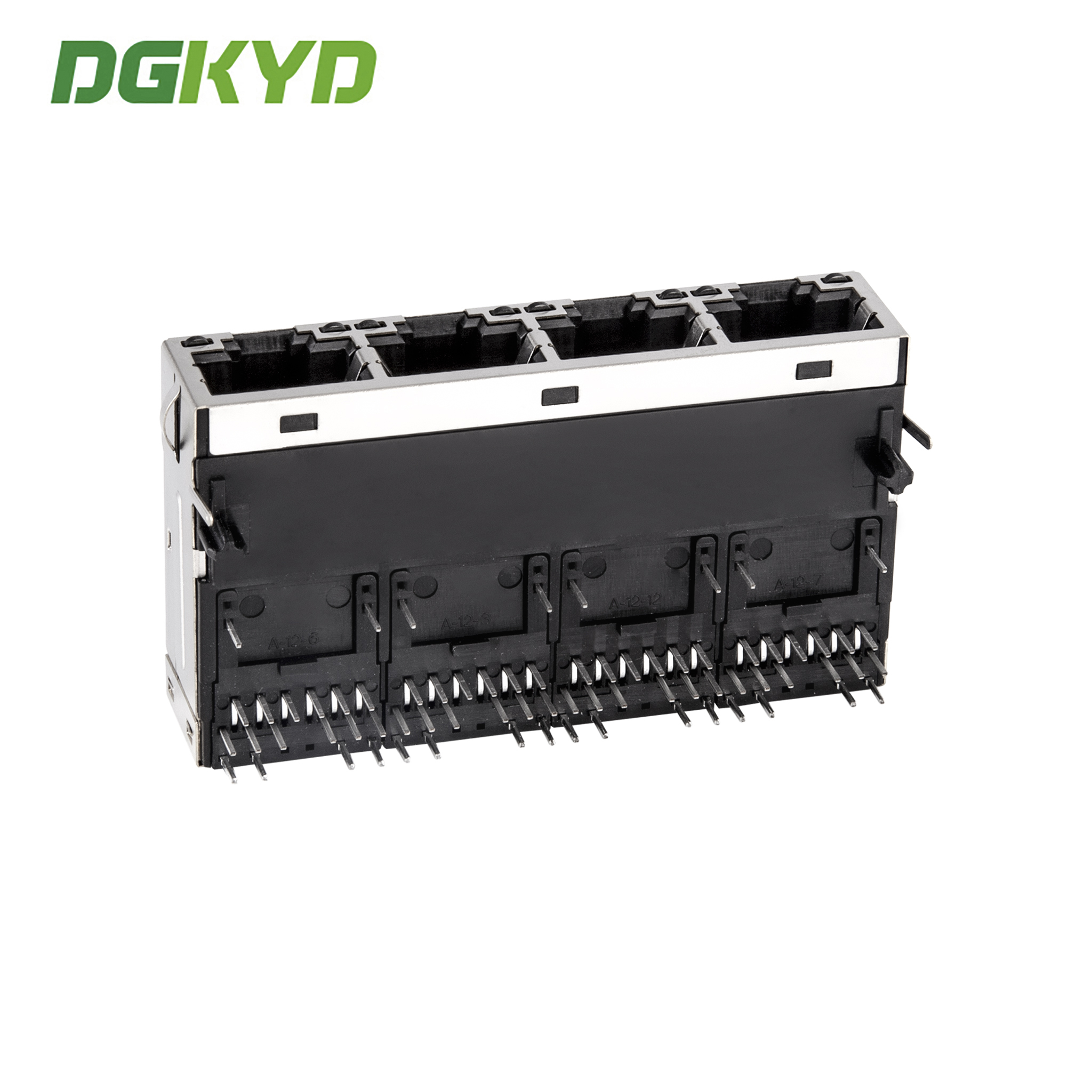

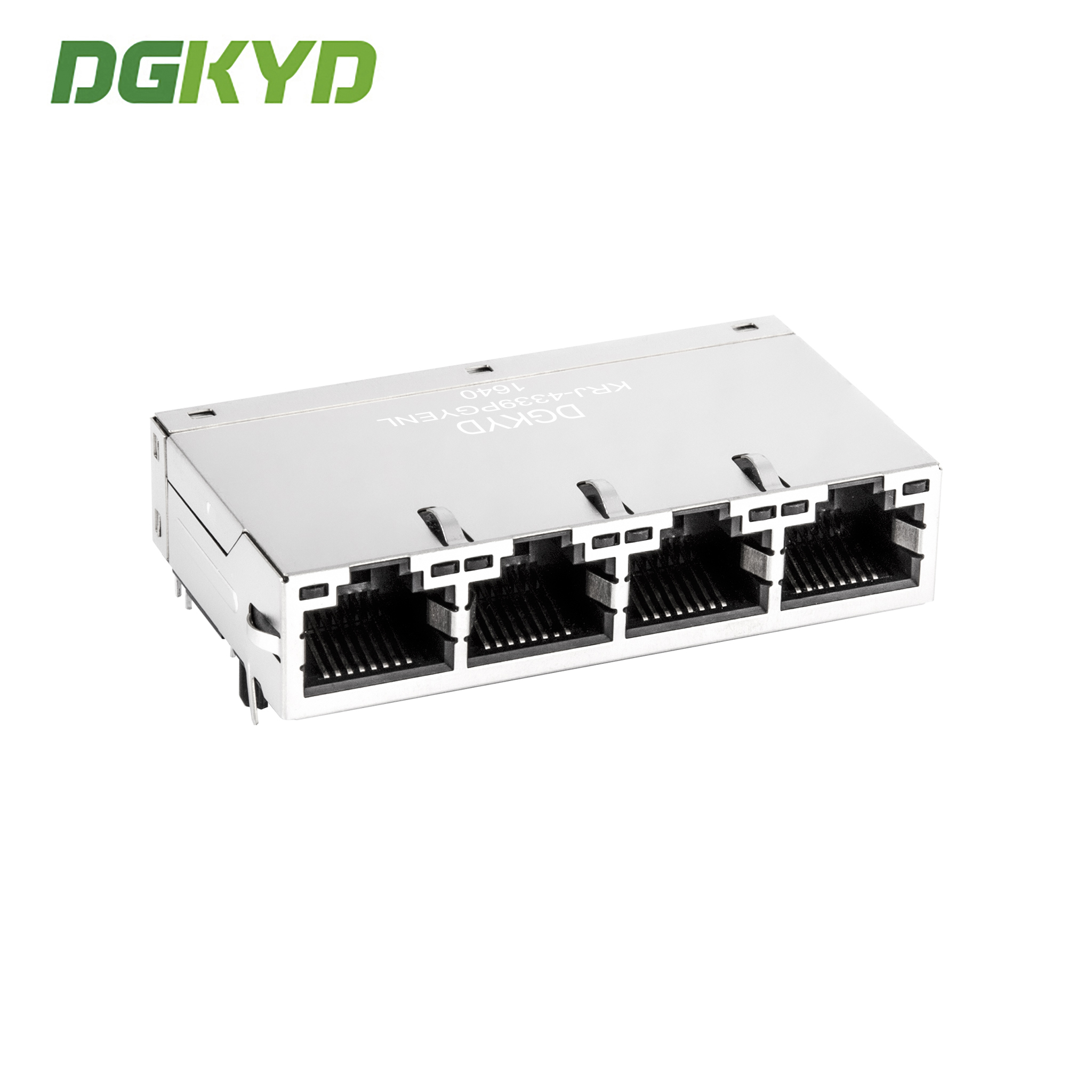

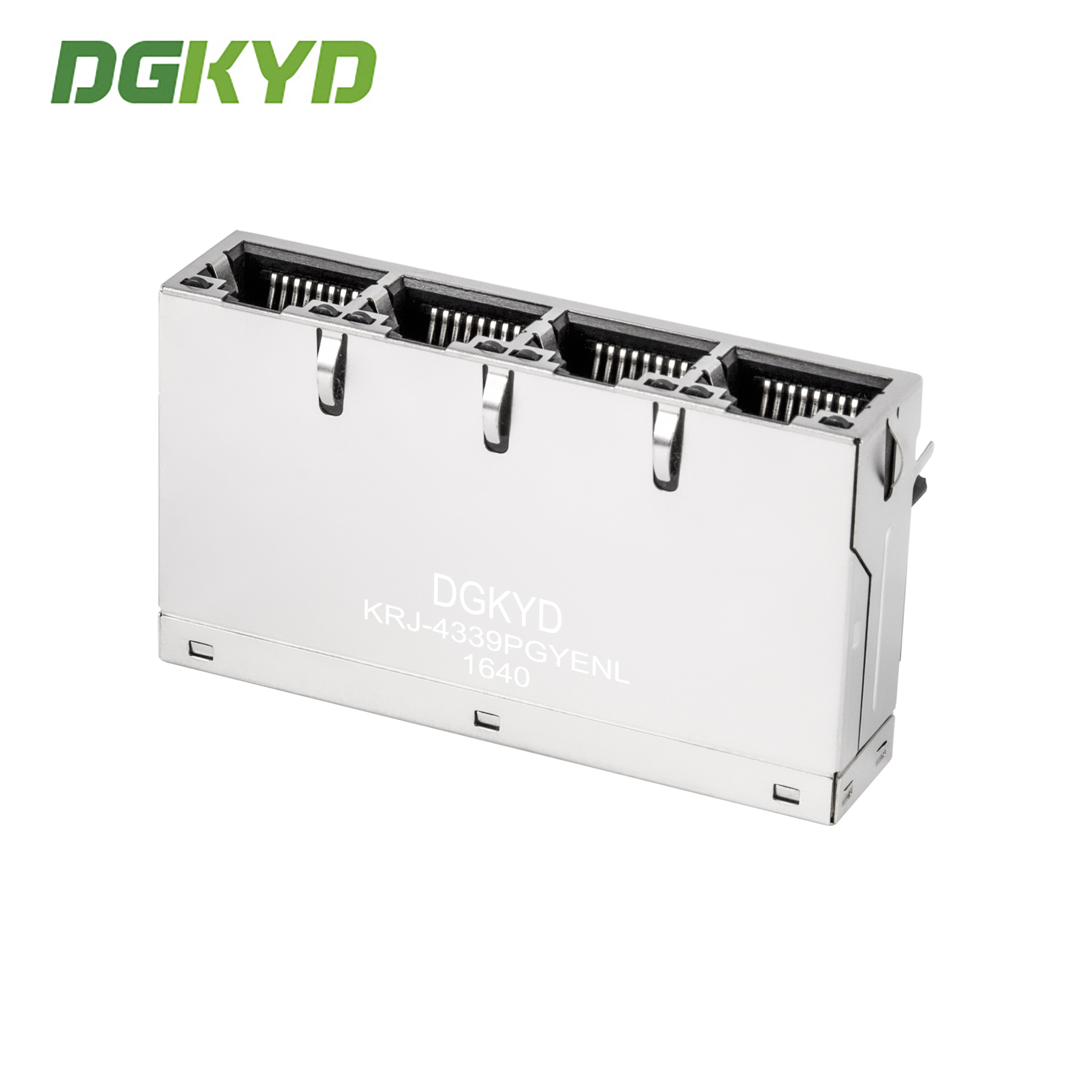

Product Images

Technical Specifications

Interface Type: RJ45 connector for 10/100/1000BASE-T Ethernet
Type: RJ45 with built-in magnetics
Working Frequency: High frequency with filtering and anti-interference characteristics
Working Temperature: -40°C to 85°C
Storage Temperature: -40°C to 85°C
Lead-Free Soldering: Wave soldering height up to 265°C

Manufacturing Capabilities

RJ45 full series of integrated circuit accessories, manufacturer direct supply

Business Mode: Manufacturer
Delivery Time: Approximately two weeks for standard orders
Customization Options:
- LED indicator light (green, yellow, red, orange, blue, bi-color LED)
- Shield with EMI fingers or without
- Coil ratio of magnetic core
- Magnetics circuit diversification options
- Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
- Plastic housing material (PBT, PA46, PA9T, LCP)

Our products meet industry standards for electrical properties, mechanical dimensions, and environmental compliance. Your satisfaction is our primary service objective!

Frequently Asked Questions

Are you a trading company or manufacturer?

We are a manufacturer. Welcome to visit our factory.

What about your lead time?

For products in stock, delivery within 5-7 working days after payment. For customized and out-of-stock products, delivery time is confirmed based on order quantity.

Can you provide samples? Are they free?

Yes. We typically provide 2-3 samples of standard products free for testing purposes.

Can I put my own logo on it?

Yes. As a manufacturer with 11 years of OEM experience, we are fully capable of customizing products to your specifications.
