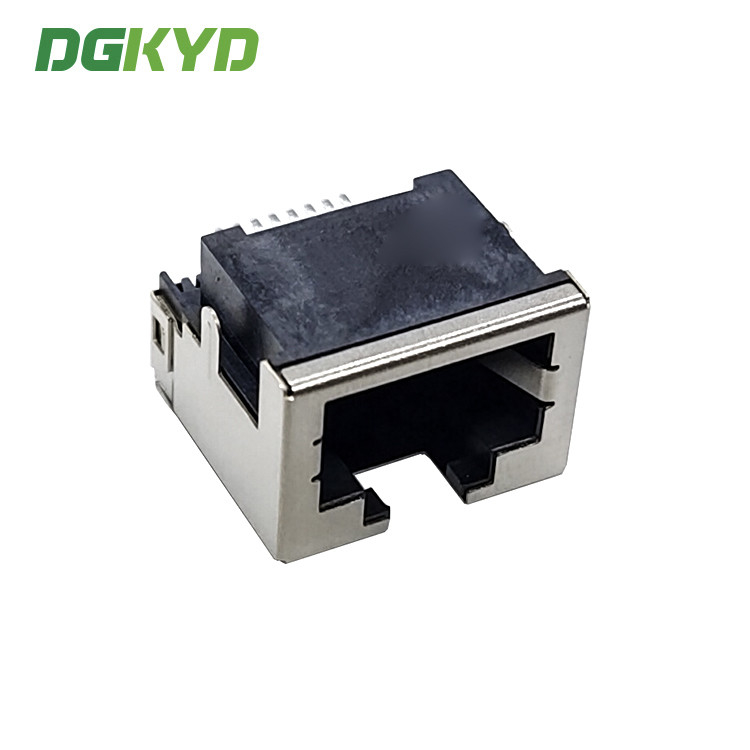

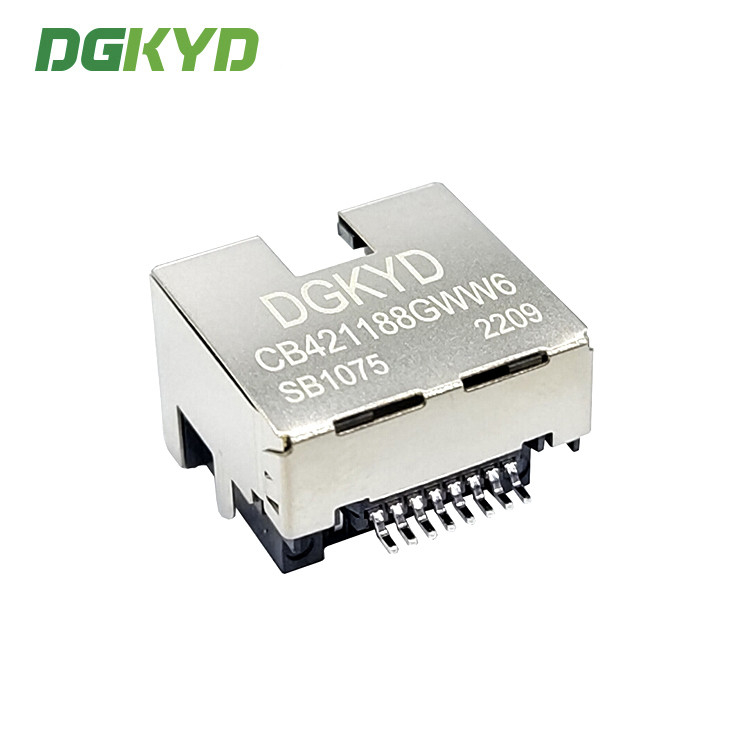

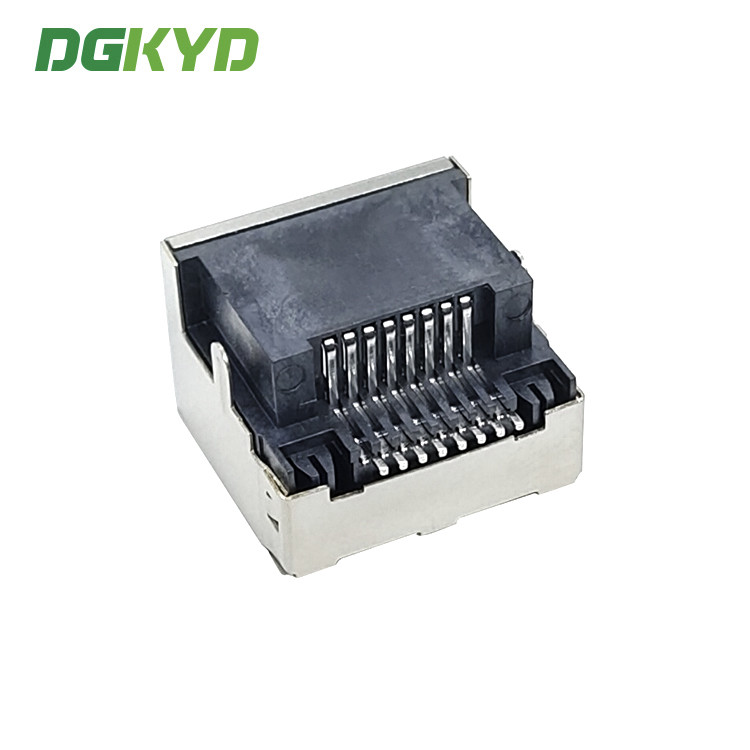

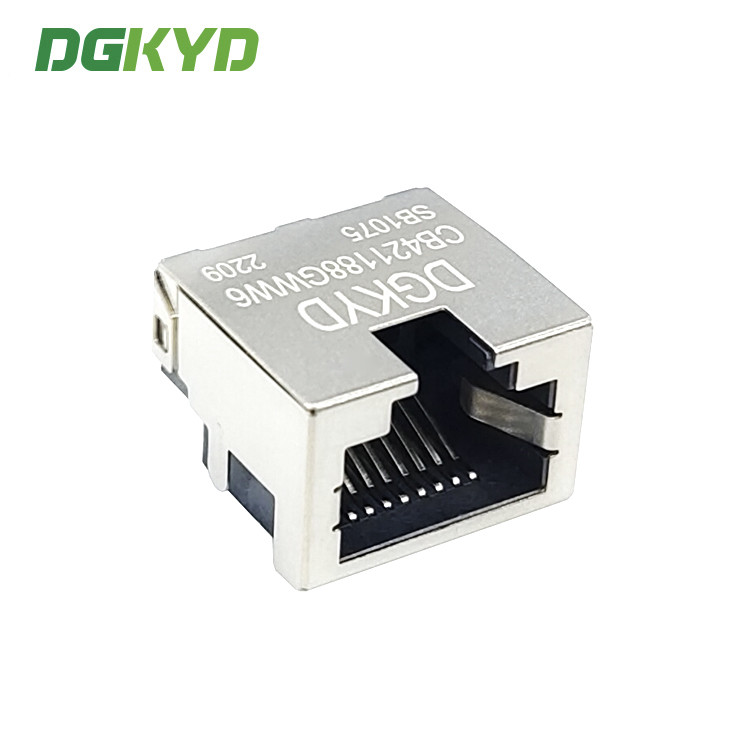

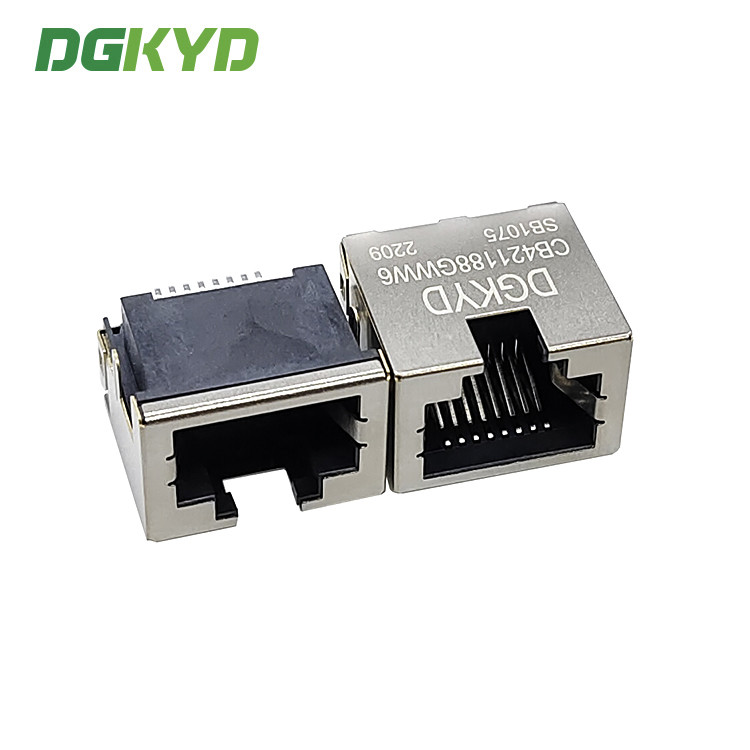

SMD Sinking Plate Type 8P8C Modular Female RJ45 LED Connector DGKYDCB421188GWW6SB1075

Min. bestelaantal :	Onderhandeling	Prijs :	Please contact us to get the latest price.
Verpakking Details :	Dienblad 1080 in Karton	Levertijd :	20 dagen
Betalingscondities :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Levering vermogen :	100 000 stuks per dag

Plaats van herkomst:	DongGuan van China	Merknaam:	DGKYD
Certificering:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Modelnummer:	DGKYDCB421188GWW6SB1075

Gedetailleerde informatie
Artikelnummer:	SMD Ethernet RJ45 connector	Huisvesting:	LCP
Aantal Kernen:	8	LED Kleur:	- Nee.
Aantal pinnen:	8	Merken:	DGKYD
Contactplating:	G/Fu gloedplatering	Standaardspanning:	125 V
Bergingstemperatuur:	- 40 ℃ ~ 85 ℃	Contactweerstand:	30 milliohm Max
Sluiting:	TAB-omhoog
Markeren:	Modular Female RJ45 LED Connector , SMD Sinking Plate RJ45 LED Connector , Sinking Plate Type RJ45 Connector

Productomschrijving

sinking plate type rj45 8P8C female led connector rj45 modular jack DGKYDCB421188GWW6SB1075

Parameters

Part Number	DGKYDCB421188GWW6SB1075	Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China	Certification	RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-up
Filter	Without Filter	LED Option	Without LED
LED Color	No	Panel Stops	With Panel Stops
Shielded	Yes	Applies To	Printed Circuit Board
Performance Speed	10/100/1000 BASE-T/TX	Suitable for welding type	Reflowsolding(Alternative).
Port Configuration	single Ports	Number of Positions	8
Jack Configuration	1X1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 6u/15u/30u/50u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	WithWithout Board Lock
Housing Material	LCP Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

Drawings

SMD Sinking Plate Type 8P8C Modular Female RJ45 LED Connector DGKYDCB421188GWW6SB1075 0

FAQ:

1. Q: Are you trading company or manufacture?
A: We are manufacture. Welcome to our factory.

2. Q: What about your lead time?
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

3. Q: Can you provide samples? Are they free?
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

4. Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
